Home > Products > WS2 Micro Switch 10A Momentary 12V Waterproof Limit Switch

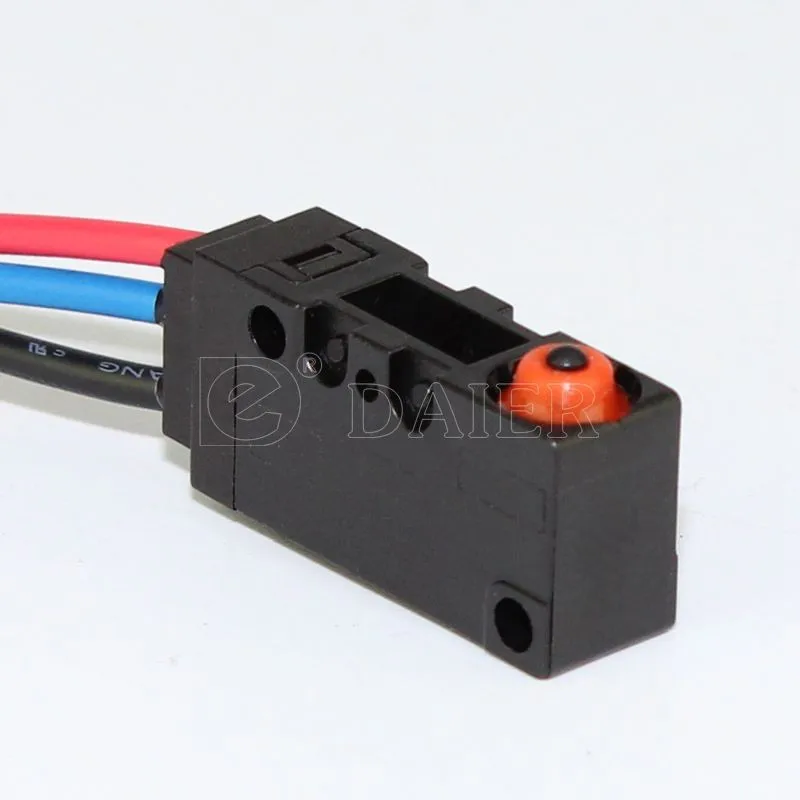

WS2 Micro Switch 10A Momentary 12V Waterproof Limit Switch
Click on the image to view the original image
Product： views：4WS2 Micro Switch 10A Momentary 12V Waterproof Limit Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
WS2-Z2-W200200
Max. Current:
10A
Max. Voltage:
250VAC
Operating Temperature:
T85℃, -25℃~+75℃
Protection Level:
IP67
Item:
WS2-Z2-W200200
Rating:
10A 250VAC
Housing Color:
Black
Lever:
Long Lever
Wire Length:
200 MM
Operating Force:
0.5N/1N/1.5N/2N/3N
Switch Function:
SPDT
Certification:
TUV
Electrical Life:
≥10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
31X17X2 cm
Gross weight per batch:
2.0 kg
Package Type:
50pcs/box,5000pcs/carton of WS2 Micro Switch 10A Momentary 12V Waterproof Limit Switch
Lead Time:
Quantity(Piece)1 - 5000>5000
Est. Time(days)10To be negotiated
Product Description
Item
WS2 Micro Switch 10A Momentary 12V Waterproof Limit Switch
Rating
10A 250VAC
Circuit
SPDT   limit waterproof micro switch with wire
Housing Color
Black
Actuator Forms
0:No Lever

A1/1:Short Lever

A2/2:Long Lever

A3/3:Middle Lever

A4/4:Short Roller

A5/5:Long Roller

A6/6:Arc Lever
Operating Force
050:0.5N

100:1N

150:1.5N

200:2N

300:3N

Note:If it is not standard operating force,indicate with the upper limit.
Electrical life
>10000 Cycles






Product Show

WS2 Series Micro Switch:

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.

WS2 Series Micro Switch:

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
