Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KW1-103-4, KW1-103-4
- Max. Current:
- 15A
- Max. Voltage:
- 125/250VAC
- Operating Temperature:
- -25 to 80 degrees Celsius
- Protection Level:
- IP40
- Item:

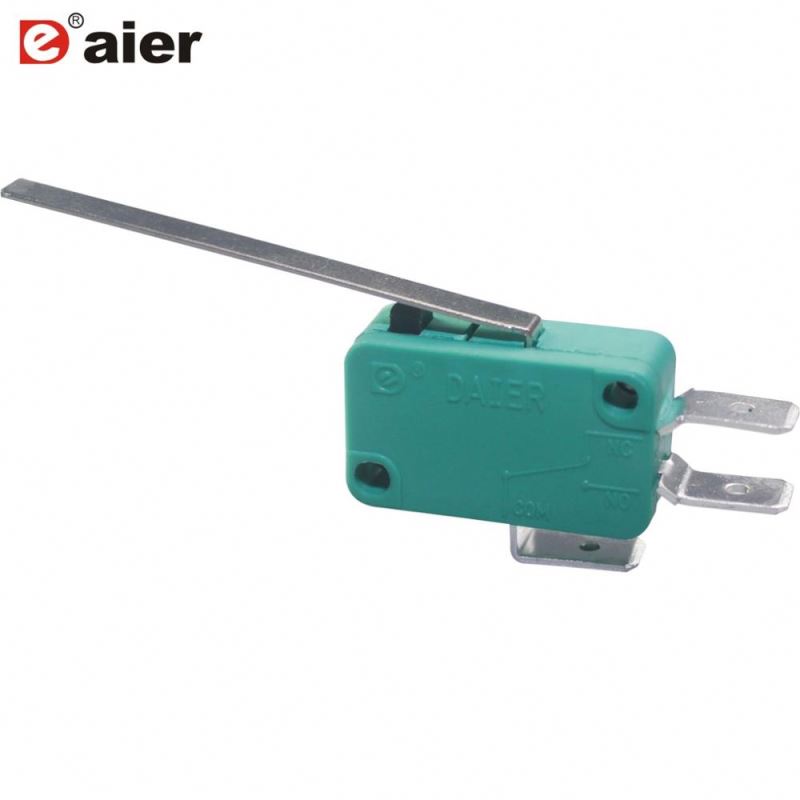

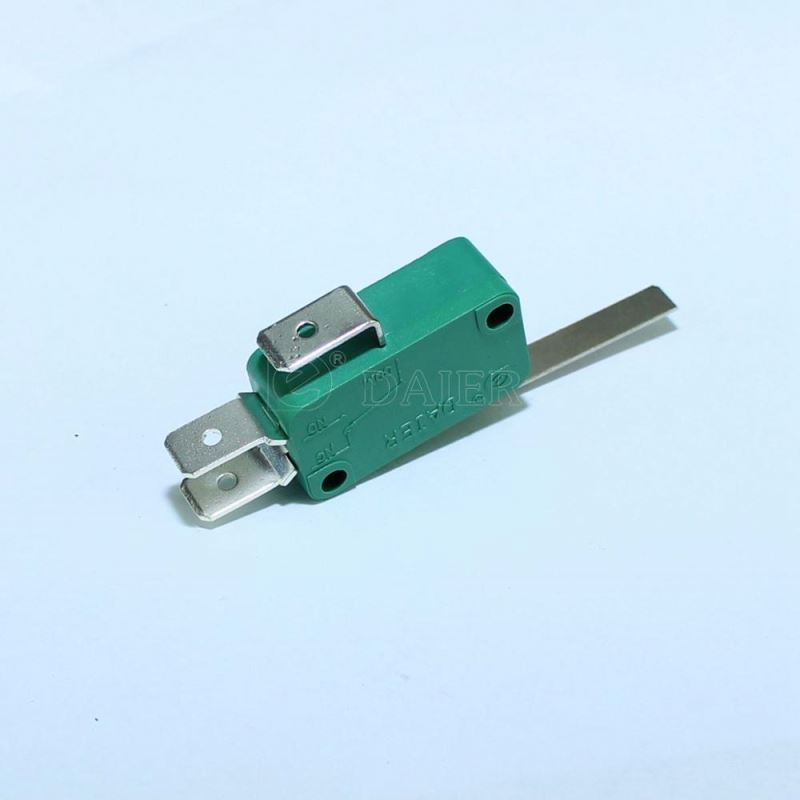

- KW1-103-4 micro switch
- Approvals:
- CE,CQC
- Circuit:
- SPDT
- Color:
- black,green
- Contact Resistance:
- 30 M Ω max
- Dielectric strength:
- 1500VAC,1Minute
- Electrical life:
- 100,000cycles
- rating:
- 10A 125/250VAC16A 125/250VAC
- lever:
- long lever
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- XX cm
- Gross weight per batch:
- 0.8 kg
- Package Type:
- 100PCS/BOX
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
