Home > Products > Arc Lever Waterproof MSW Microswitch

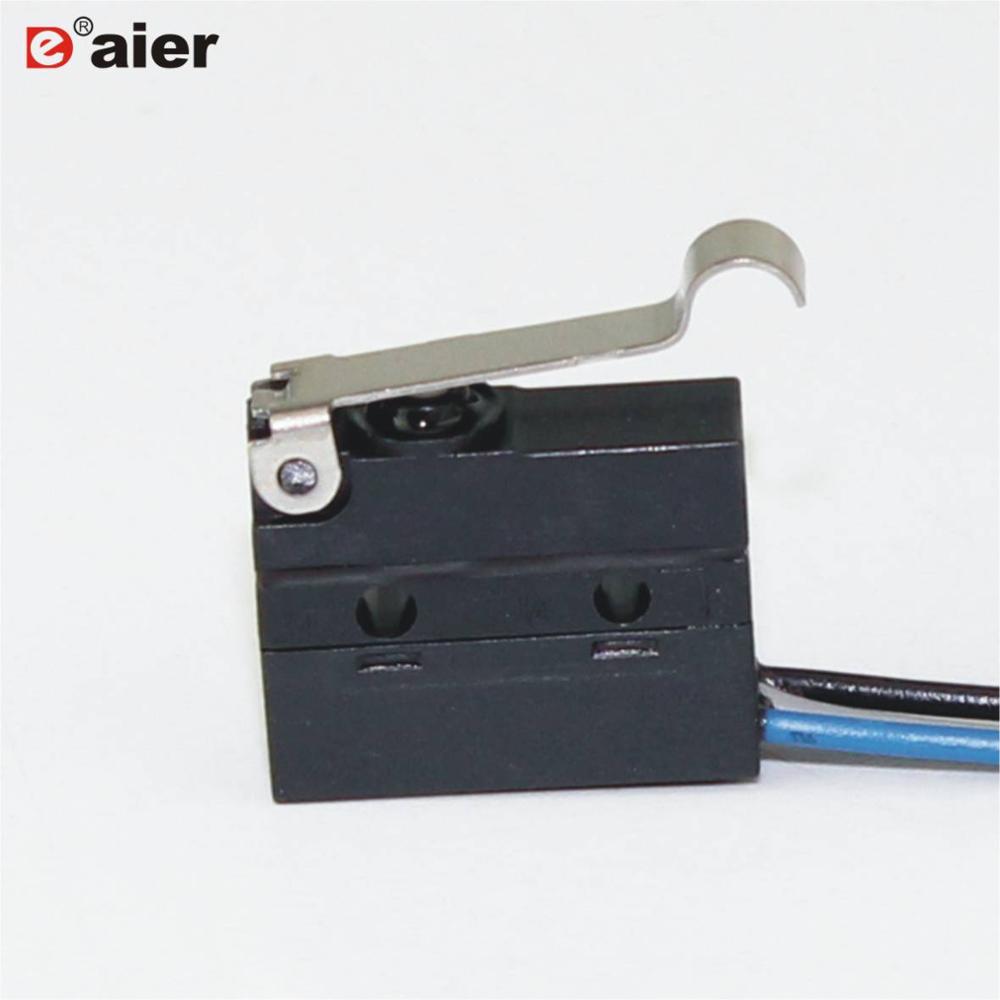

Arc Lever Waterproof MSW Microswitch
Click on the image to view the original image
Product： views：4Arc Lever Waterproof MSW Microswitch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:27
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
WS1-Z6-W150R200, WS1-Z6-W150R200
Max. Current:
5A
Max. Voltage:
250V
Operating Temperature:
-25℃ - +85℃, -25℃~+85℃
Protection Level:
IP67
Material:
Plastic or Metal
Waterproof:
IP67
Certificate:
CE,Rohs,CQC
Pin type:
Wire terminal
Function:
SPDT
Packing:
Carton Box
OEM&ODM:
Yes
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X20X10 cm
Gross weight per batch:
1.5 kg
Package Type:
50pcs/box, 100pcs/bag, 4000pcs/carton for arc lever waterproof MSW microswitch
Lead Time:
Quantity(Piece)1 - 500>500
Est. Time(days)10To be negotiated
Product Description
Item
Arc Lever Waterproof MSW Microswitch
Function
SPDT
Rating
5A 250VAC
Contact Resistance
35mΩmax
Insulation Resistance
500VDC 1000MΩ Minute
Dielectric Strength
1500VAC,1 Minute
Operating Temperature
-25°C~+85°C
Operating Force
150:1.5N
Product Show

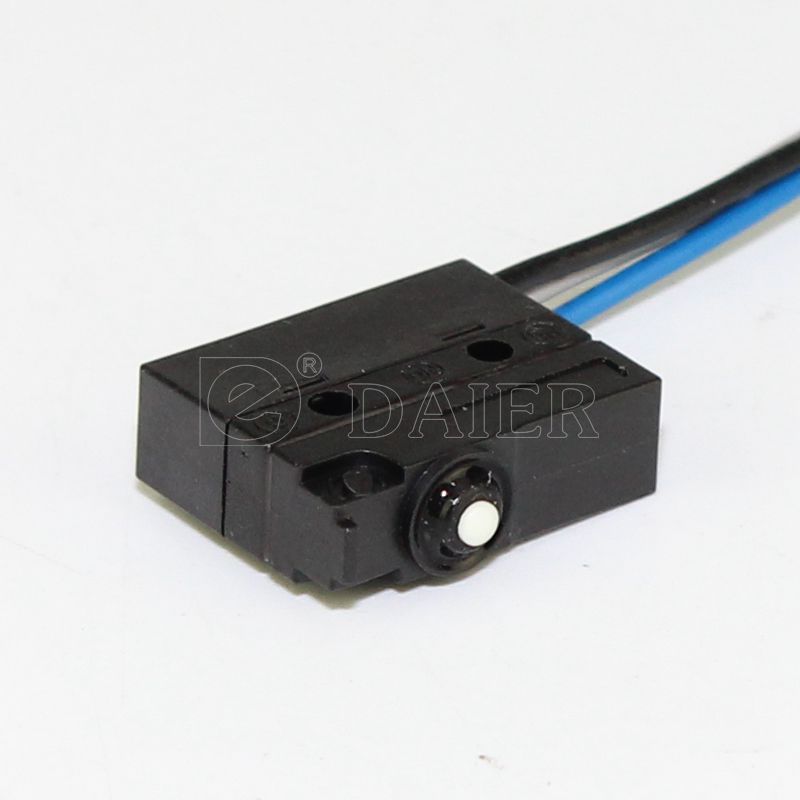

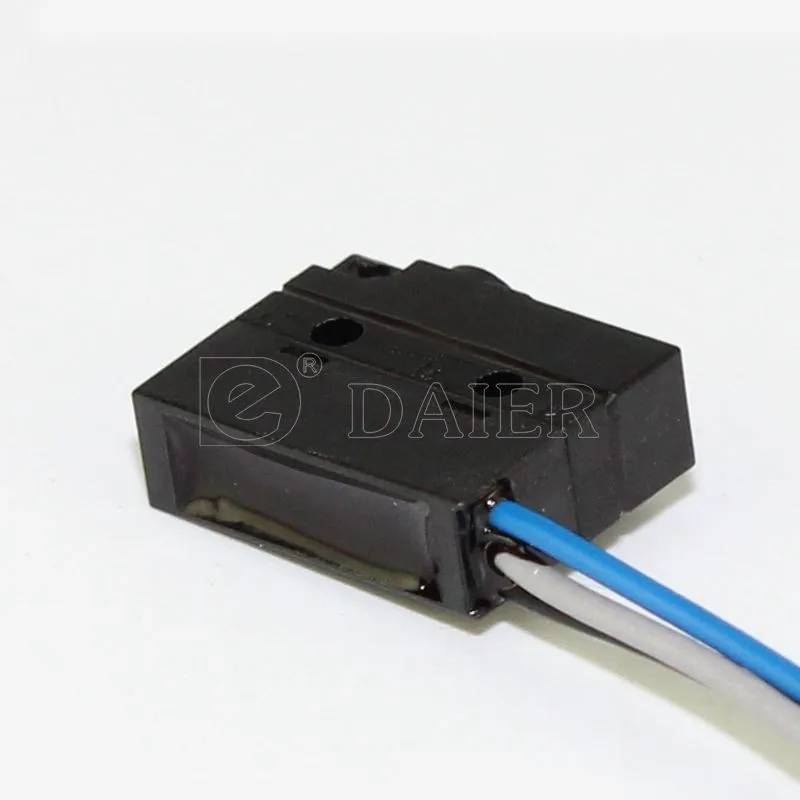

WS1 Series Micro Switch:

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.

WS1 Series Micro Switch:

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
