Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Daier
- Model Number:

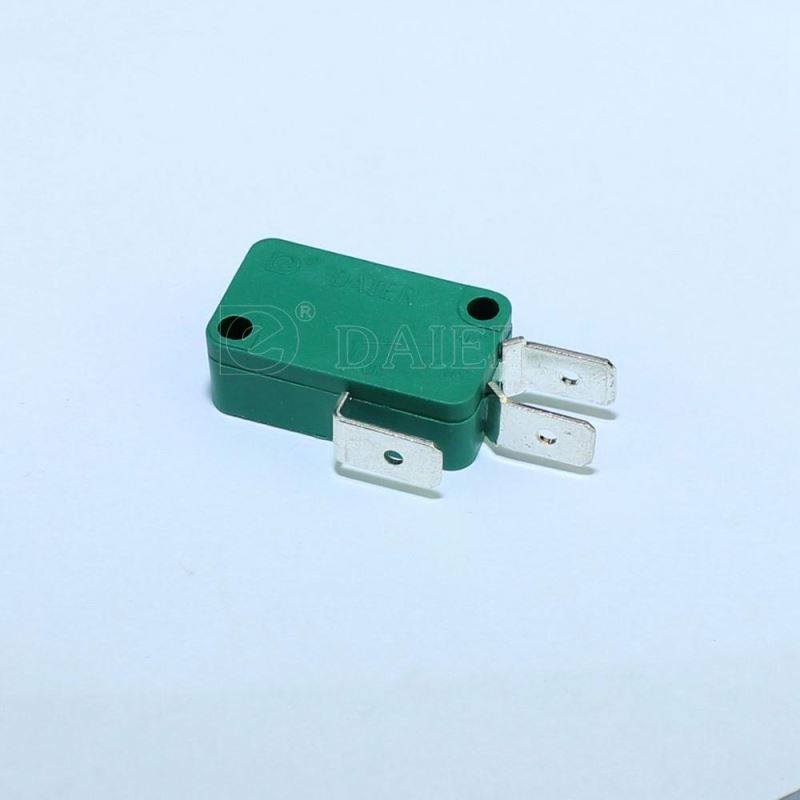

- KW1-103-1, KW1-103-8T with no lever micro limit switch
- Max. Current:
- 15A
- Max. Voltage:
- 125/250VAC
- Operating Temperature:
- -25℃~+80℃
- Protection Level:
- IP40
- Circuit:
- SPST
- Color:
- Green,black
- Lever:
- no lever
- Rating:
- 10A 125/250VAC16A 125/250VAC
- Dielectric strength:
- 1500VAC,1Minute
- Insulation Resistance:
- 500VDC 100 M Ω min
- Contact Resistance:
- 30 M Ω max
- Electrical life:
- 100,000cycles
- Approvals:
- CE,CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- XX cm
- Gross weight per batch:
- 10.0 kg
- Package Type:
- 1000pcs/bag
- Lead Time:
Quantity(Piece) 1 - 1000000 >1000000 Est. Time(days) 10 To be negotiated
