Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:

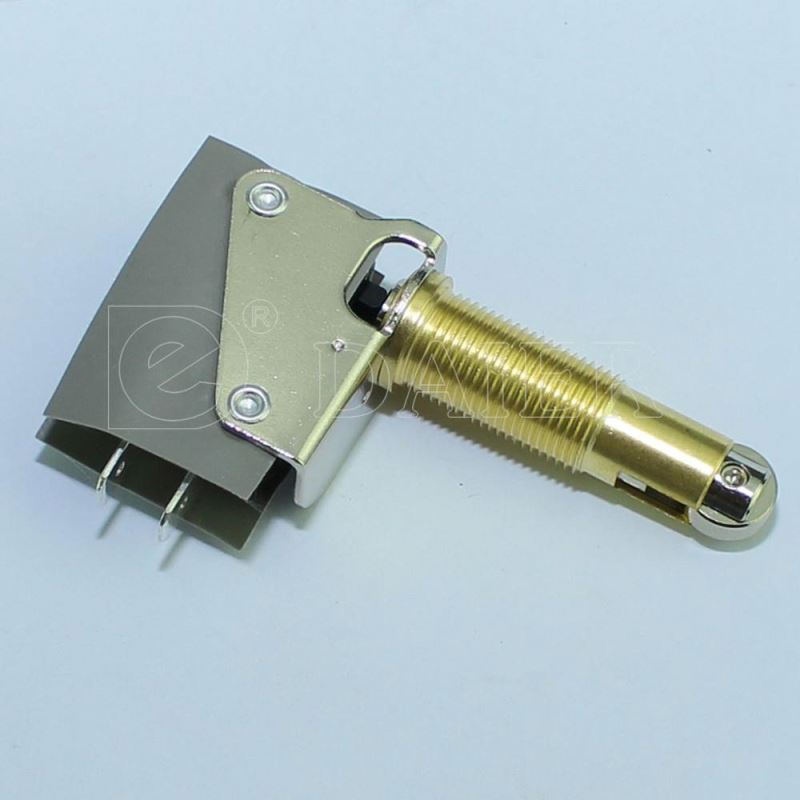

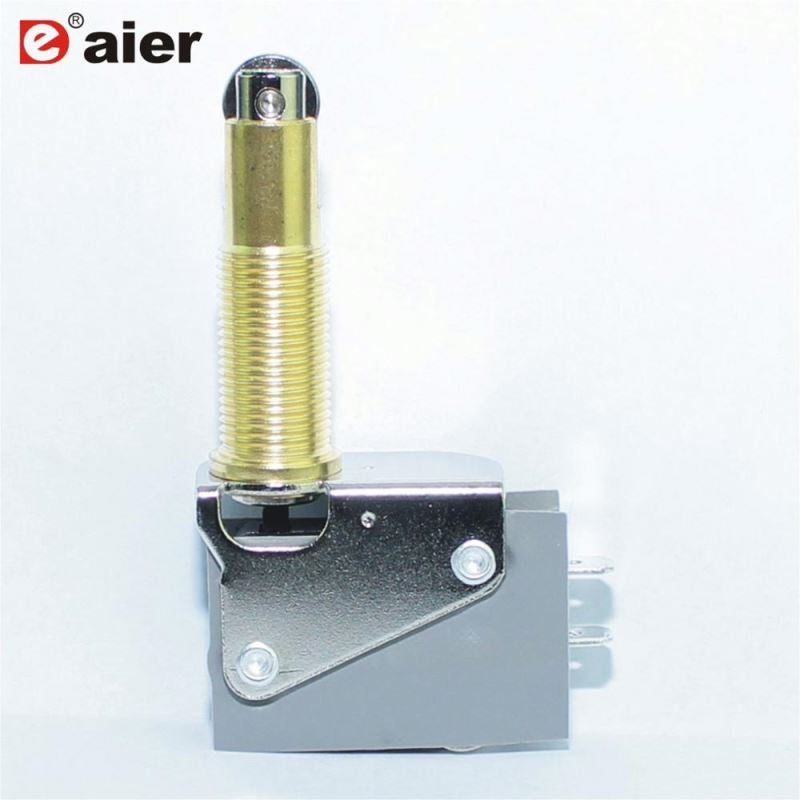

- KW-1038-M10, KW-1038-M10 solder terminapush button micro switch
- Max. Current:
- 16A
- Max. Voltage:
- 125/250VAC
- Operating Temperature:
- -25 to 65 degrees Celsius
- Protection Level:
- IP40
- Approval:
- CE,CQC
- Color:
- black
- Lever:
- no lever
- contact Resistance:
- 30 mΩ max
- Insulation Resistance:
- 500 VDC100MΩ
- Dielectric Strength:
- 1500VAC,1minuute
- Electric life:
- 100,000 cycles
- Characteristics:
- Long life,high reliability ,
- Rating:
- 16A 125/250VAC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- XX cm
- Gross weight per batch:
- 4.0 kg
- Package Type:
- 100pcs/bag
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
