Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Daier
- Model Number:

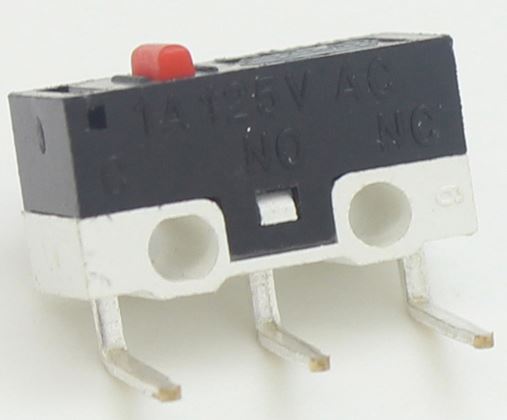

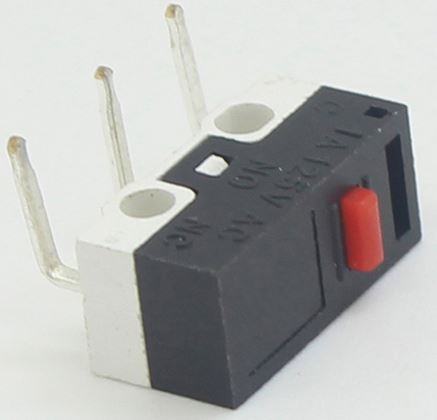

- KW10-Z0R, KW10-Z0R mini microswitch
- Max. Current:
- 2A
- Max. Voltage:
- 125VAC
- Operating Temperature:
- -25 to 65 degrees Celsius
- Protection Level:
- IP40
- Terminal:
- Pinterminals
- Lever:
- no lever
- Circuit:
- SPDT
- Color:
- black&white
- Contact Resistance:
- 30 M Ω max
- Dielectric strength:
- 1000VAC,1Minute
- Dimensions:
- 19.8x10.8x6.4 mm
- Electrical life:
- 30,000Cycles
- Free Sample:
- Available
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 25X18X5 cm
- Gross weight per batch:
- 0.98 kg
- Package Type:
- 1000pcs/bag
- Lead Time:
Quantity(Piece) 1 - 1000000 >1000000 Est. Time(days) 10 To be negotiated
