Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- K19-06
- Item:
- 4A 28VDC 2 Pin ON-OFF Electric Vending Machine Lock Master Key Lock
- Rating:
- 2A 250VAC / 4A 28VDC
- Material:
- Zinc
- Key Material:
- Metal
- Housing Color:
- Silver
- Function:
- ON-OFF
- Mounting hole size:
- 19MM
- Total Length:
- 40.3MM
- Free Sample:
- Available
- Electrical Life:
- 5,000 times
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 13X17X3 cm
- Gross weight per batch:
- 1.9 kg
- Package Type:
- 100Pcs A Bag Of 4A 28VDC SPST 2 Pin ON-OFF Electric Vending Machine Lock Master Key Lock
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 7 To be negotiated
Product Description
Product Show

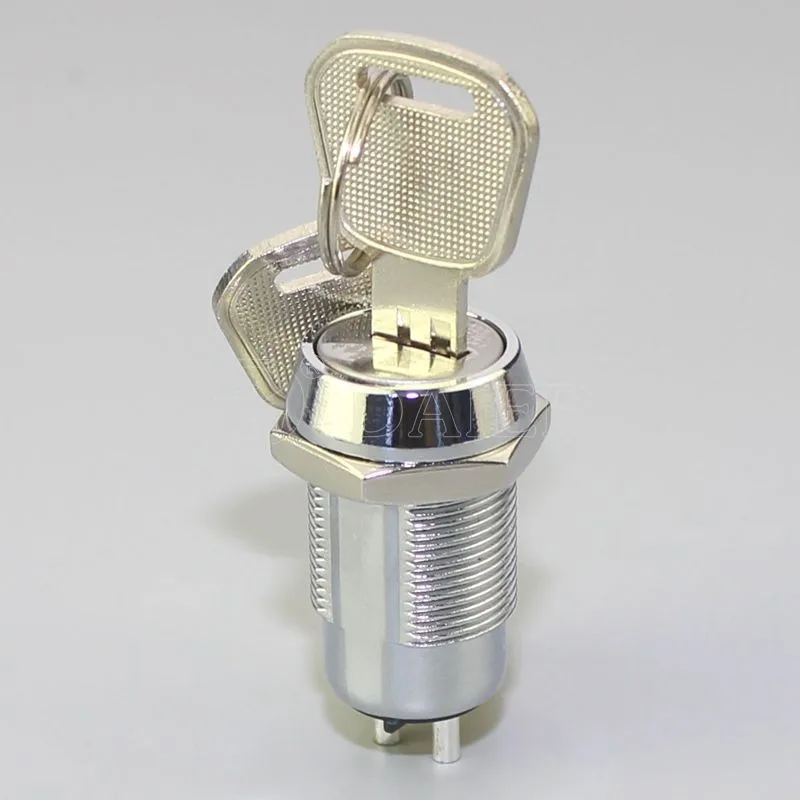

A quality product containing parts manufactured from brass, steel and alloy materials.
The barrel is finished in chrome with a polished bezel.
The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze

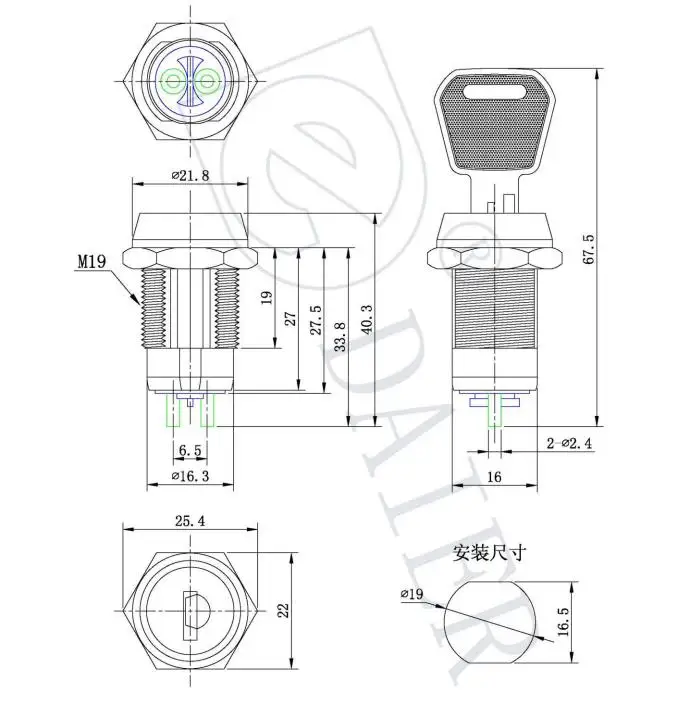

The barrel is 19mm diameter across the threads.
Overall length of lock when assembled is 40.3mm.
