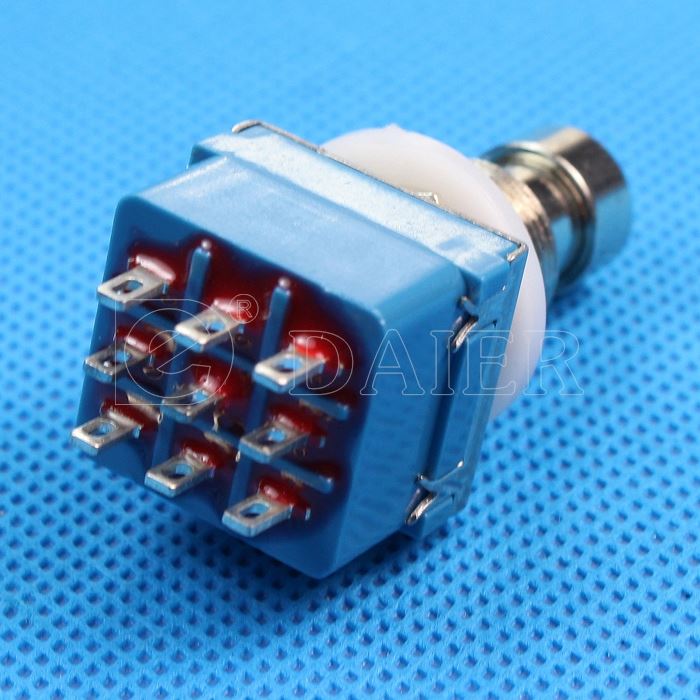

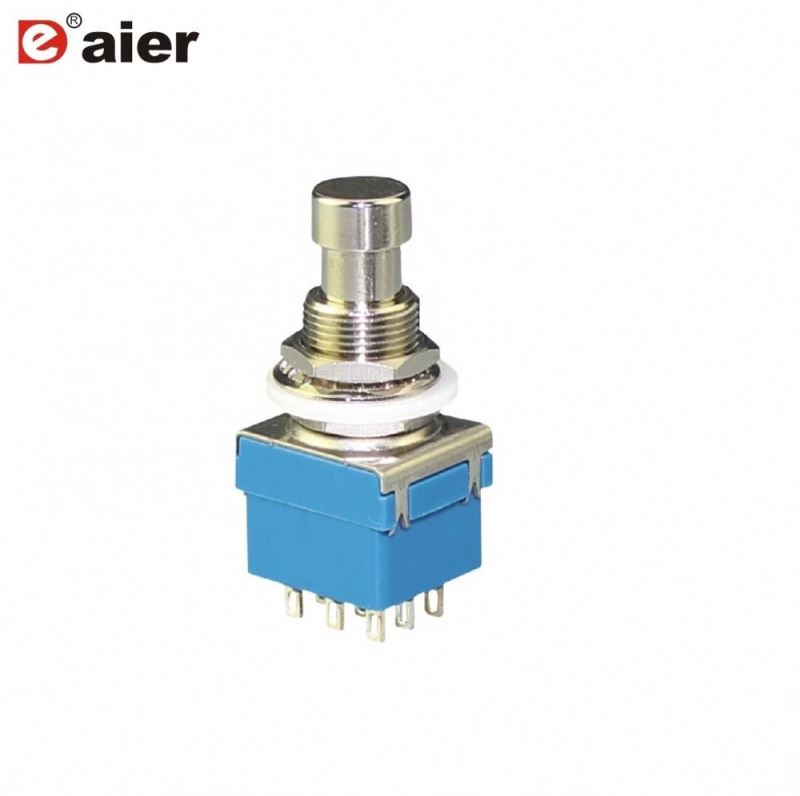

Click on the image to view the original image
- Brand Name:
- Daier
- Model Number:
- PBS-24-302(312)
- Protection Level:
- IP40
- Max. Current:
- 4A
- Max. Voltage:
- 30VDC
- type:
- 9 Pin 3PDT Latch Footswitch Guitar
- Function:
- 3PDT Alternate ON-ON/ Momentary ON-(ON)
- Panel Size:
- 12mm
- Color:
- Blue(Black/Red/Red brown)
- Material:
- Copper
- Accessory:
- Nut and washer
- Terminal Type:
- Soldering Terminal 9pins
- OEM&ODM:
- YES
- Weight:
- 0.023KGS/PCS
- Package:
- 50pcs/box
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X20X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- PBS-24-302(312) is 50pcs/bag

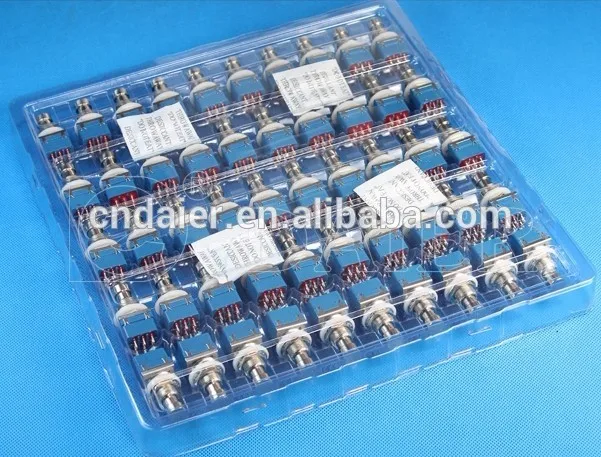

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
PBS-24-302(312)
Specifications::
1.Rating: 3A 250VAC ; 6A 125VAC
2.Insulation Strength:≥100MΩ
3.Contact Resistance:≤100MΩ
4.Test Voltage: ≥1500V AC/5S
5.Electonical Life:50,000 Cycles
6.Temperature: T85
PBS-24-302(312)
Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
PBS-24B-4
2Pin Solder TerminalSPSTOFF-(ON) Momentary Soft-Touch
PBS-24-202(212)
6Pin Solder Terminal DPDT ON-ON/ON-(ON) Function
PBS-24-402(412)
12Pin Solder Terminal4PDT on-on/on-(on) Function
PBS-24-102P(112P)
3Pin Pcb Terminal SPDT ON-ON/ON-(ON) Function
9Pin 3PDT ON-ON/ON-(ON) Gilded Solder Terminal
PBS-24-302P(312P)
9Pin on-on/on-(on) 3PDT Pcb Terminal
