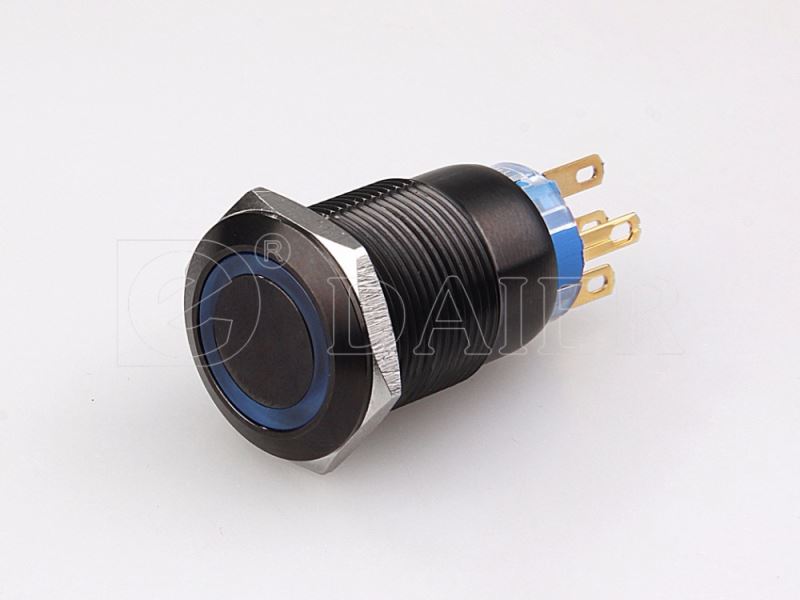

Click on the image to view the original image
- Brand Name:
- Daier
- Model Number:
- LAS1-19F-11E
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:
- 19mm illuminated push 1no 1nc 6 pin push button on/on switch pcb
- Material:
- Metal
- Function:
- Momentary/Latching
- Panel Size:
- 19mm
- Button Color:
- Silver/ Black/ Colorful
- Body Color:
- Silver/ Black/ Colorful
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 50pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- LAS1-19F-11E 19mm illuminated push 1no 1nc 6 pin push button on/on switch pcb is 40pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
LAS1-19F-11E
Specifications:
1. Rating: 5A 250VAC
2. Electrical Life: 50,000cycles
3. Function: SPDT/ DPDP Momentary/Latching
4. Contact Resistance: 50mΩ Max
5. Insulation Resistance:1000Ω Min
6. Dielectric Strength: 2000VAC
7. Operating Temperature:-20°C~+55°C
8. Operating Force: 3-5N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
