- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- LAS3-19F-11E
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

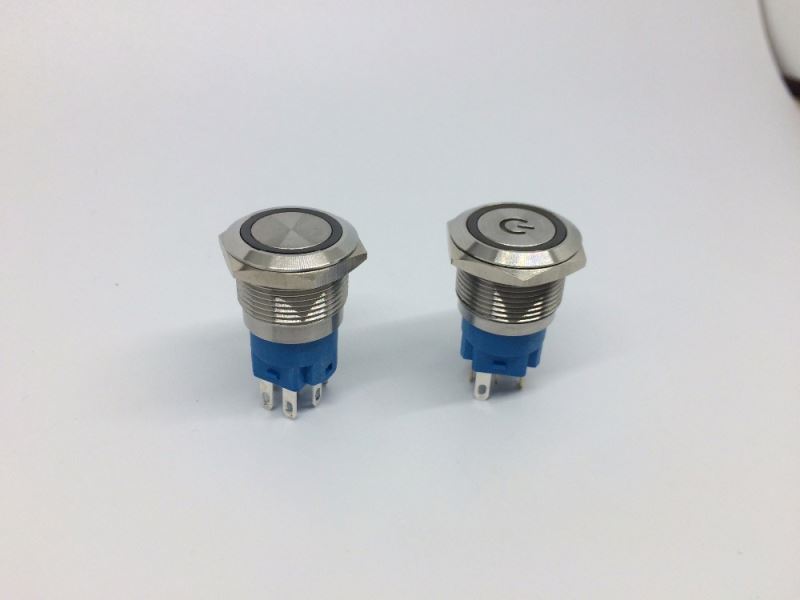

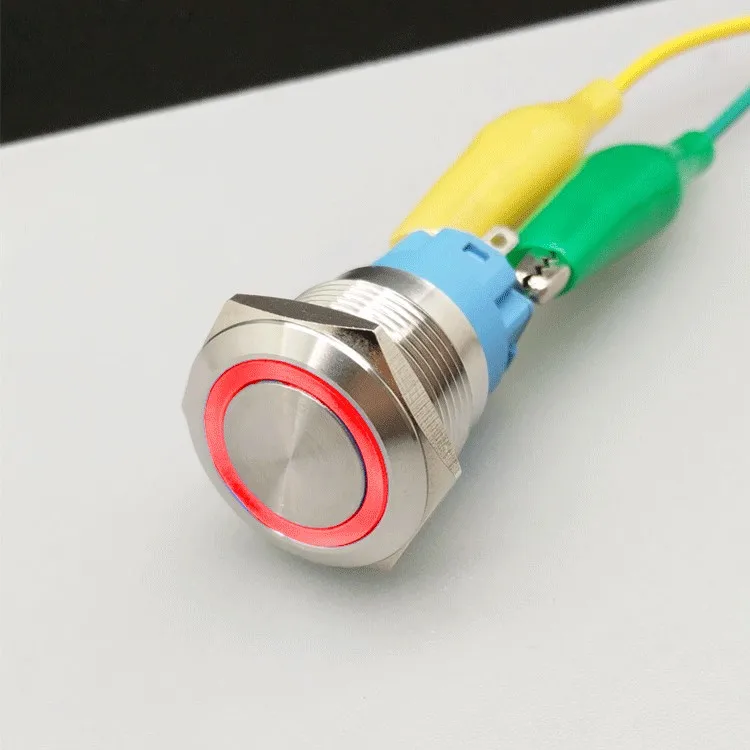

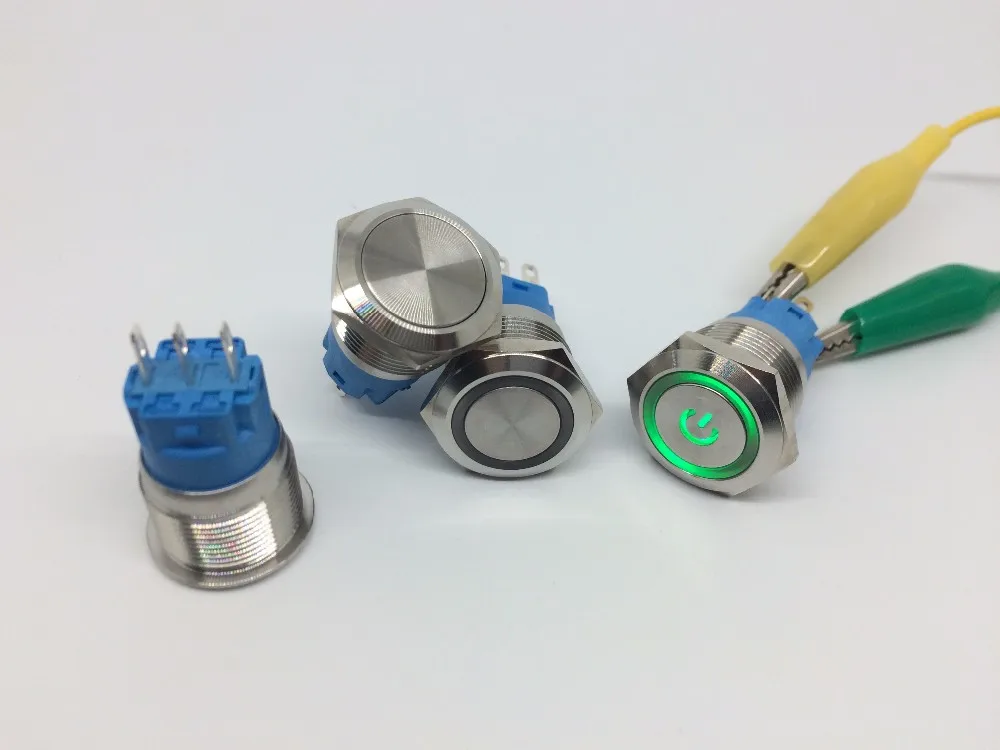

- Wireless 120v Stainless Steel Push Button Switch
- Material:
- Metal
- Function:
- Momentary/Latching
- Panel Size:
- 19mm
- Led Color:
- Red Yellow White Blue Green Orange
- Body Color:
- Silver/ Black
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 40pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- LAS3-19F-11E is 40pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
LAS3-19F-11E
Specifications:
1. Rating: 5A 250VaC
2. Function: 1NO 1NC
3.Contact Resistance: 30mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 2~4N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
