10mm High Button Ring Lamp Illuminated Stainless Steel Small Switch

Click on the image to view the original image

Product：	views：510mm High Button Ring Lamp Illuminated Stainless Steel Small Switch
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:28

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: GQ-10H-10E

Protection Level:: IP67

Max. Current:: 3A

Max. Voltage:: 250VAC

Item:: 10mm High Button Ring Lamp Illuminated Stainless Steel Small Switch

Function:: Latching/ Momentary

Panel Size:: 10mm

Led Button Color:: Red/ Green/Yellow/Blue/White/Orange

Button Shape:: High Button

IP Class:: IP67

Terminal Type:: Soldering Terminal

Certificate:: CE, Rohs, CQC

OEM&ODM:: YES

Package:: 50pcs/box

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X15X10 cm

Gross weight per batch:: 1.0 kg

Package Type:: 50pcs/box for 10mm High Button Ring Lamp Illuminated Stainless Steel Small Switch

Picture Example:

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	10	To be negotiated

Product Description

Model	10mm High Button Ring Lamp Illuminated Stainless Steel Small Switch
Rating	3A 250VAC
Function	Latching/Momentary
Button Size	10mm
Led Lamp Color Avaliable	Red/ Green/Yellow/Blue/Black/White

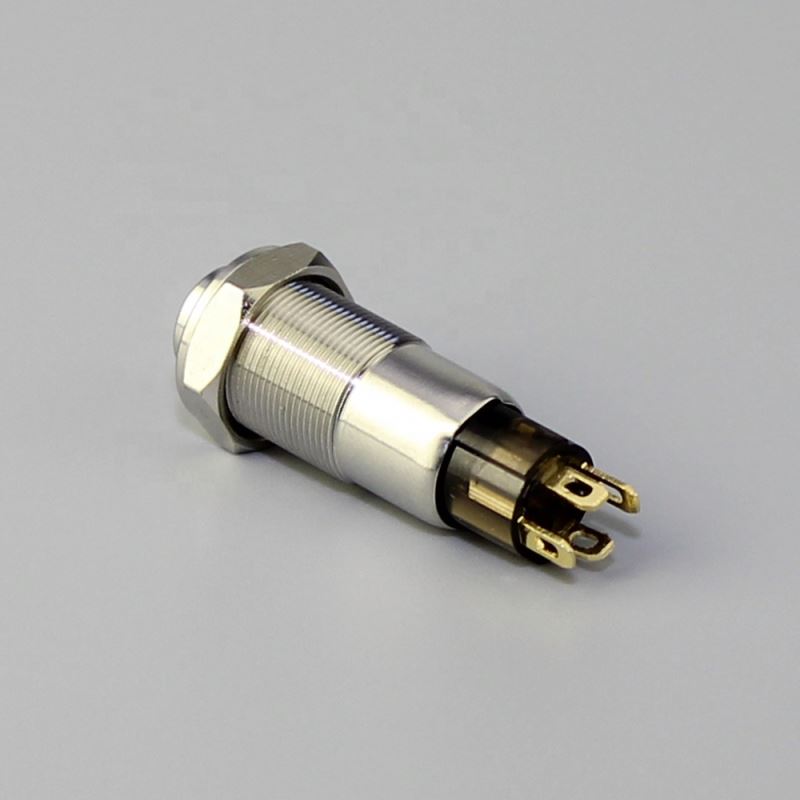

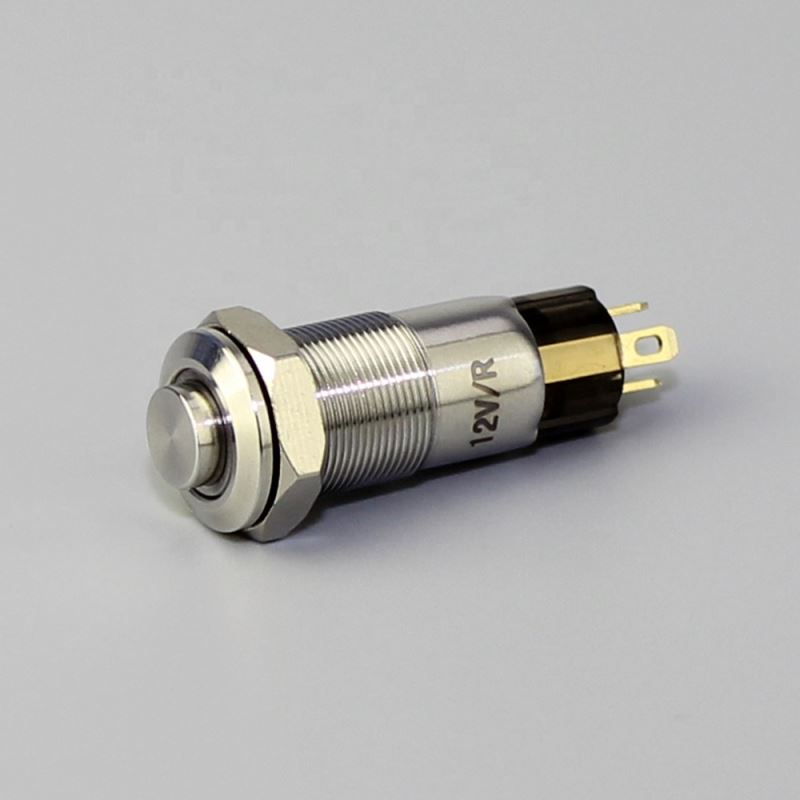

Product Show

GQ10H-10E

Specifications:
1. Rating: 3A 250VAC
2. Electrical Life: 200,000cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: 1NO Latching

8. IP Class: IP67 protection

9. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
