Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- GQ-12BJ
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item:

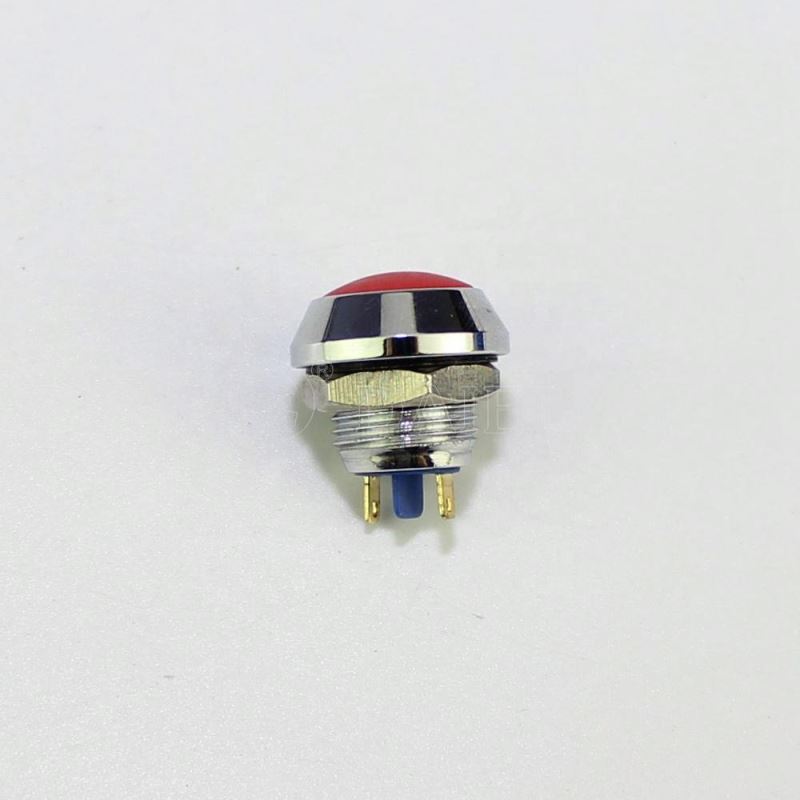

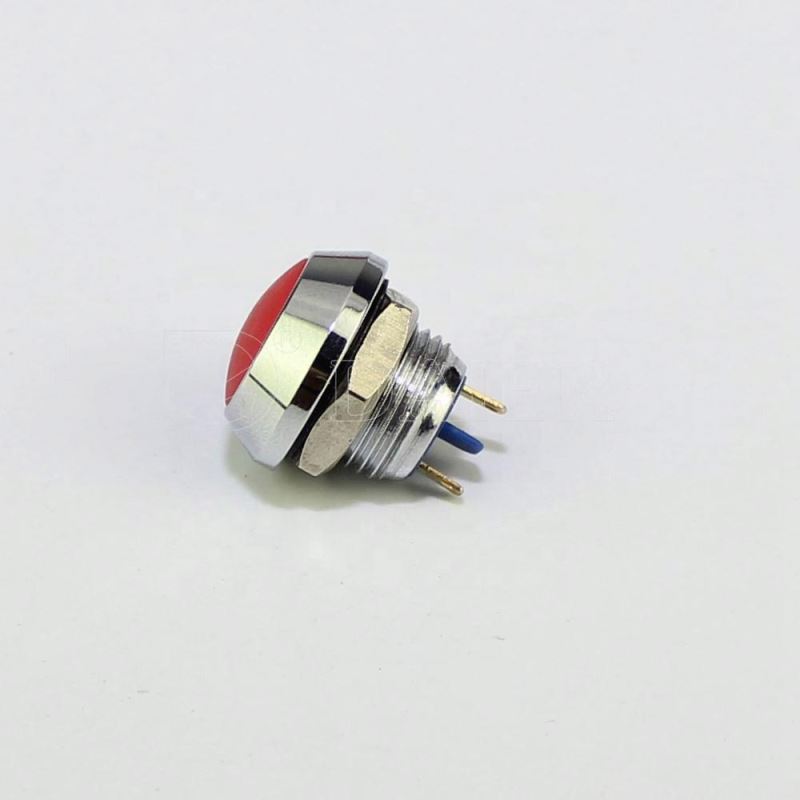

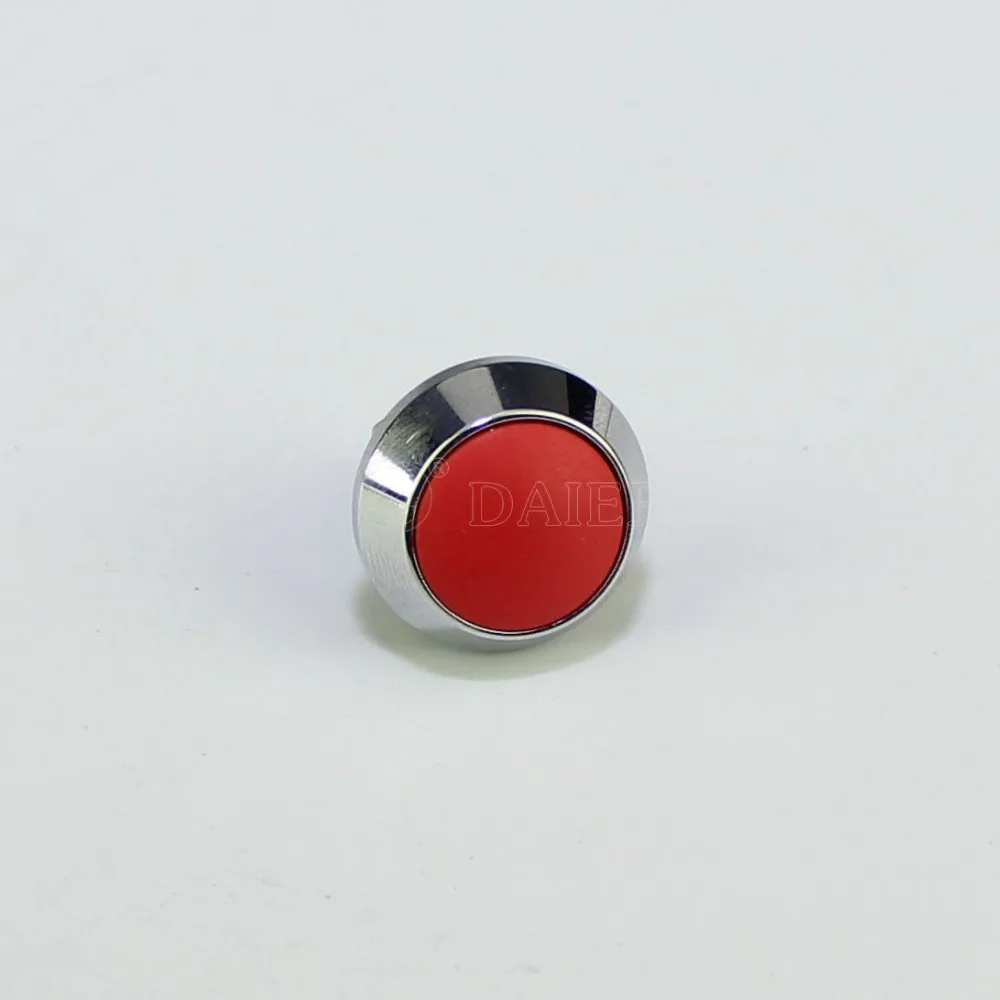

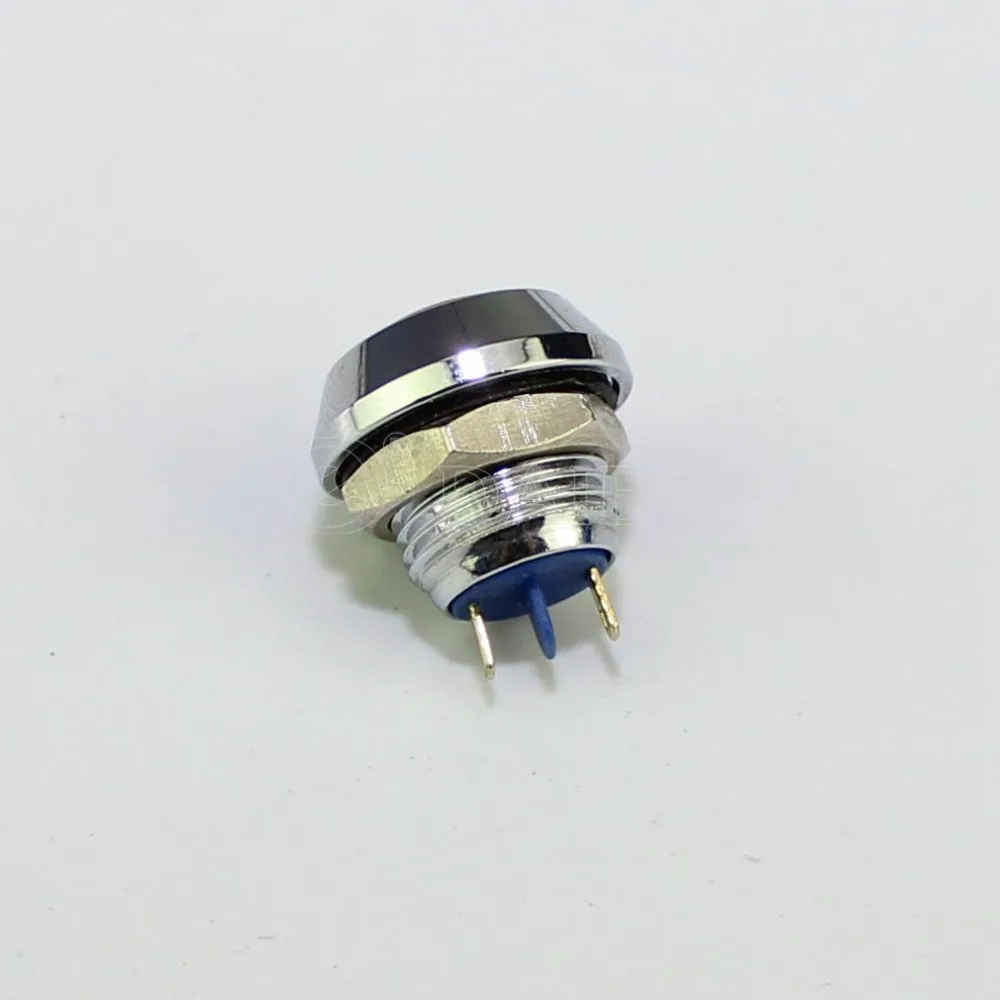

- IP67 Momentary 2 Pin Solder Terminal 12mm Dome Push Button Switch
- Function:
- Momentary
- Panel Size:
- 12mm
- Button Shape:
- Ball Button
- IP Class:
- IP67
- Terminal Type:
- Soldering Terminal
- Lamp:
- NotAvailable
- OEM&ODM:
- YES
- Package:
- 40pcs/box
- Certificate:
- CE, Rohs, CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 40pcs/box for IP67 Momentary 2 Pin Solder Terminal 12mm Dome Push Button Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
GQ-12BJ
Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: Latching
8. IP Class: IP67 protection
9. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
