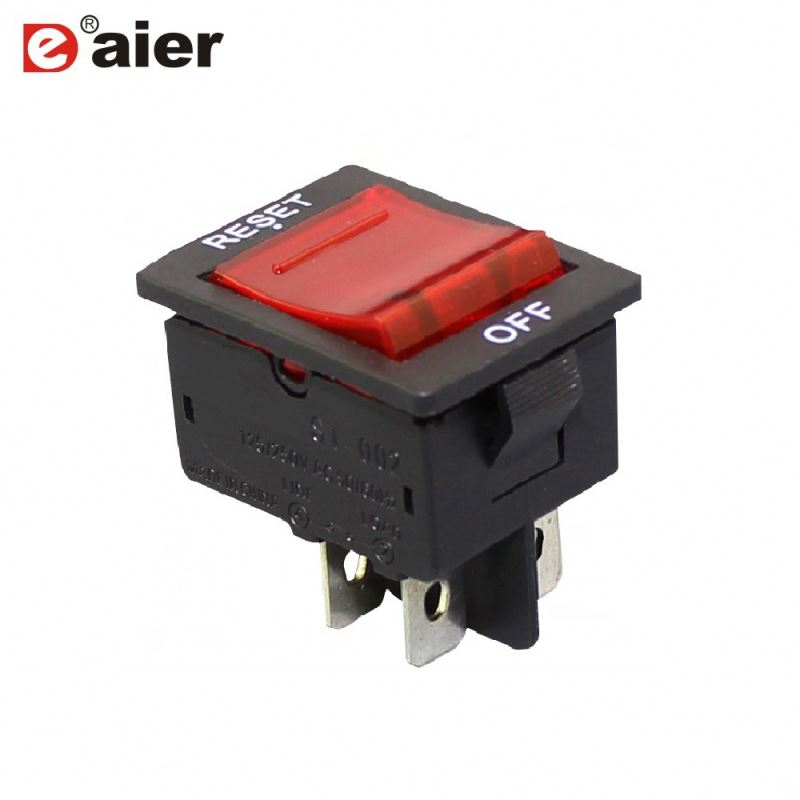

10A 32VDC 4 Pin Overload Protector Manual Reset Zhejiang Breaker
Click on the image to view the original image
Product： views：510A 32VDC 4 Pin Overload Protector Manual Reset Zhejiang Breaker
Branch： Daier
Type： Conventional
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
ST-002
Type:
Conventional
Poles Number:
2
Item:
10A 32VDC 4 Pin Overload Protector Manual Reset Zhejiang Breaker
Housing Material:
Plastic
Rated current:
5~20A
Rated voltage:
125 / 250VAC / 32VDC
Led Voltage:
220V
Function:
Manual Reset
Housing Color:
Black
Button Color:
Red
Terminal Type:
Straight Pin
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X16X16 cm
Gross weight per batch:
2.0 kg
Package Type:
200Pcs A Box Of 10A 32VDC 4 Pin Overload Protector Manual Reset Zhejiang Breaker
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)7To be negotiated
Product Description
Item
10A 32VDC 4 Pin Overload Protector Manual Reset Zhejiang Breaker
Material
Plastic
Function
Manual Reset
Working Voltage
min. 12V, max. 250V (Double usage of DC and AC)
Insulated Resistance
≥100MΩ
Dielectric Strength
≥1500VAC (1min)
Electrical Life
≥10,000 times
OEM or ODM
Available  zhejiang breaker

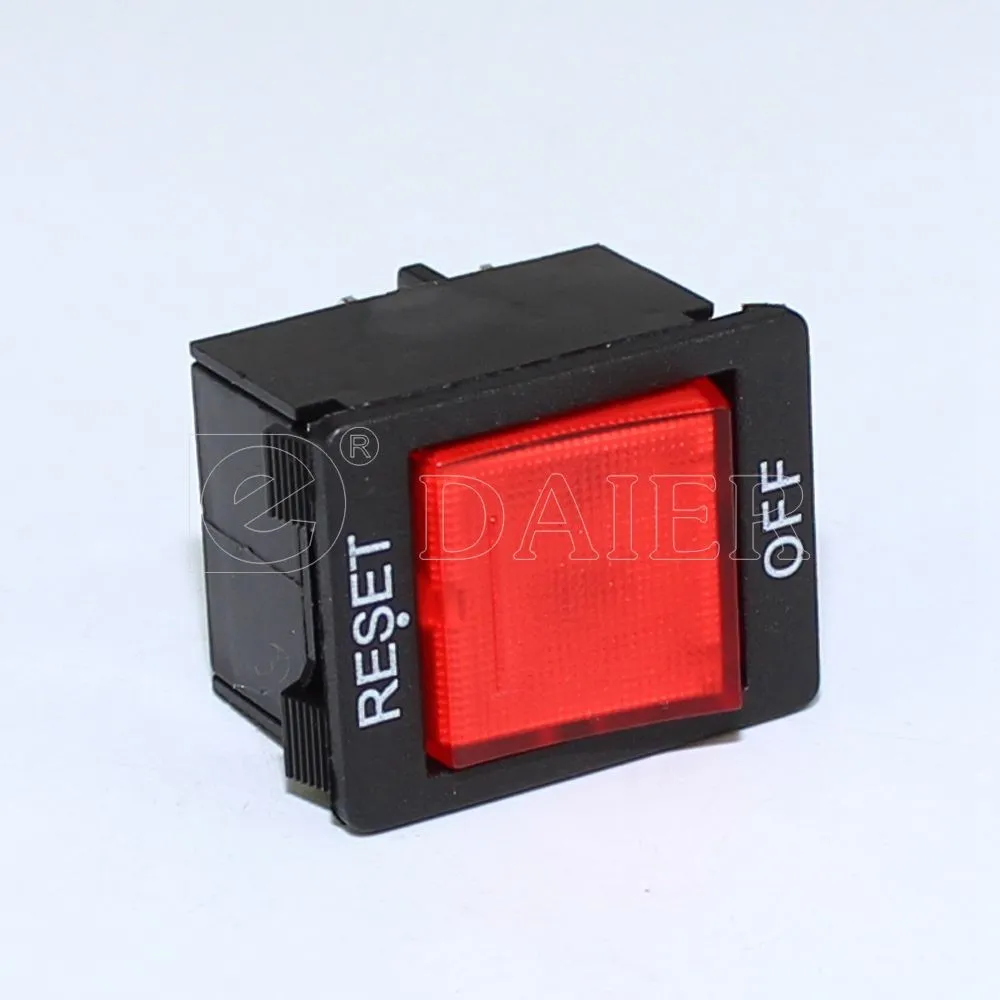

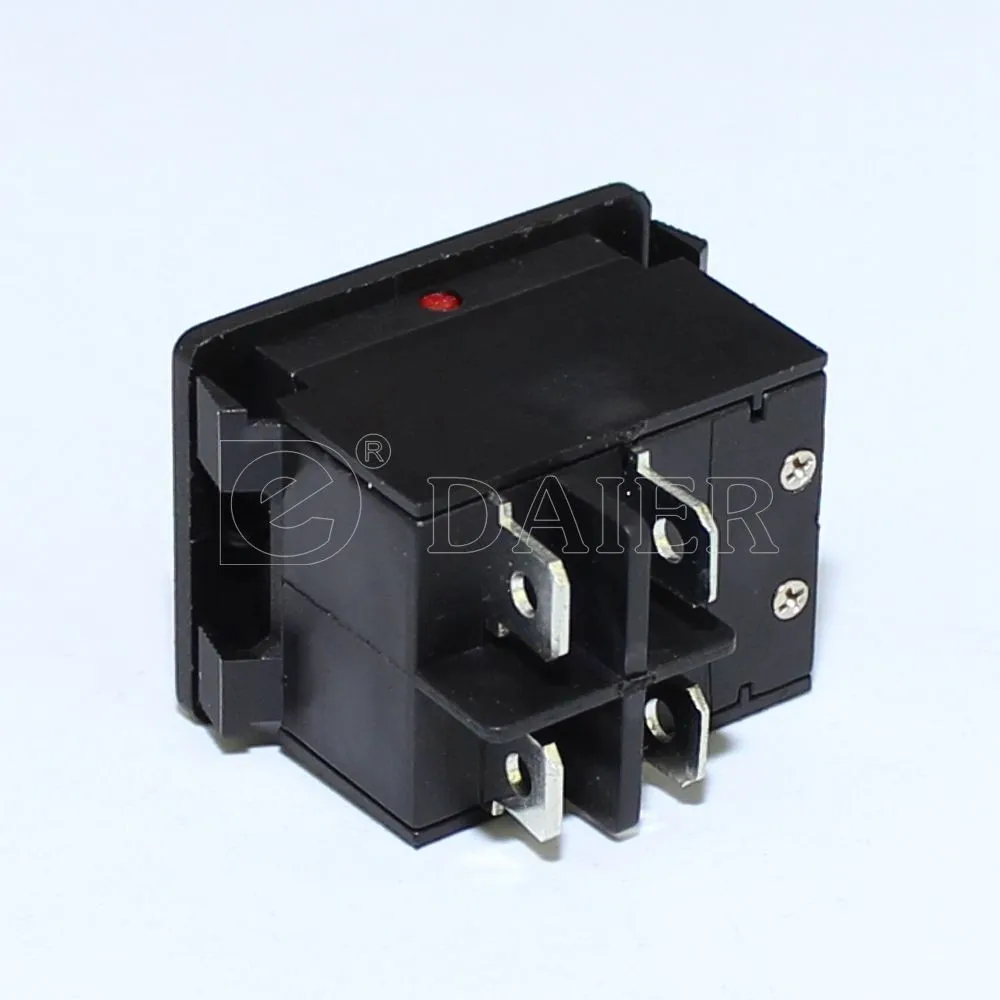

Product Show

This Daier car circuit breaker range offers a compact thermal circuit breaker in a rocker switch design, with or without illumination. The rocker switch offers a compact thermal circuit breaker in a rocker switch design.

By incorporating the thermal circuit breaker into your system you can provide overload protection and On/Off switching using just a single component.


This provides significant cost savings over using a separate rocker switch and circuit breaker combination.


Combined rocker switch and circuit breakers, which trips to off status under overload condition.

High visibility red marking on actuator indicates when breaker is tripped / awaiting reset.


Related Roducts

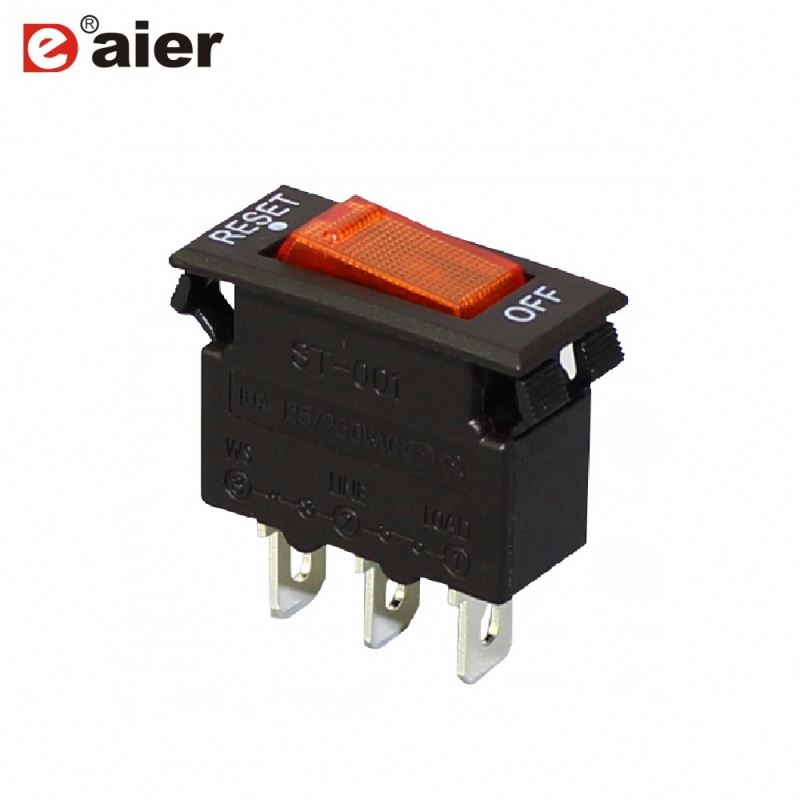

                    ST-1
