- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- DS-402
- Protection Level:
- IP40, IP40
- Max. Current:
- 0.5A
- Max. Voltage:
- 125VAC
- Item:
- 2 Pin NO Mini Momentary Push Button Switch 5mm
- Material:
- Plastic
- Function:
- Momentary
- Panel Size:
- 5.2mm

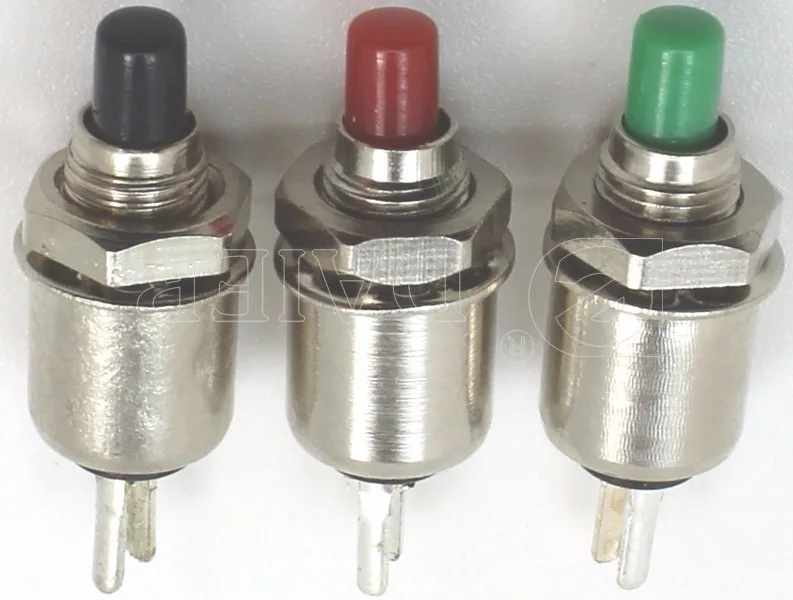

- Button Color:
- Red, Green, Black
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 500pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X20 cm
- Gross weight per batch:
- 1.6 kg
- Package Type:
- DS-402 2 Pin NO Mini Momentary Push Button Switch 5mm is 500pcs/bag.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated
DS-402
Specifications:
1. Rating: 0.5A 125VAC
2. Function: NO Momentary Push Button Switch
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:100Ω min
5. Dielectric Strength:1500V AC for 1 min
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: ≥10,000 Cycles
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
