Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- R13-507
- Protection Level:
- IP40, IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item:
- 16mm Big Size 4Pin SPST 250VAC Momentary Plastic Button Switch
- Material:
- Plastic
- Function:
- Momentary Plastic Button Switch
- Panel Size:
- 16mm
- Button Color:
- Red/Green/Yellow/Blu/Black/White
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 100pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.8 kg
- Package Type:
- R13-507 Momentary Plastic Button Switch is 100pcs/bag
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
R16-503AD
Specifications:
1. Rating: 3A 250VAC; 6A 125VAC
2. Function: Momentary Plastic Button Switch
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100MΩ Min
5. Dielectric Strength: AC 1500V 1 Minute
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles Min
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers

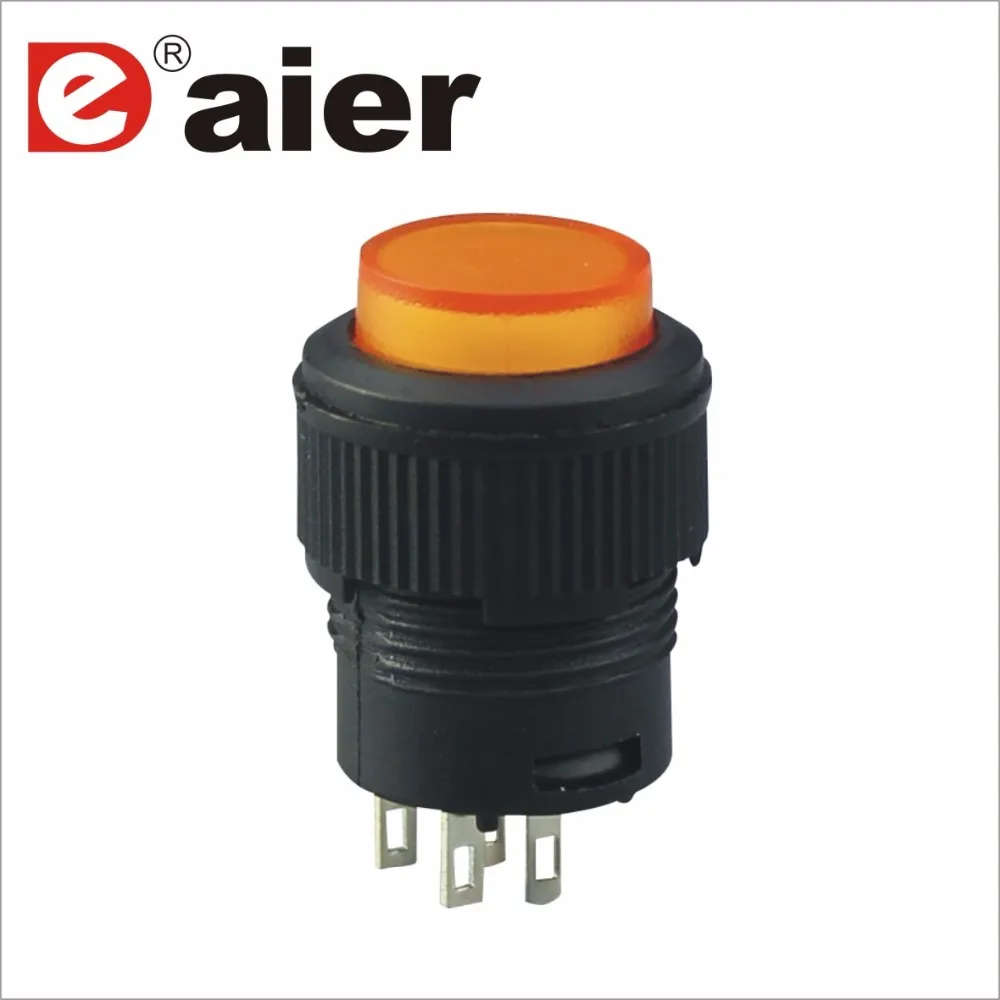

R16-503AD
16mm ON-OFF Latching Panel Mounted Plastic Push Button Switch
R13-507K
16mm SPST OFF-(ON) Momentary 3A 250VACPlastic Push Button Switch

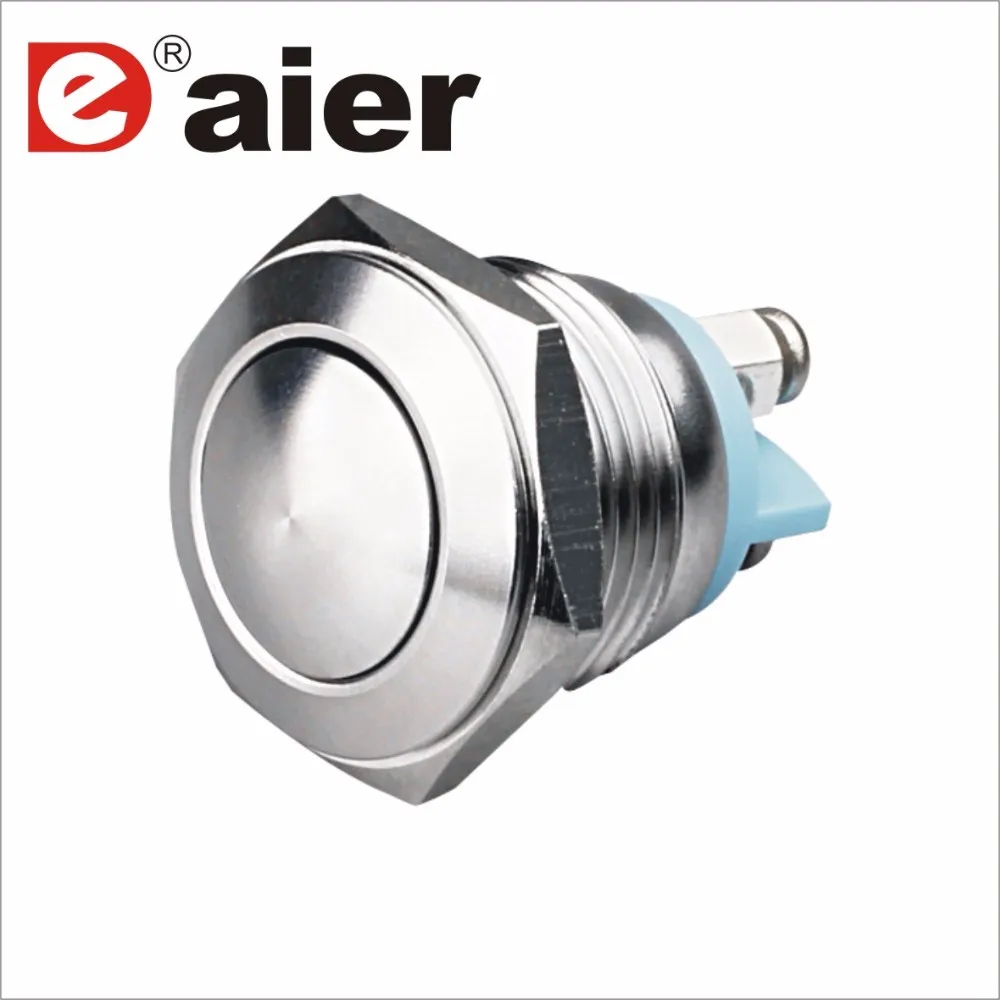

16mm Ball Button SPST 2Pin Screw Terminal Push Button Switch
