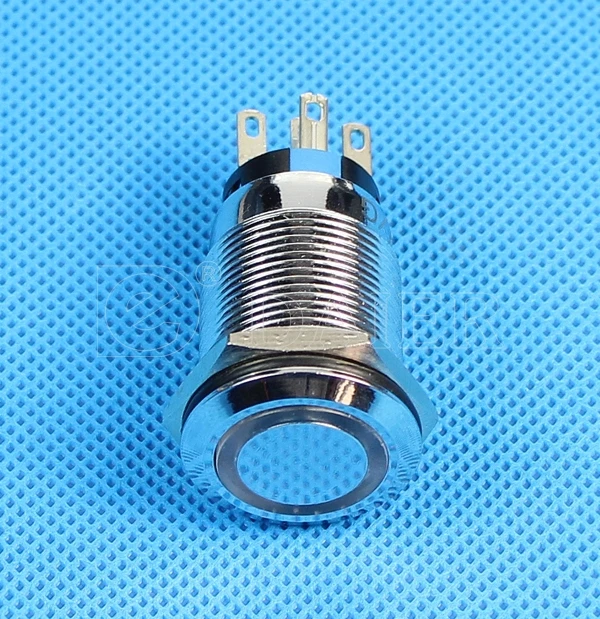

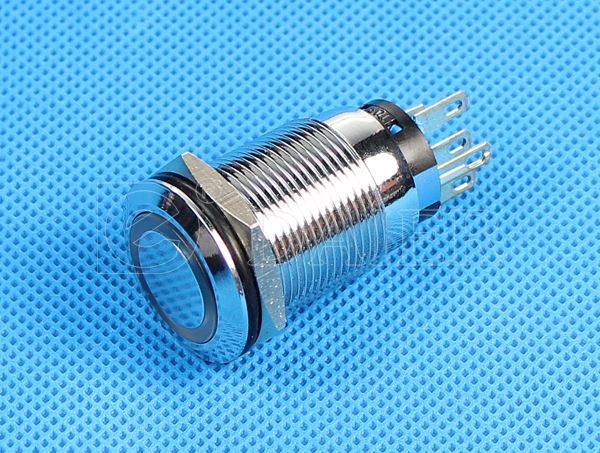

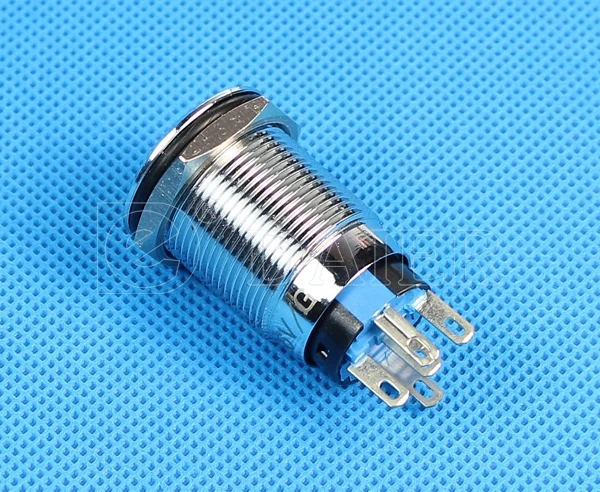

19mm push button switch waterproof push button switch
P/N
LAS1-19F-11EM , SPDT Momentary 1NO 1NC.
LAS1-19F-11EL , SPDT Latching 1NO 1NC.
push button switch push button switch push button switch push button switch push button switch push button switch push button switch push button switch push button switch push button switch push button switch push button switch
TECHNICAL DATASHEET
Whether with LED | With LED |
Operation Type | Momentary |
Crust Material | Stainless Steel/Copper Plated Ni/Aluminium/Copper Plated Cr/Copper Plated with Black |
Color | Metal |
Degree of Protection | IP67 |
Contact Type | 1NO |
Maximum Voltage | 250VAC |
Thermal Current | 5A |
Minimum Applicable Load | 5V AC/DC,1mA |
Contact Material | Silver Plated |
Terminal Style | .110” Solder/Quick Connect |
Operating Temperature | -25°C ~+55°C |
Operating Humidity | 45%~85% RH |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100mΩ min. (500V DC megger ) |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Degree of Protection | >10g |
Electrical Life | 100,000 operations min. (at full rated load) |
Mechanical Life | Maintained:1,000,000 operations min. Momentary:1,000,000 operations min. |
Dielectrical Life | Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
