Home > Products > TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal

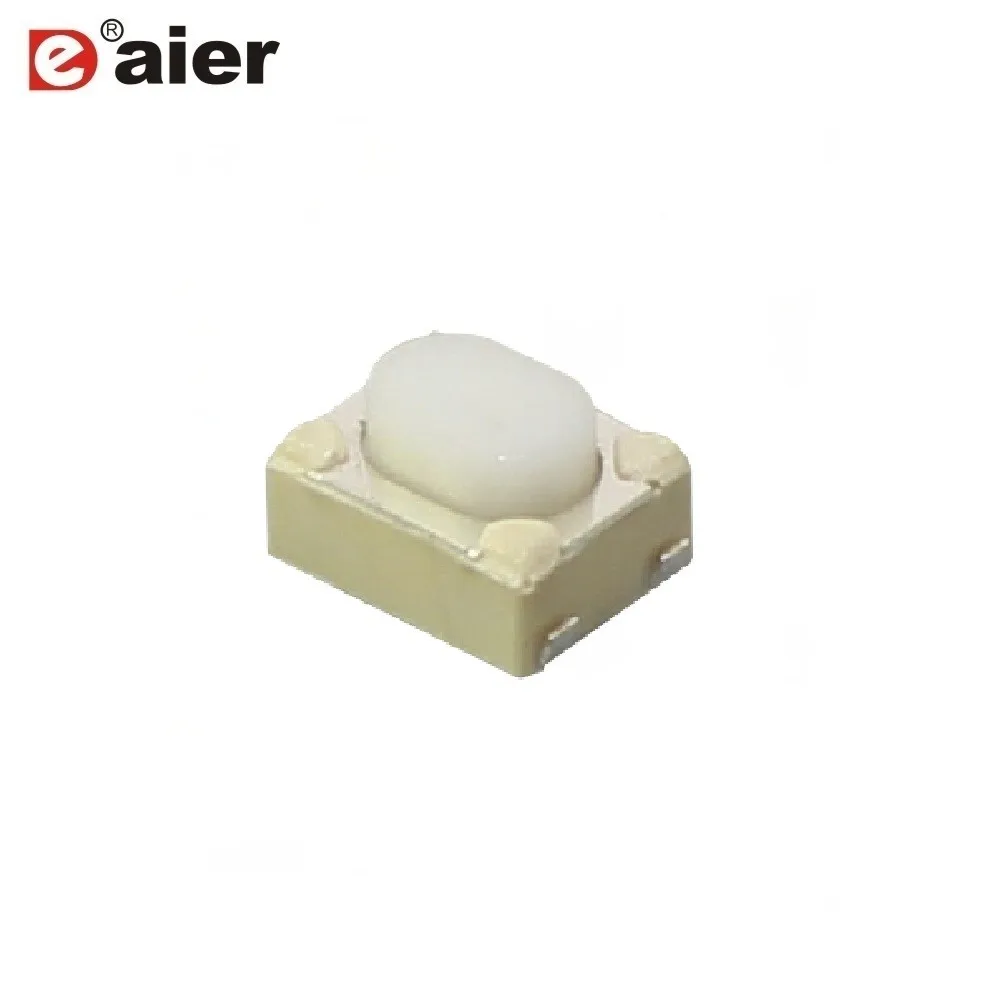

TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal
Click on the image to view the original image
Product： views：4TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
TST3425
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Item:
TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal
Rating:
50mA 12VDC
Material:
Metal
Function:
OFF-(ON)
Size:
3.2X4.2 MM
Height:
2.5 MM
Terminal:
SMT Terminal
Packing:
Bulk Packing
Free Sample:
Available
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.2 kg
Package Type:
1000Pcs A Box Of TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)10To be negotiated
Product Description
Item
TST3425 Metal 50mA 4 Pin 3X4 Soft Tact Switch With SMT Terminal
Rating
50mA 12VDC
Pin
4 Pin
Operating Direction
Top Push
Operating Life
Over 100,000 cycles
Travel
0.25mm
Operating Temperature
-25~+105  soft tact switch
Product Show

TST3425 is an on/off electronic small tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.

It was used for circuit board, the height for the switch is 2.5mm.

The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
