Home > Products > 19MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch

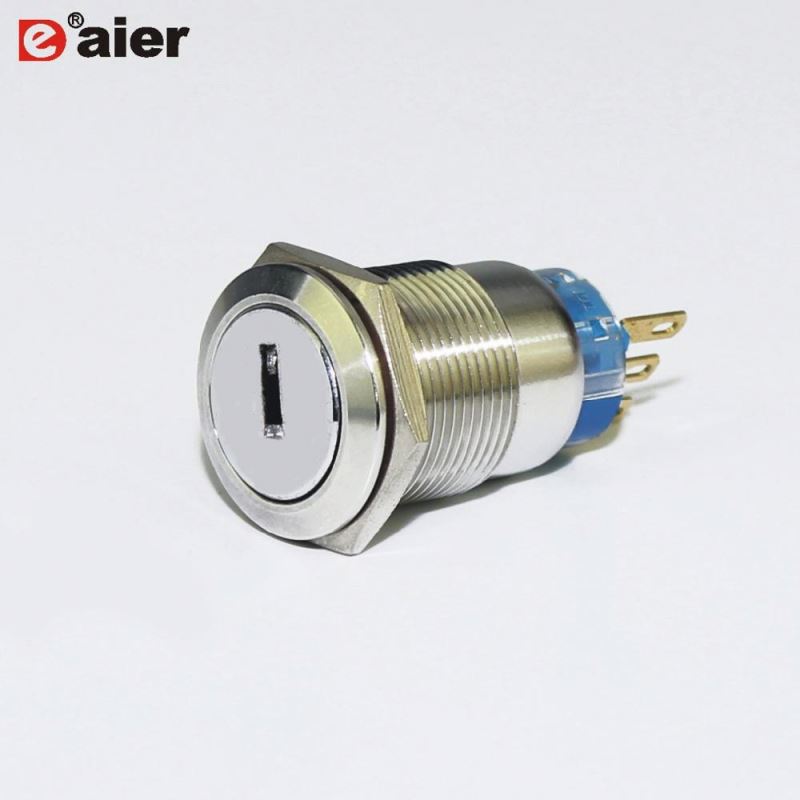

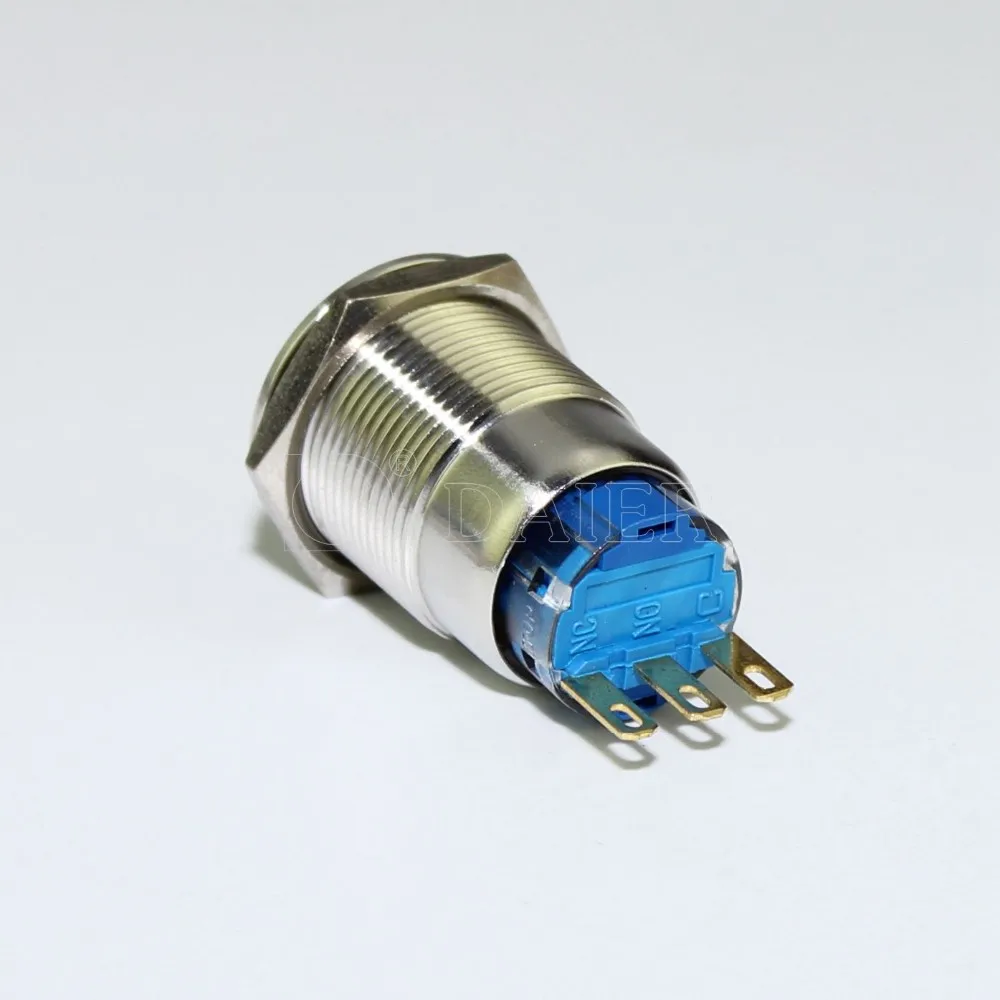

19MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch
Click on the image to view the original image
Product： views：419MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:30
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
LAS1-19-11ZK-102
Protection Level:
IP67
Max. Current:
4A
Max. Voltage:
250VAC
Item:
19MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch
Rating:
4A 250VAC
Material:
Stainless Steel
Key Material:
Metal
Function:
ON-ON
Housing Color:
Silver
Mounting hole size:
19MM
Button Type:
Flat Button
Free Sample:
Available
Electrical Life:
5,000 times

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
21X13X7 cm
Gross weight per batch:
2.2 kg
Package Type:
100Pcs A Box Of 19MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)10To be negotiated
Product Description
Item
19MM Single Pole 3Pin ON-ON Stainless Steel Waterproof Key Switch
Rating
4A 250VAC
Pin
3 Pin
Position
2 Position
Withstand Voltage
AC500V(50Hz) 1min 2mA
Contact resistance
≤100mΩ
Insulation resistance
≥500mΩ(500VAC)
Key position
Key Pulled ON Both Position
Operating Temperature
-25℃~+85℃ waterproof key switch
Product Show


A quality product containing parts manufactured from brass, steel and alloy materials.

The barrel is finished in chrome with a polished bezel.





The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.


The barrel is 19mm diameter across the threads.
