Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KS-03-101
- Protection Level:
- IP65
- Max. Current:
- 0.5A
- Max. Voltage:
- 250VAC
- Item:
- 12MM 0.5A SPST ON OFF 2 Pin Zinc Tubular Switch Lock
- Rating:
- 0.5A 250VAC / 0.5A 24VDC
- Material:
- Zinc
- Handle Sleeve Material:
- Plastic
- Function:
- ON-OFF
- Housing Color:
- Silver
- Mounting hole size:
- 12MM
- Total Length:
- 23.5MM
- Free Sample:
- Available
- Electrical Life:
- 5,000 times
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 13X17X3 cm
- Gross weight per batch:
- 1.35 kg
- Package Type:
- 100Pcs A Bag Of 12MM 0.5A SPST ON OFF 2 Pin Zinc Tubular Switch Lock

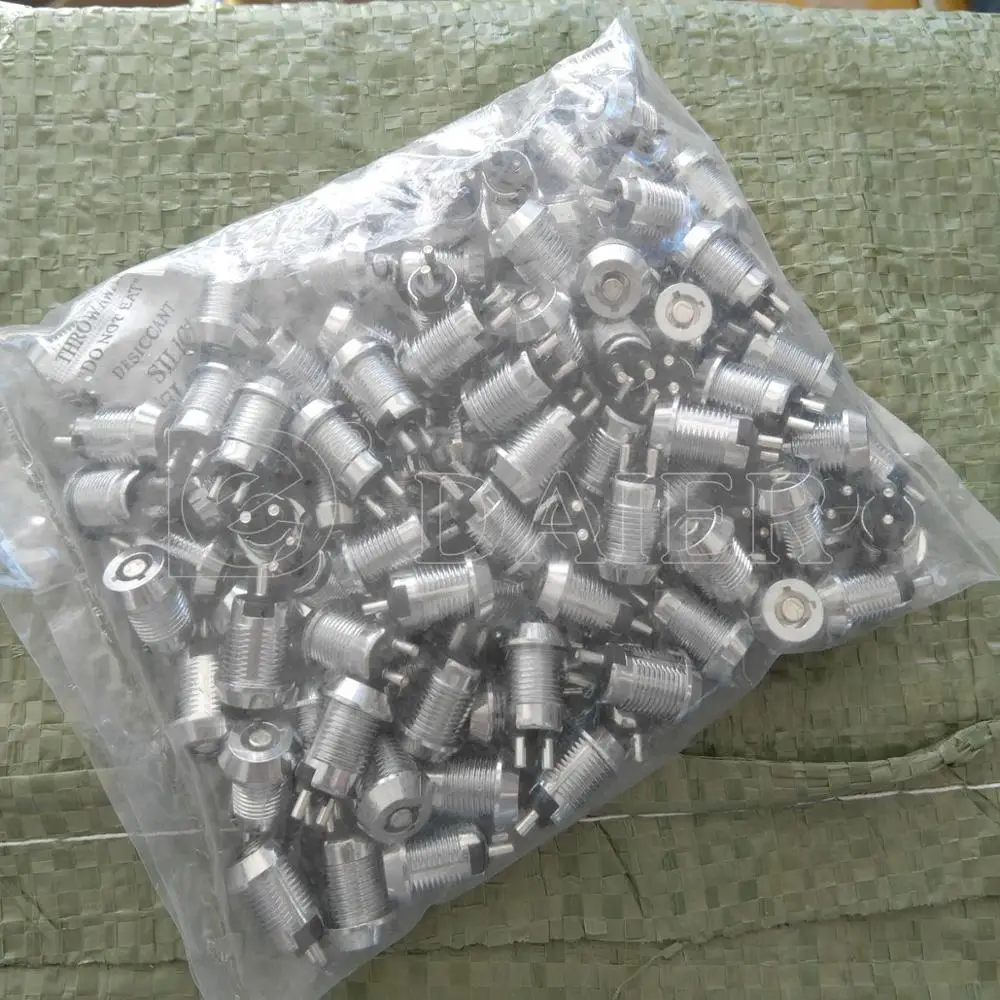

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
Product Description
Product Show
A quality product containing parts manufactured from brass, steel and alloy materials.
The barrel is finished in chrome with a polished bezel.
The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze.
The barrel is 12mm diameter across the threads.
Overall length of lock when assembled is 23.5mm.
