- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- TS22C-10E
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

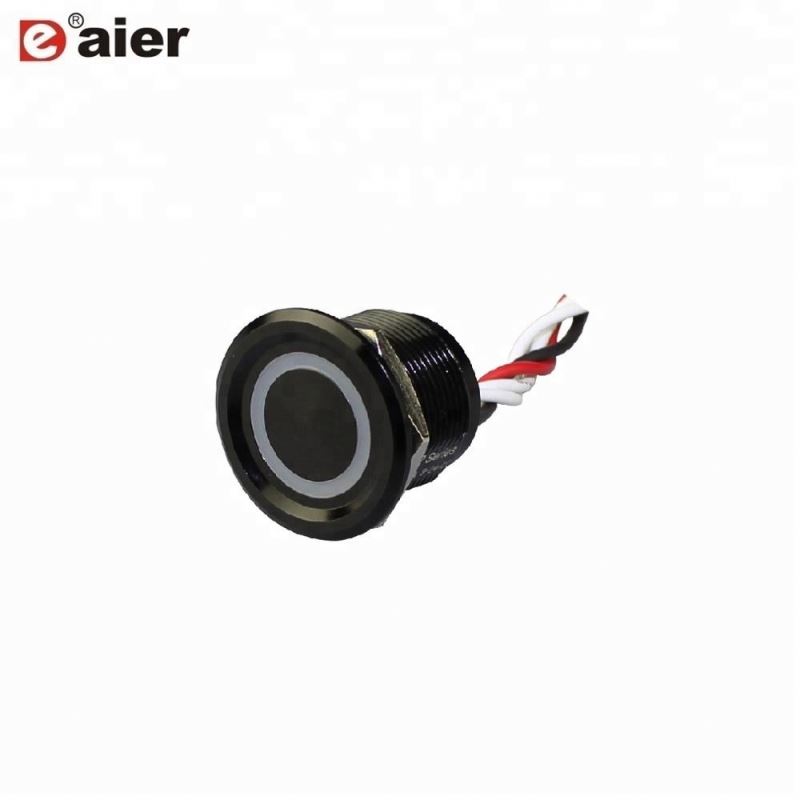

- Miniature Concave 24V Dual Color Switch Touch Piezo Switch
- Function:
- Momentary/ Latching
- Led color:
- Red/Yellow/Blue/Green
- Mounting hole:
- 22mm
- Terminal:
- Wired leads
- Front head:
- Concave
- Material:
- Stainless Steel
- Housing color:
- Silver/Black/Red/Yellow/Blue/Green
- Operating Temperature:
- -20°C ~+55°C
- Electric life:
- 50,000 cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 20pcs TS22C-10E of Miniature Concave Button Explosion Proof 24V Dual Color Switch Touch Piezo Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated
TS22C-10E
Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Piezo switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
