Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- GQ22-11E
- Protection Level:
- IP67, IP67
- Max. Current:
- 5A, 5A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- 1NO 1NC Sliver Stainless steel Normally Open Momentary Switch
- Material:
- Metal
- Function:
- Momentary/Latching
- LED Color:
- Red/Yellow/Green/Blue/White
- Housing Color:
- Sliver/Black
- Electrical Life:
- 100,000Cycles
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 18X15X5 cm
- Single gross weight:
- 0.8 kg

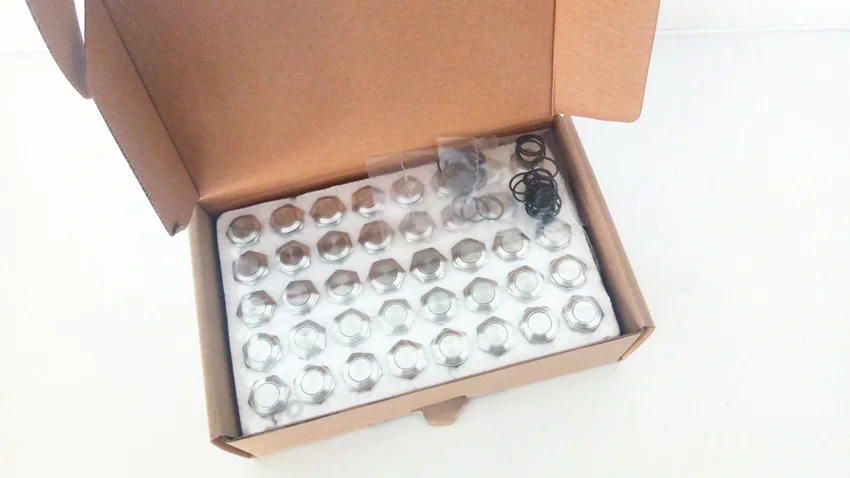

- Package Type:
- 20pcs/box of 1NO 1NC Sliver Stainless steel Normally Open Momentary Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 10 To be negotiated
Product Description
Product Show

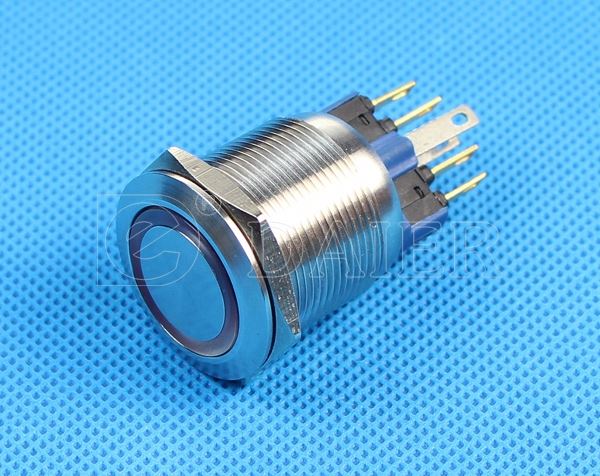

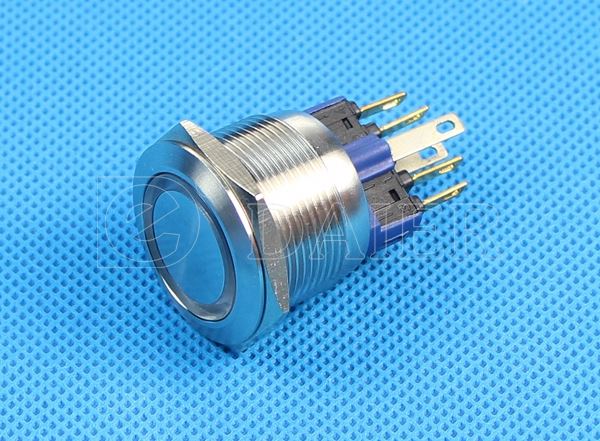

GQ22-11E
1NO 1NC Sliver Stainless steel Normally Open Momentary Switch
Specifications:
1. Rating: 5A 250V
2. Function: Momentary/Latching
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 100,000 Cycles
8. Operating Force: 5.5N
Push Button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
