Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD5-101
- Max. Current:
- 6A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- Rocker Switch
- Model:
- KCD5-101
- Fuction:
- ON-OFF
- Rating:
- 3A 250VAC; 6A 125VAC
- Housing Color:
- Black, White, Grey
- Button Color:
- Red, White, Black, Grey, Green
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 0.23 kg
- Package Type:

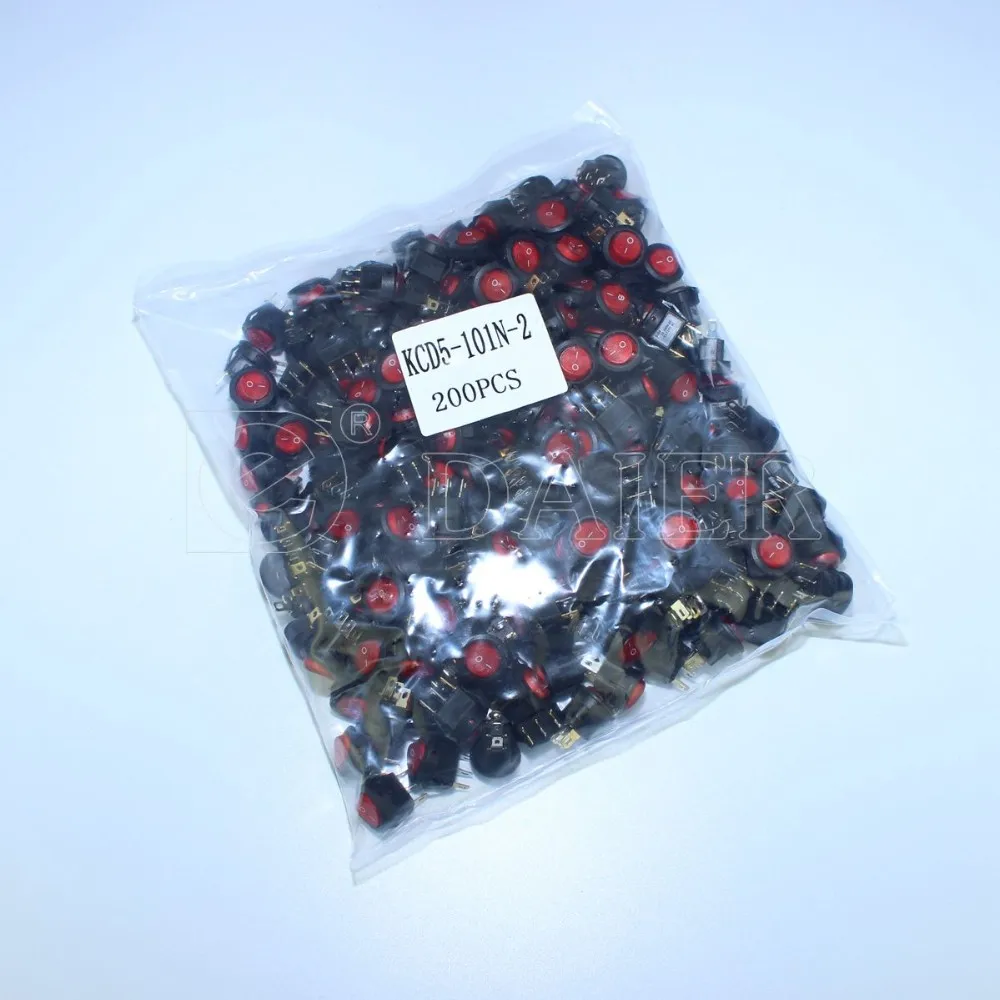

- 200pcs/box,1000pcs/carton of KCD5-101 2PIN Single Pole Mini ON/OFF Switch With Solder Terminal
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200000 >200000 Est. Time(days) 10 To be negotiated
Product Description

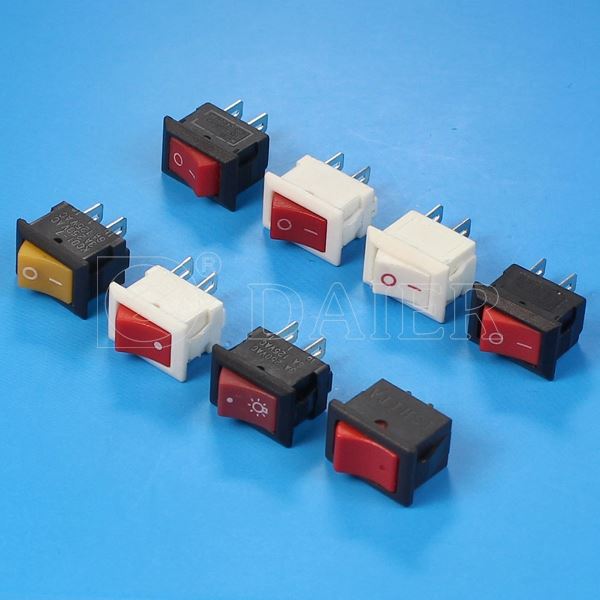

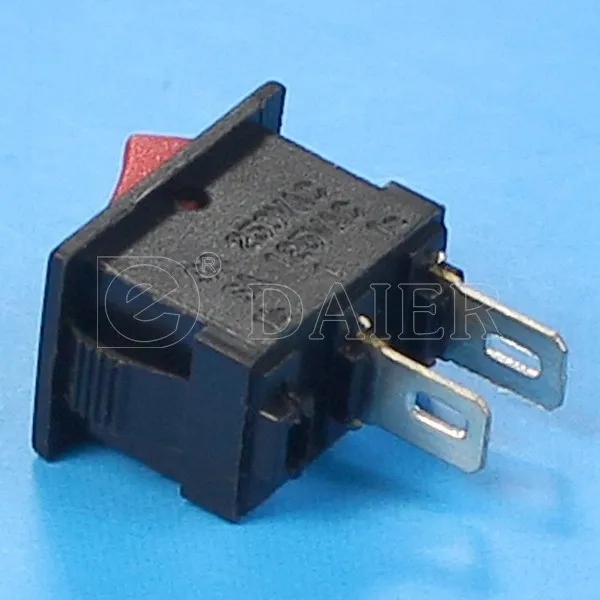

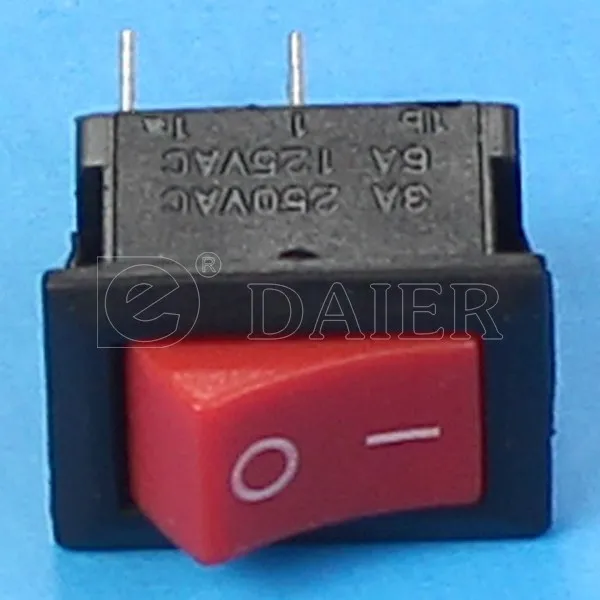

KCD5-101 2 Pin Rocker Switch:
Daier KCD5-101 miniature rocker switch offer a low switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
