Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD2-2-201NW
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles

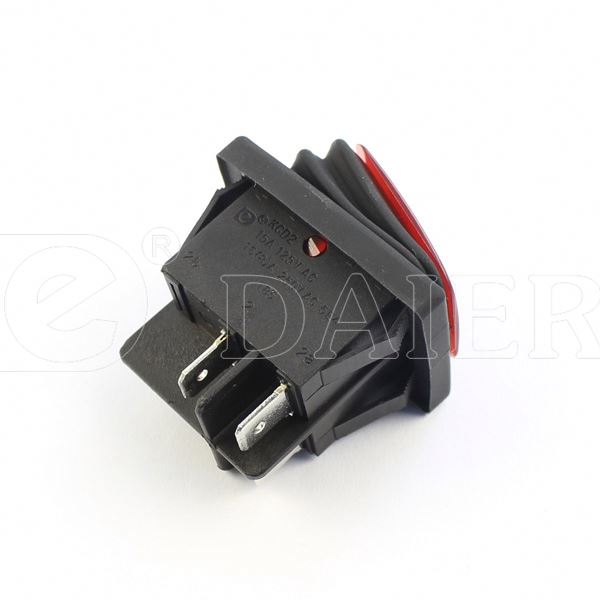

- Item:
- Rocker Switch
- Model:
- KCD2-2-201NW
- Fuction:
- ON-OFF
- Rating:
- 16A 250VAC; 20A 125VAC
- Housing Color:
- Black
- Button Color:
- Red, Green, Orange, White, Blue
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC,TUV
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 1.0 kg

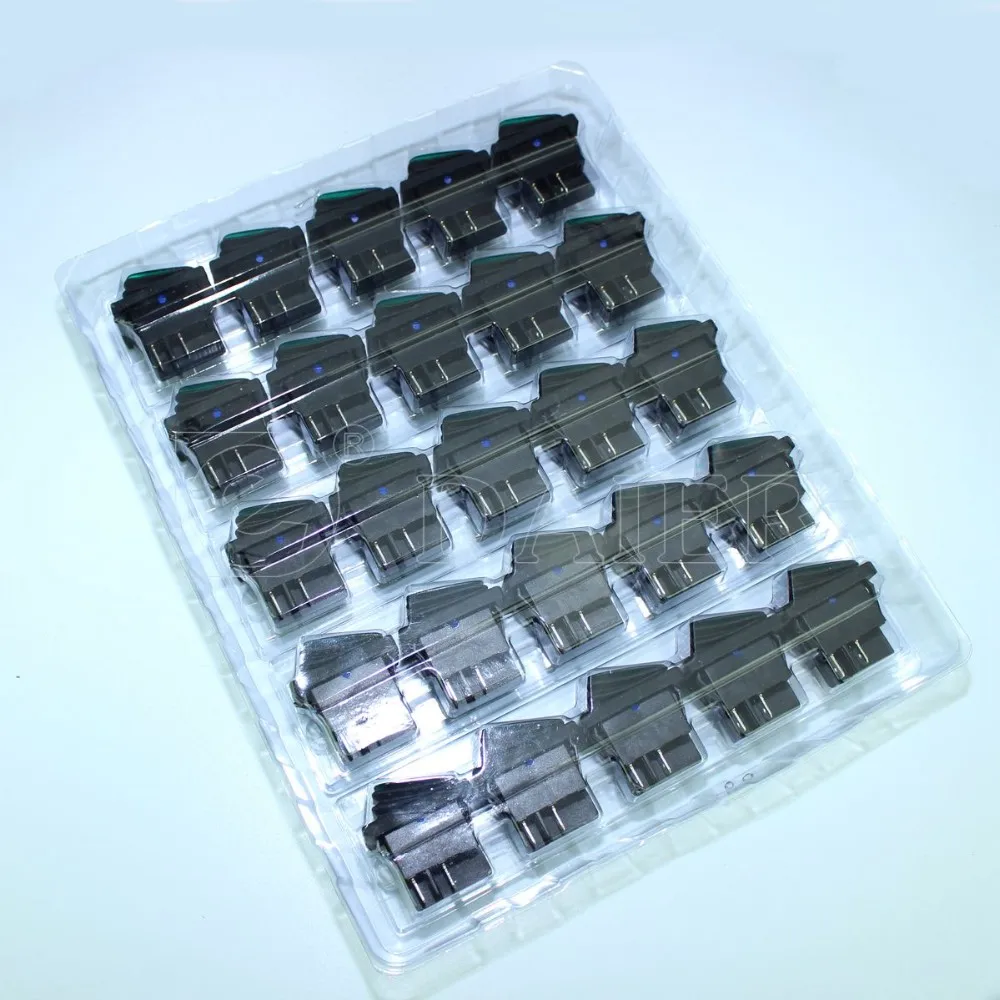

- Package Type:
- 100pcs/box,1000pcs/carton of Waterproof 4PIN ON OFF Rocker Switch Snap In With Solder Terminal
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
