Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KW4-Z2F
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+85℃, -25℃~+85℃
- Protection Level:
- IP40
- Item:
- 5A Single Pole 3 Pin Solder Terminal Middle LeverDC Micro Switch
- Rating:
- 5A 250VAC
- Housing Color:
- Green, Black
- Terminal:
- Solder Terminal
- Lever:
- Short Lever
- Operating Force:
- 1~2N
- Switch Function:
- SPDT
- Certification:
- TUV
- Electrical Life:
- ≥10000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.0 kg

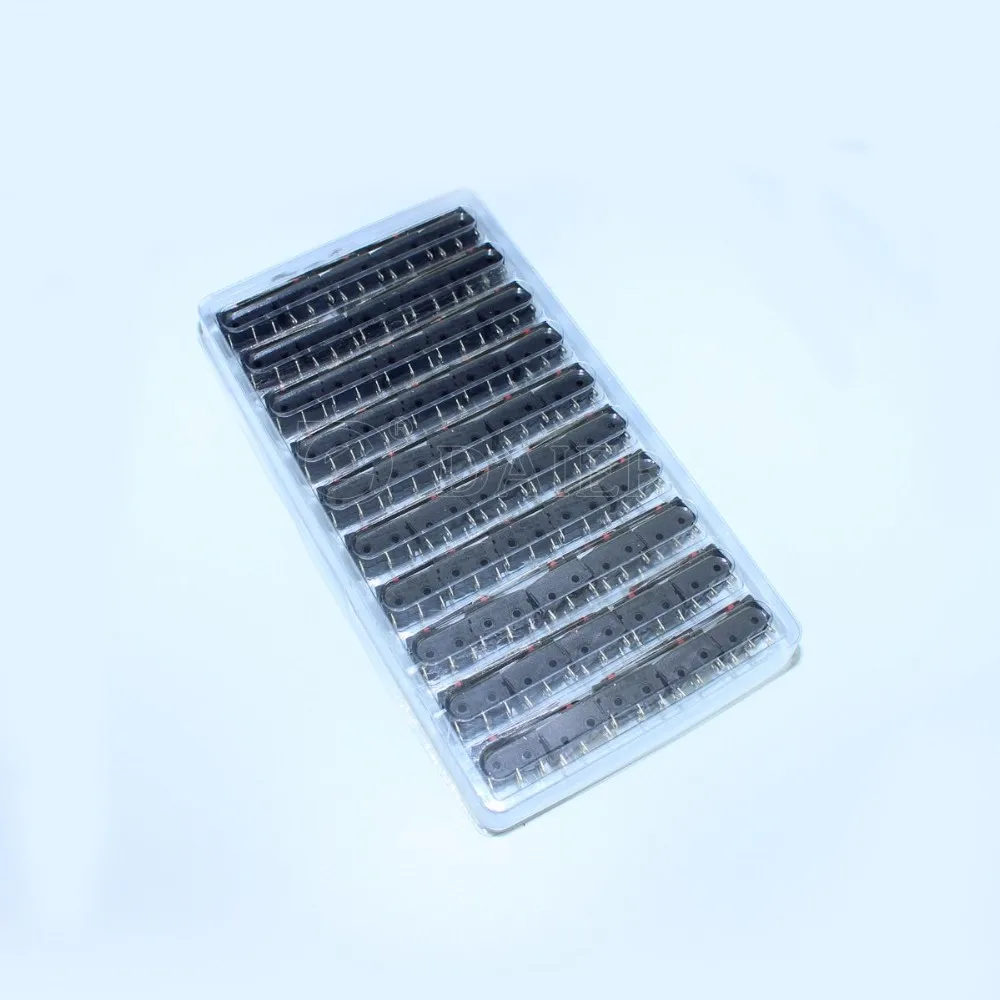

- Package Type:
- 100pcs/box,1000pcs/carton of 5A Single Pole 3 Pin Solder Terminal Middle LeverDC Micro Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
Product Description

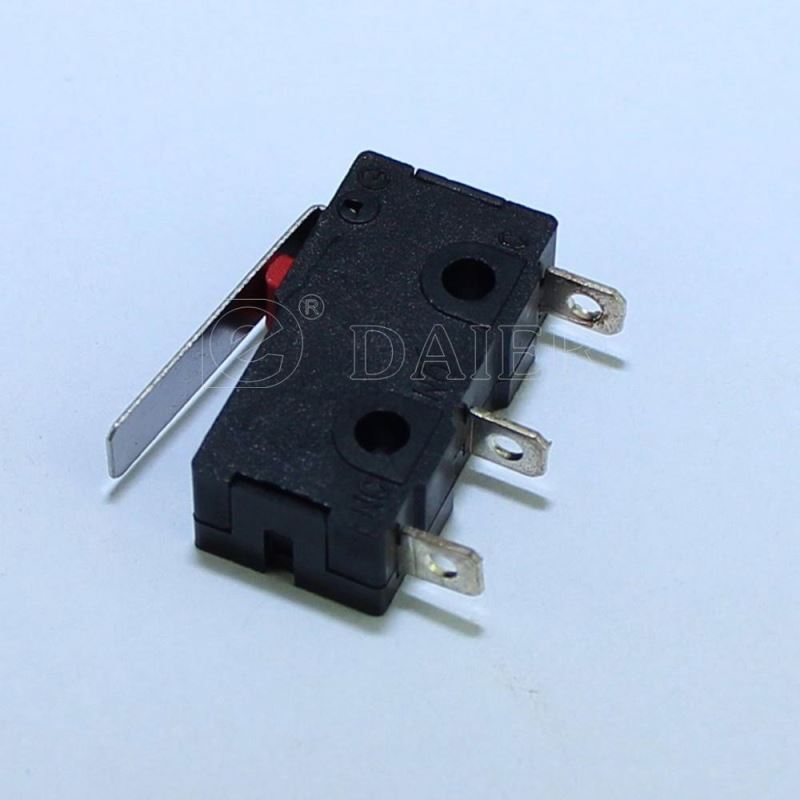

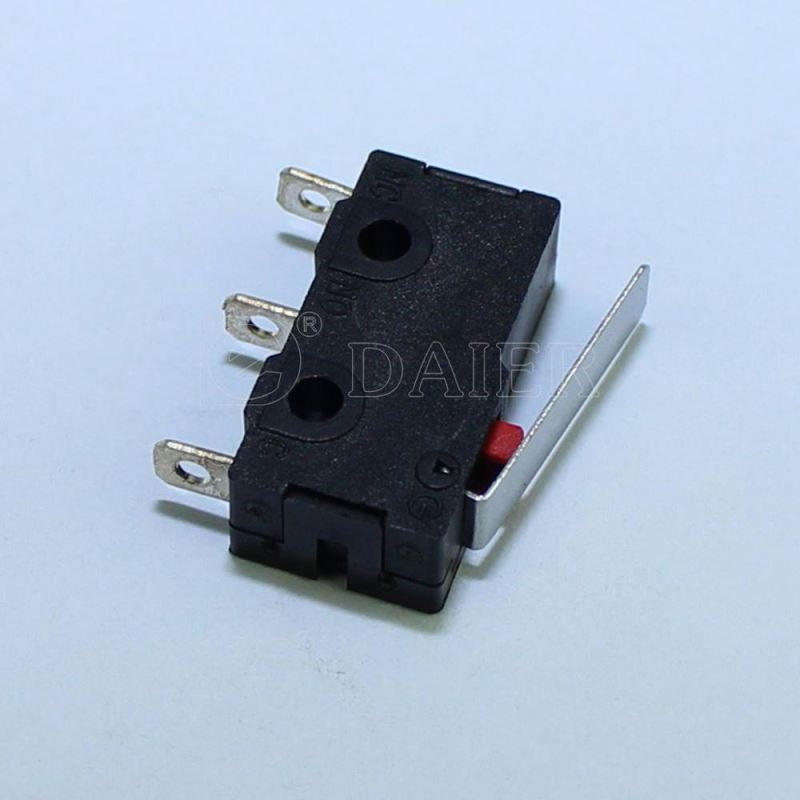

KW4 type micro switch is a safe and reliable small switch.
Compact structure, with a small contact gap, fast action, high sensitivity and small movement stroke characteristics.
Long life and high reliability.
Terminals are fully equipped with various types of booms.
Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation and other fields.
