Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- WS2-Z6-W200200
- Max. Current:
- 10A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- T85℃, -25℃~+75℃
- Protection Level:
- IP67
- Item:
- WS2-Z6-W200200
- Rating:
- 10A 250VAC
- Housing Color:
- Black
- Lever:
- Arc Lever
- Wire Length:
- 200 MM
- Operating Force:
- 0.5N/1N/1.5N/2N/3N
- Switch Function:
- SPDT
- Certification:
- TUV
- Electrical Life:
- ≥10000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 31X17X2 cm
- Gross weight per batch:
- 2.0 kg
- Package Type:

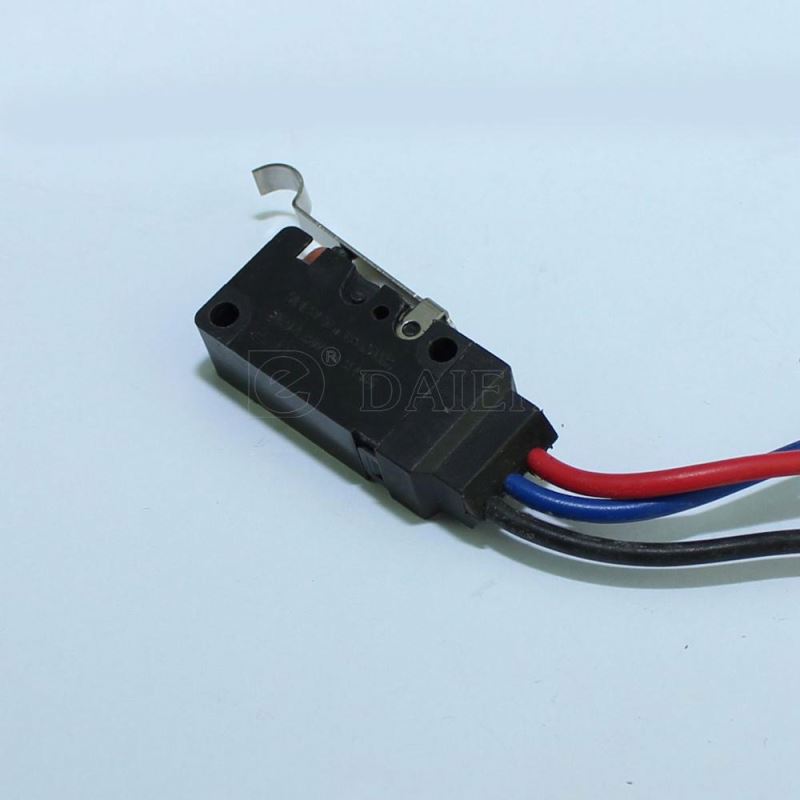

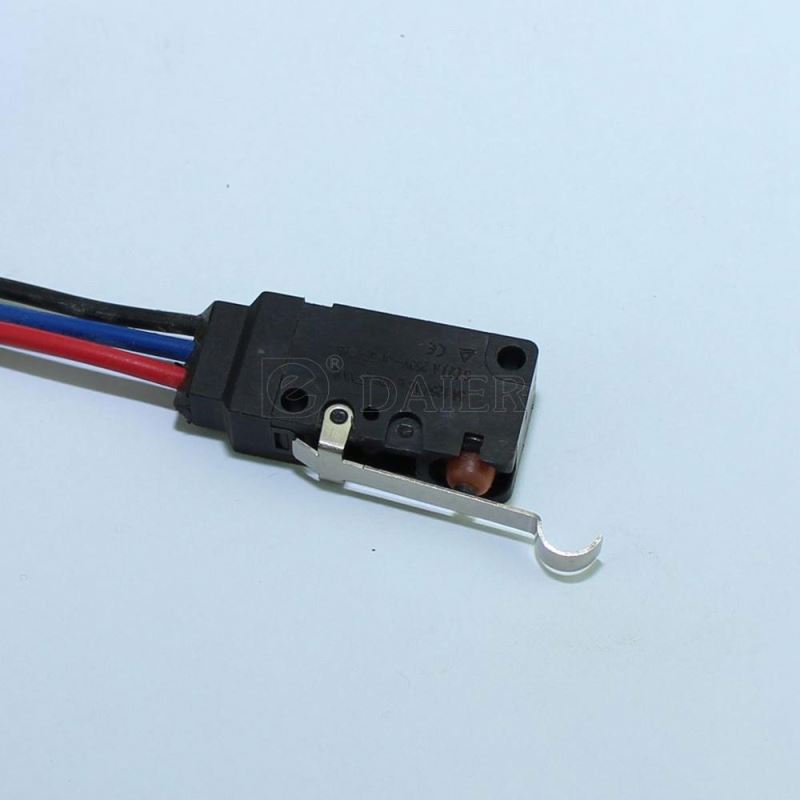

- 100pcs/box,5000pcs/carton of WS2 10A Single Pole ON OFF Momentary DC Micro Switch With Arc Lever
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
