Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KN3C-101MP
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Standard:
- IEC Standard
- Certificate:
- CE,Rohs,CQC
- Color:
- Brown BLACK
- Operating Temperature:
- -25℃~+85℃
- Terminal:
- PC Terminal
- Rating:
- 20A 125VAC
- Contact Resistance:
- 50m Ohm Max
- InsulationResistance:
- 500V DC 1000m Min
- Dielectric Strength:
- 1500V AC 1 Minute
- Certifications:
- CE TUV CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X20X10 cm
- Gross weight per batch:
- 3.0 kg
- Package Type:

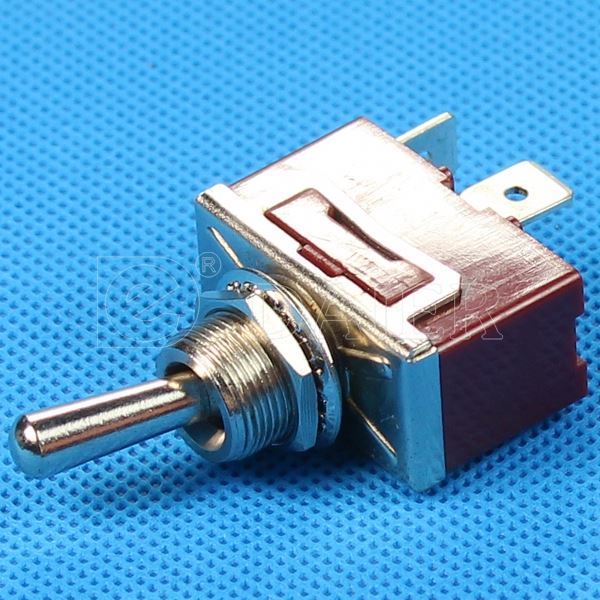

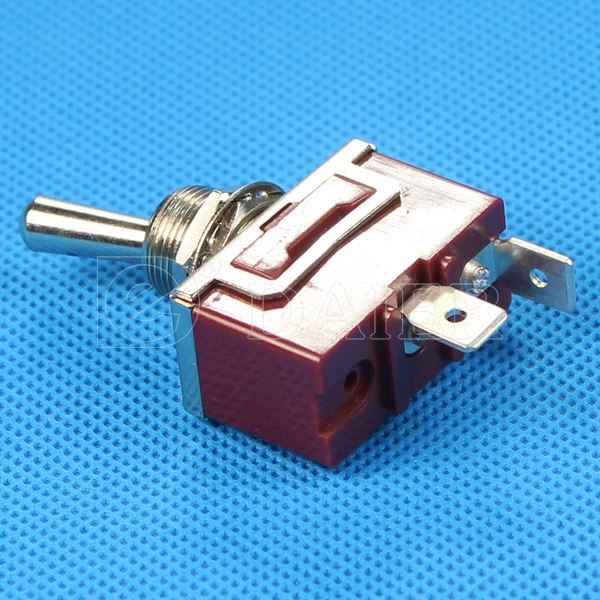

- 20pcs in a box,Daier spst on off toggle switch KN3C-101MP
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 5 To be negotiated
