Click on the image to view the original image
Input: 24V 5A
Ouput: 50V 1.4A.
Product Description

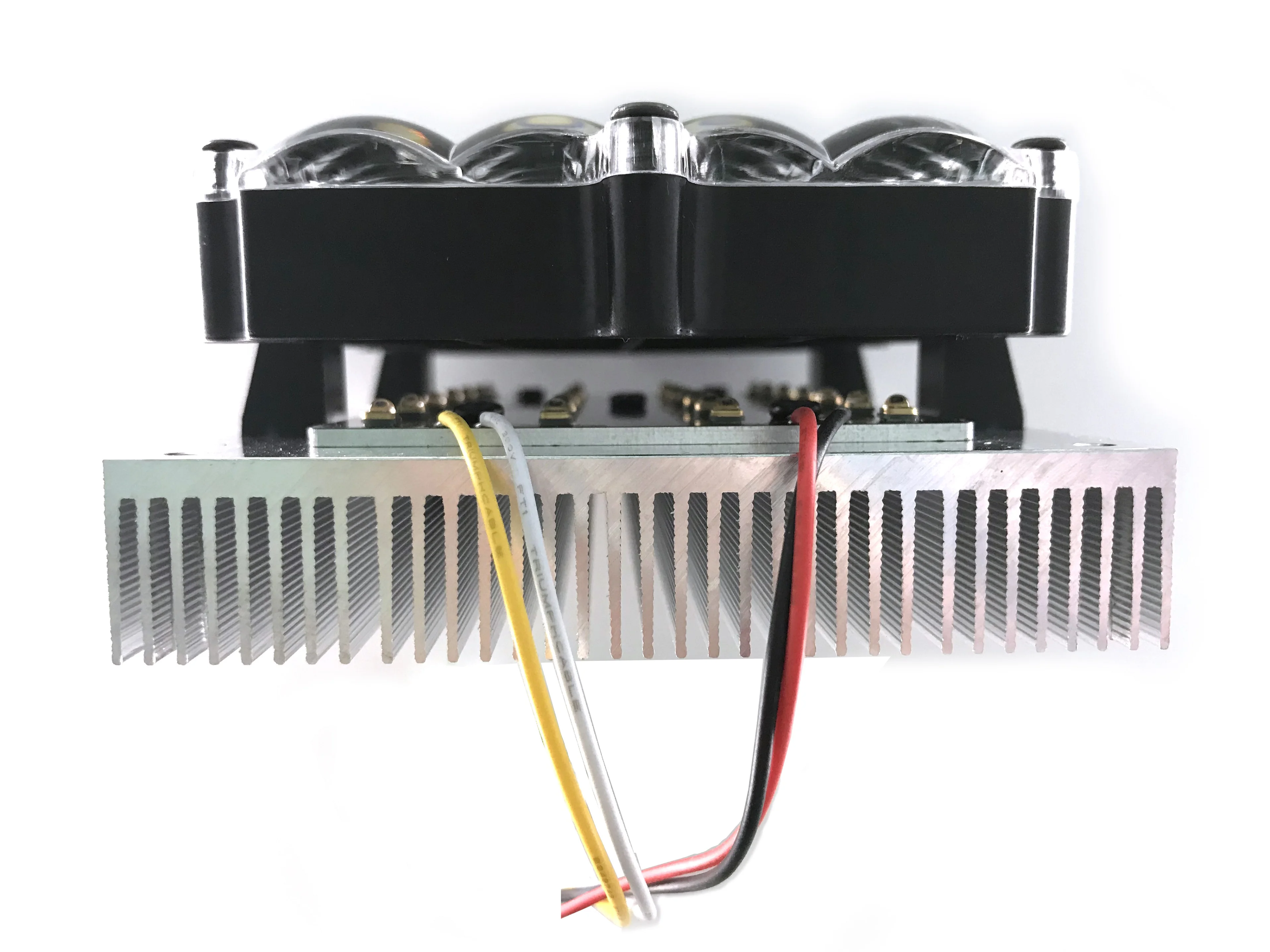

405 nm Parallel UV light soure for 5.5"/6" LCD
Size: | 154.75*102*54.05 mm |
Power | 70W |
UV light Wavelength | 405 nm |
Distance between Lens top and LCD: | 35~36mm |

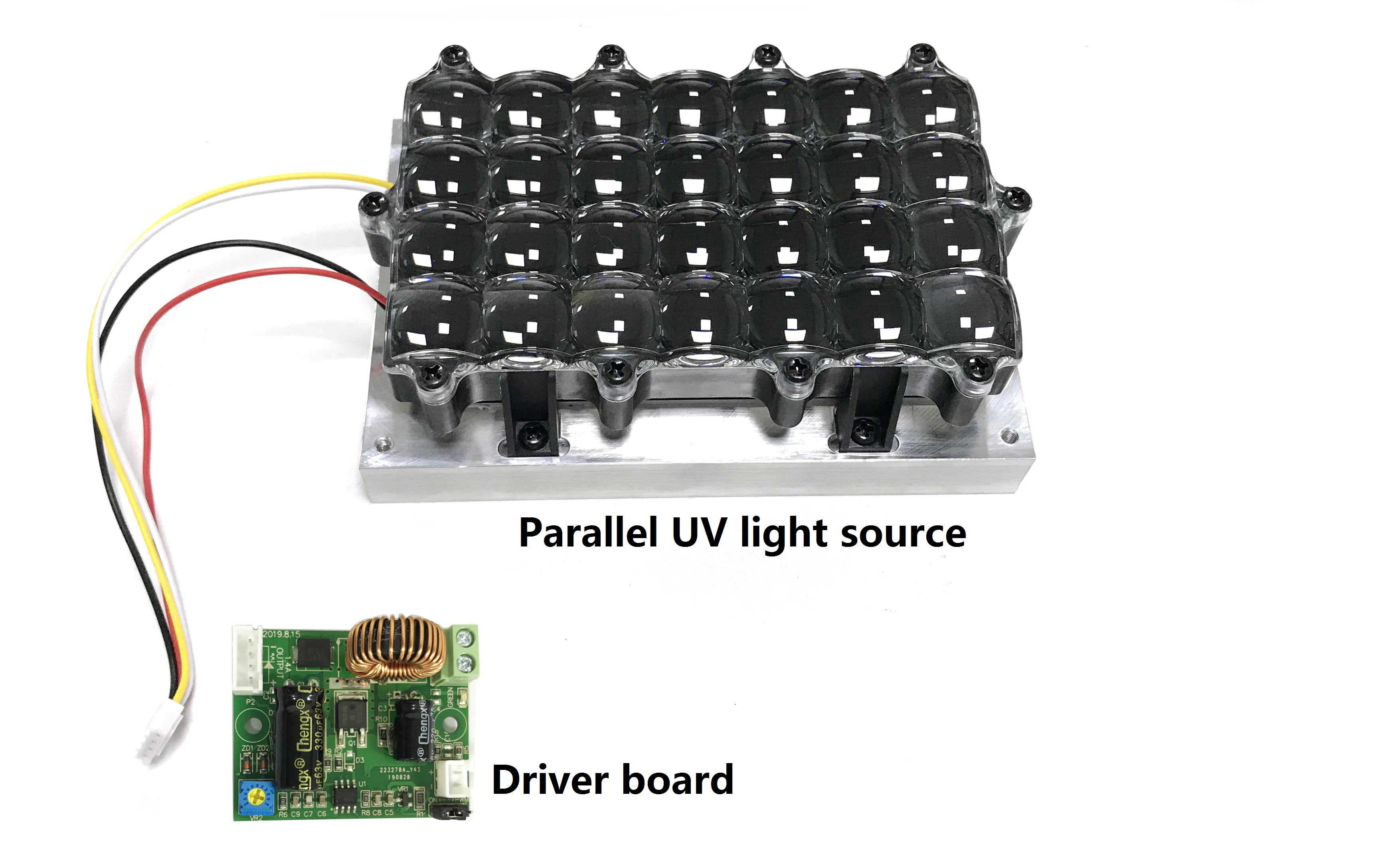

Driver board for UV ligth source
Distance between lens top to LCD:
Effect change, distance from 1mm to 35mm,
Suggested distance: 35~36 mm
About Us
We are professional display solution company for 3D printer.
Professional UV LED designer and manufacture. Provide excellent uv led curing solution.
We provide LCD, control kit, parallel UV light source.
Professional UV LED designer and manufacture. Provide excellent uv led curing solution.
Can customized different size of UV LED curing light as your required.
We obtained patent certificate in January 2019
Patent number: ZL 2019 3 0018260.5
Patent number: ZL 2019 3 0018797.1
Patent Certificate
LCD for 3D printer
please click the module number for more product details:
LCD | Size | Resolution | Pixel Pitch(um) | Description |
5.5" | 1440*2560 | 47.25*47.25 | Original LCD,can be backlight removed | |
5.5" | 1440*2560 | 47.25*47.25 | LCD without backlight,with optically bonded cover glass on the top. | |
5.5" | 1440*2560 | 47.25*47.25 | LCD without backlight,without PR film,with optically bonded 3mm glass on the back. | |
10.1" | 1600*2560 | 84.6*84.6 | Original FOG,without backlight | |
12.5" | 3840*2160 | 72*72 | Can be backlight removed | |
13.3" | 3840*2160 | 76.5*76.5 | Original FOG,without backlight.4k monochorme LCD | |
15.6" | 3840*2160 | 90*90 | Original FOG(Open cell) |
