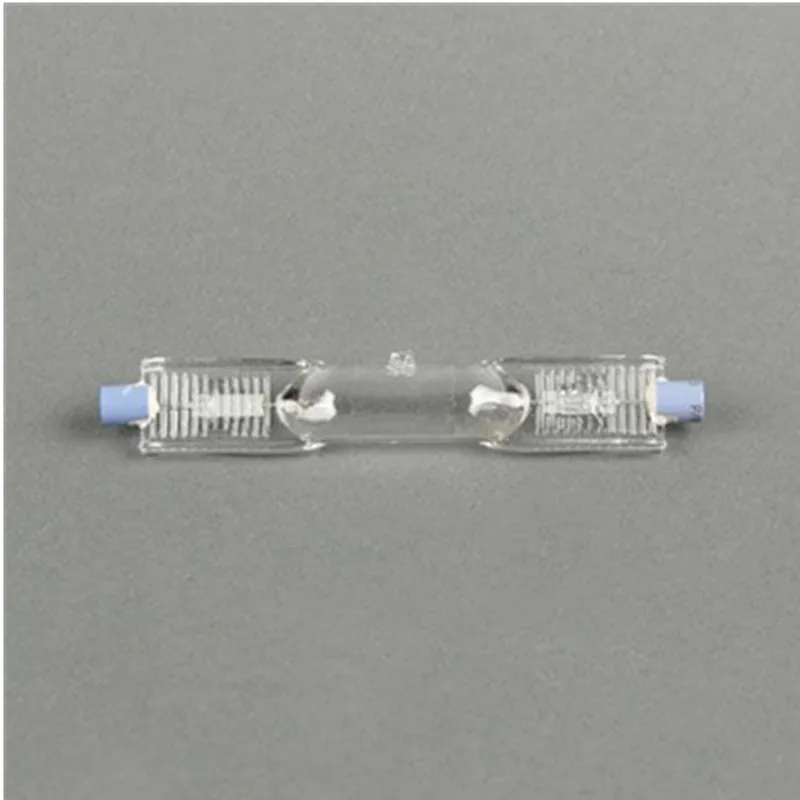

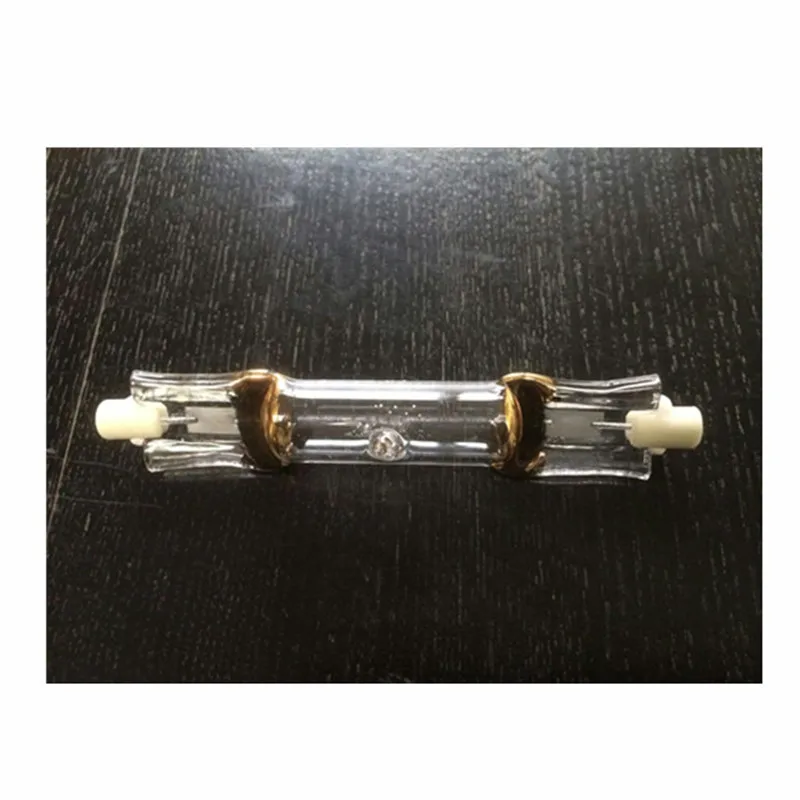

Name: Dymax ECE Series 400W UV Light Curing Lamps replacement UV Bulb
Basic info:
Power:400W
Total Length:120mm
Voltage:220V
Style:pinch seal
Application areas:
Such as UV Hand held machine ,UV ink, UV glue, UV painting, UV coating etc.
Other industries like paper glazing, printing circuit board, decoration, wooden floor and flexible packaging, color printing, electrons, glassed, furniture and etc.
Various UV lamp is available in stock.
Products character:
1 High quality and stable performance.
2 The average lifetime is more than 800 hours.
3.Quick start with kr85 inside the tube.
4.Machine work instead of hands with high efficiency
5.Accept OEM order just give us your parameter below
Our Advantages:
1)Factory first hand price with over ten years experience producing lamps
2)UV lamps exported in global market ,such as USA/Russia/Brazil/Thiland/India.......
Different UV Lamps data sheet :
| Number | Power(w) | current(a) | Total Length(mm) | Arc Length(mm) | Diameter(mm) | Pipe Pressure(v) |
| 1 | 250 | 5 | 115 | 45 | within 25 | 120 |
| 2 | 500 | 4.5 | 145 | 45 | within 25 | 140 |
| 3 | 1000 | 8.1 | 230 | 125 | within 25 | 135 |
| 4 | 1000 | 8.1 | 335 | 190 | within 25 | 135 |
| 5 | 2000 | 7.5 | 400 | 260 | within 25 | 300 |
| 6 | 3000 | 5 | 620 | 460 | within 25 | 700 |
| 7 | 3000 | 5 | 360 | 260 | within 25 | 700 |
| 8 | 3200 | 12.2 | 360 | 260 | within 25 | 290 |
| 9 | 4000 | 6.3 | 664 | 508 | within 25 | 670 |
| 10 | 5000 | 7.5 | 775 | 625 | within 25 | 750 |
| 11 | 5000 | 6.3 | 804 | 653 | within 25 | 850 |
| 12 | 5600 | 7.2 | 826 | 673 | within 25 | 950 |
| 13 | 6000 | 7.5 | 910 | 745 | within 25 | 925 |
| 14 | 7500 | 8.8 | 803 | 653 | within 25 | 950 |
| 15 | 8000 | 7.5 | 1150 | 1000 | within 25 | 1200 |
| 16 | 8400 | 10.4 | 826 | 700 | within 25 | 950 |
| 17 | 9600 | 6.6 | 1387 | 1247 | within 25 | 1570 |
| 18 | 10400 | 5 | 1390 | 1270 | within 25 | 2100 |
| 19 | 11000 | 6.3 | 1575 | 1419 | within 25 | 1870 |
| 20 | 11200 | 7 | 1532 | 1400 | within 25 | 2000 |
| 21 | 13000 | 7.5 | 1807 | 1651 | within 25 | 1870 |
| 22 | 20000 | 10 | 1532 | 1400 | within 25 | 2000 |
