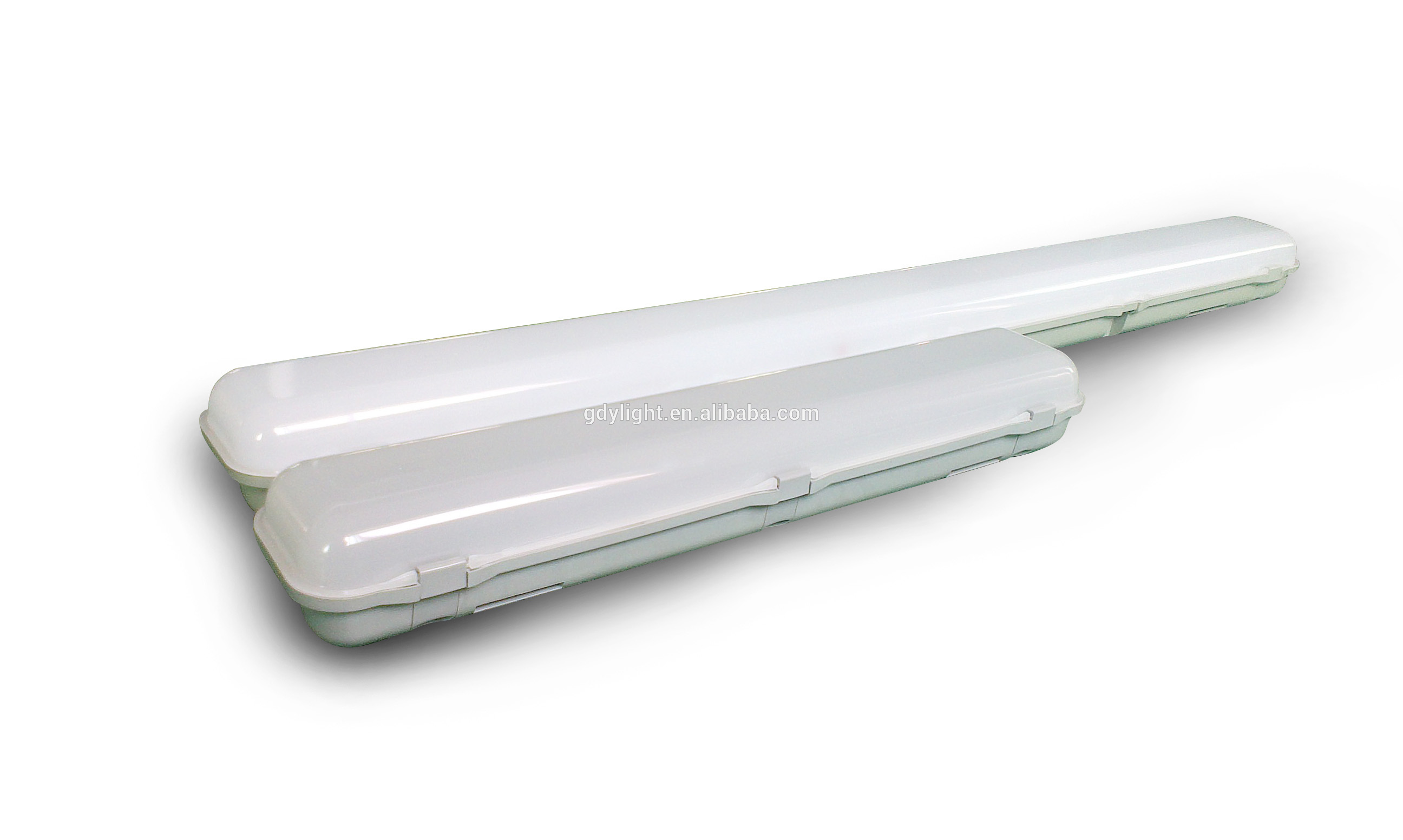

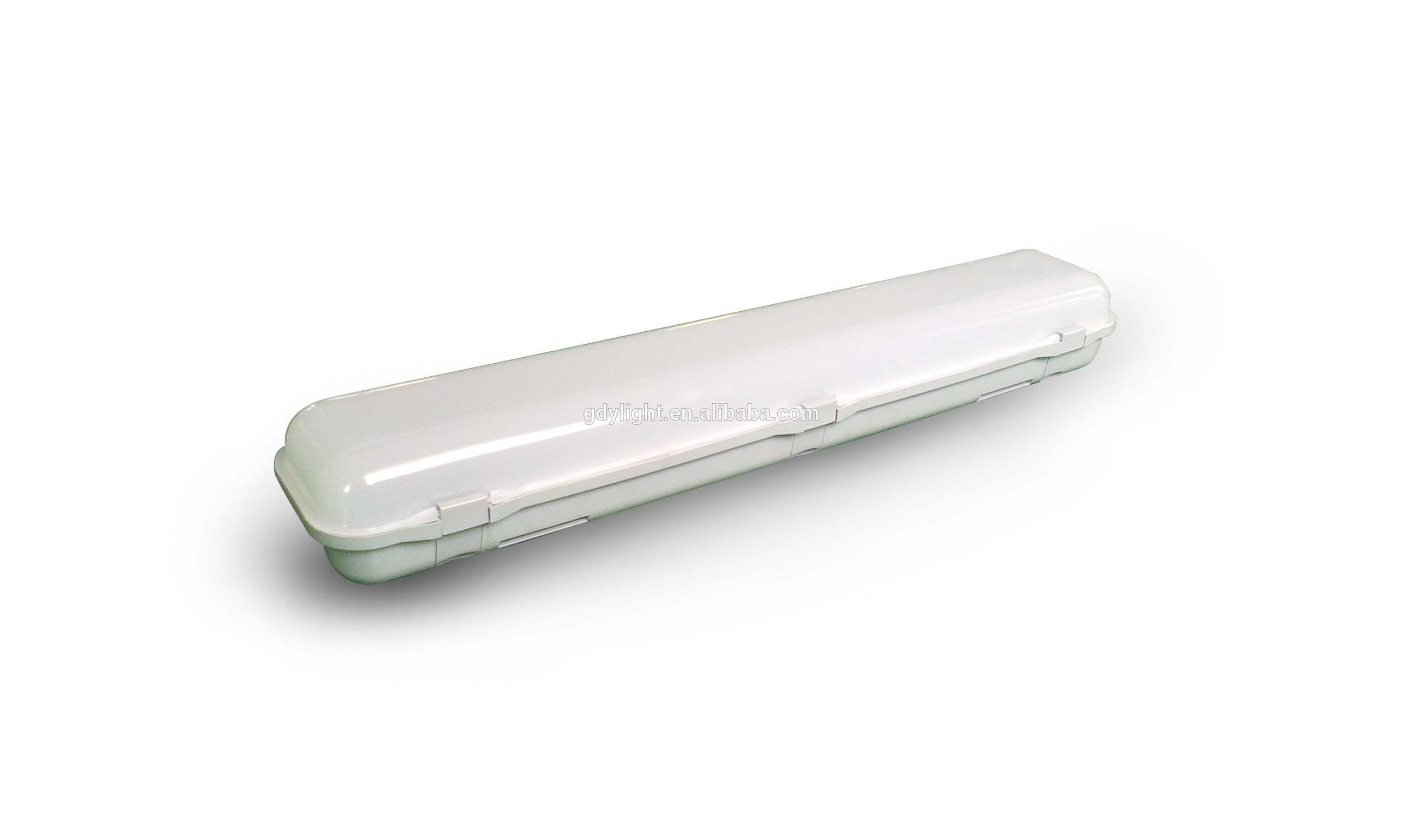

4ft LED Lighting Fixture IP65 with Emergency Battery Backup 36w 1200mm T8 LED tube fixture DIP motion sensor
1. Water-proof(IP65) LED tube fixture;
2. Dimension: L1265 x W105 x H95mm;
3. Maintained emergency light: 30% output light, over 3 hours emergency time when AC is power off;
4. Anti-glare design: against from the dizzy light;
5. Beam angle: up to 120°;
6. Light source: LED SMD 2835;
7. High Luminous efficacy;
8. 2 x 18W is to replace the traditional 2 x 40W fluorescent tube;
9. Luminous Flux over 1300LM, illuminance over 300Lux @ 1meter in the center;
10. Do not need starter and ballast, reduced maintenance cost;
11. Energy saving;
12. Environmental friendly;
13. No UV, no infrared, no other Hazardous Substances;
14. No noise, no flicker, resistance from vibration;
15. CE&ROHS compliant;.
16. Five years warranty;.
Electrical parameters:
Input voltage: ( 50/60Hz) AC 176-264V
Power consumption: 20W
PF: >0.9
LED Driver output voltage: 36VDC
LED Driver output current: 420mA ±20mA
Light source: LED SMD 2835
CCT: 6000K (3000K /4000K optional)
Flux luminous: 1300LM
View angle: 120°
Housing material: Polycarbonate base,Frosted Polycarbonate cover
Battery: 9.6V 3.2AH Ni-MH rechargeable
Emergency output: 30% nominal power
Emergency duration: >3 Hours
Charge time: < 12Hours
IP Rating: IP65
LED indication: Red: charging;
green: fully charged;
yellow: battery fault or disconnected
Test button: AC power on: Push and hold the button to enter emergency mode;
release button to come back AC power mode
Life Span: Up to 50000 hours
Operation temperature: -20degC to 40degC
Dimension: 1280mm*160mm*105mm
Package: 1300x175x135mm
Net Weight: 2.8KG
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
