1.Energy saving;
2.Environmental friendly;
3.No UV, no infrared, no other Hazardous Substances;
4.No noise, no flicker, resistance from vibration;
5.Aluminum PC board, excellent for heat sink;
6.High bright LED, high Lumen output;
7.High diffusion PC diffuser: bright, soft and even light;
8.(Optional) Maintained emergency, 3 hours duration;
9.(Optional) Microwave motion sensor, more sensitive than PIR sensor;
10. Water, dust and corrosion tri-proof;
11.CE, SAA compliant;
12.Three years warranty.
| Input voltage ( 50/60Hz) | AC100 -240V |
| Power consumption | 20W |
| PF | >0.9 |
| LED Driver output voltage | 36V DC |
| LED Driver output current | 500mA ±25mA |
| Light source | 2835 SMD LED |
| CCT | 3000K /4000K /6000K |
| CRI | Ra> 80 |
| Flux luminous | 1700 -1800 |
| Housing material | Polycarbonate base,milky PC diffuser |
| Life Span | Up to 50000 hours |

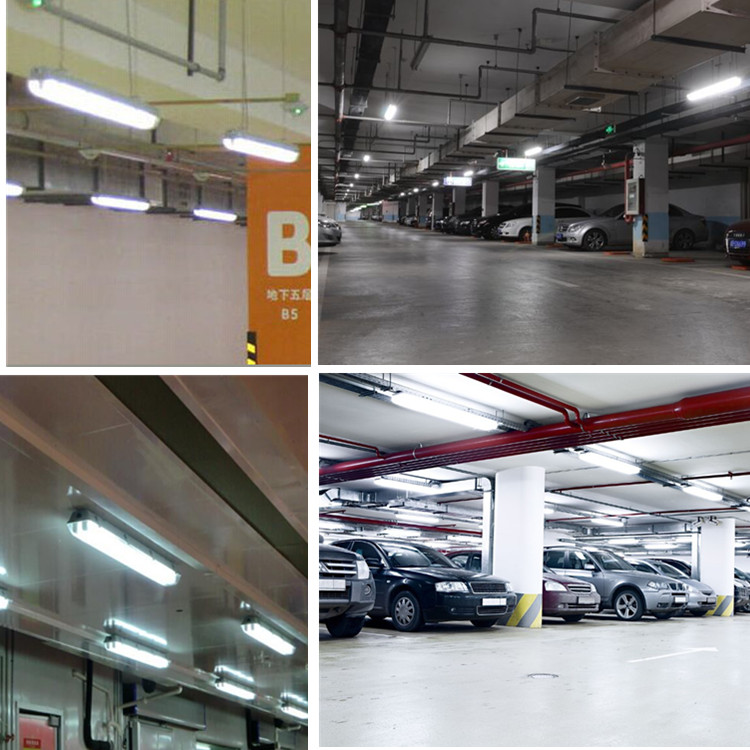

| Installation way | Hanging, ceiling/wall mounted |
| Operation temperature | -20degC to 40degC |
| Dimension | 667mm*118mm*92mm |
| Package | 692 x166x110mm |
| Net Weight | 1.3KG |
| Emergency version: | |
| Type | Maintained |
| Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; |
| Test button | AC power on: Push and hold the button to enter |
Microwave Sensor dimmable version: | |
| Sensor range | 180 degree; 0.5 -8M(adjustable) |
| Sensing interval | 10s to 5min max (adjustable) |
| Sensing interval output | 25% nominal power (100-25%) |
