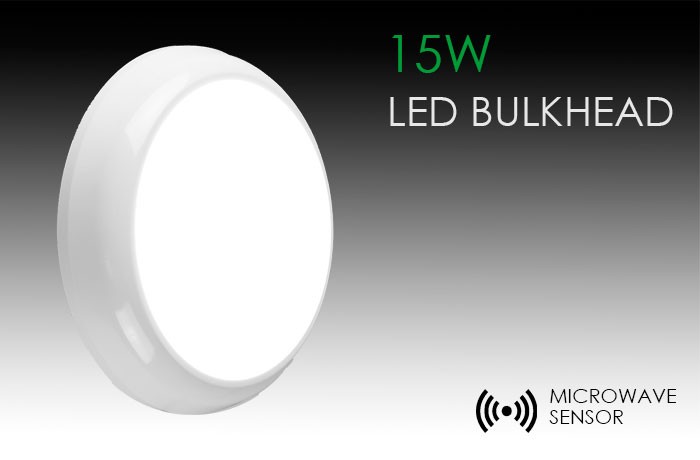

IP65 W service lobby modern design round ceiling lamp
- LED lighting source, green and energy saving;
- IP65, available for outdoor use;
- Die-casting aluminum body and PC diffuser;
- 3 hours emergency (option available);
- c/w M20 x 1.5 IP65 Gland;
- Microwave/ Motion sensor;
--Automatic dims when detected area is unattended
--Adjustable range (1-8m)
- Anti-glare design: against from the dizzy light;
- No UV, no infrared, no other Hazardous Substances;
- No noise, no flicker, resistance from vibration;
- CE&ROHS compliant;
- Two years warranty.
| Standard Version: | |
LED Driver output voltage | DC 36V |
| LED Driver output current | 500mA ±25mA |
| Flux luminous | 2200~2400Lm |
Luminous efficacy | 120 Lm/W for GL2002CA/SA 110 Lm/W for GL2002EA/ESA |
View angle | 100° |
Housing material | Die-casting aluminum base , PC diffuser |
IP Rating | IP 65 |
Life Span | Up to 50,000 hours |
Operation temperature | -20 deg C to 40 deg C |
Package | |
Net Weight | 2.2 kg (approx) |
| |
Emergency Version: | |
Type | Maintained |
Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
Emergency output | 30% nominal power |
Emergency duration | >3 Hours |
Charge time | < 12Hours |
LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
Sensor Version: | |
Sensor Range |
180 degree; 0.5~8m (adjustable) |
Sensing Interval |
10s to 5min max (adjustable) |
Sensing Interval Output |
25% of nominal power |

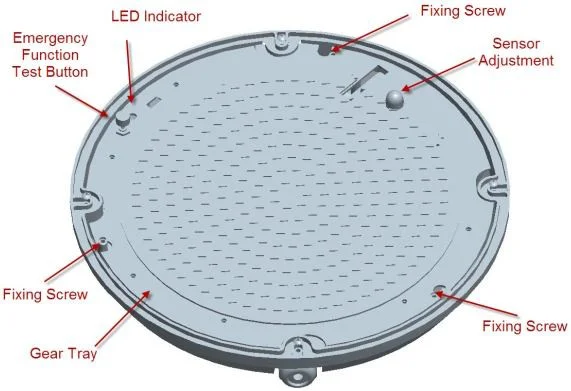

Mechanical Structure:
Product Dimensions (mm):
Induction process:
The sensor is an active motion detector, it emits high-frequency electro-magnetic waves (5.8GHz) and receives their echo. The sensor detects the change in echo from the slightest movement in its detection zone. A microprocessor then triggers the “switch light ON” command. Detection is possible through doors, panes of glass or thin walls.
The product can be applied in any area that is Low Occupancy or is a Transit Through Space such as fire stairs, undercover car parks, garbage rooms, service corridors, internal and external hallways, the back of house areas, etc.
OEM&ODM welcome, any your customized requirements, we can help you to design and manufacture.
Quality Warranty
All products have passed through the stringent professional testing, the life span up to 50000h. We have 3-5 years warranty.
Shipping Warranty
We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.
After-sale service Warranty
We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.
Replacement Warranty
Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
