Product Features:
LED lighting source, green and energy saving;
IP65 bulkhead, available to replace 2D fitting;
PC housing and PC diffuser;
3 Hours emergency(option available);
Microwave/ Motion sensor:
Automatic dims when detected area is unattended
Adjustable range (1-8m)
c/w M20 x 1.5 IP65 Gland;
Anti-glare design: against dizzy light;
No UV, no infrared, no other hazardous substances;
No noise, no flicker, resistance from vibration;
CE&ROHS compliant;.
Three years warranty;

Electrical parameters:
Input voltage: ( 50/60Hz) AC 100-240V
Power consumption: 12W (14W for emergency versions)
PF: >0.9
LED Driver output voltage: DC 36V
LED Driver output current: 300mA ±15mA
Light source: SMD LED
Color Temperature (CCT): 3000K /4000K/ 6000K (optional)
CRI: Ra>80
Luminous: Flux 1000-1200Lm
Luminous efficacy: 110Lm /W for GL1201CA
                                110Lm /W for GL1201SA
                                100Lm /W for GL1201EA
                                100Lm /W for GL1201ESA
View angle: 110°
Housing material: PC housing , PC diffuser
IP Rating: IP65
Life Span: Up to 50,000 hours
Operation temperature: -20degC to 45degC

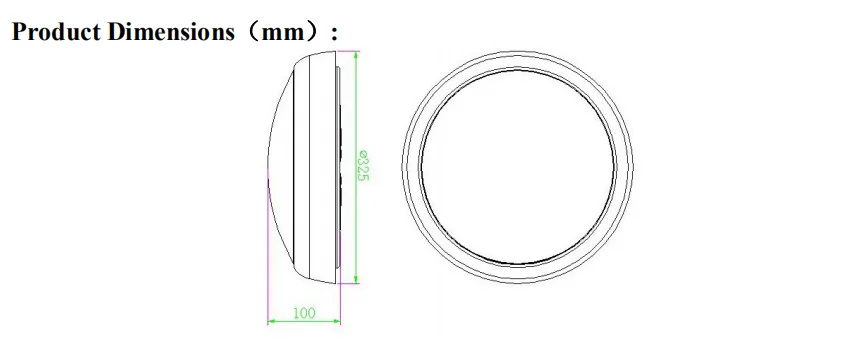

Dimension: 325*100mm
Package: 330*330*110mm
Net Weight: 1.8KG(approx)

Emergency
Type: Maintained
Battery(High-Temperature): 9.6V 1600MAH Ni-MH rechargeable
Emergency output: 30% nominal power
Emergency duration:  >3 Hours
Charge time:  < 12Hours
LED indication: Red: charging;

                         Green: fully charged;
                         Yellow: battery fault or disconnected
Test button:  AC power on: Push and hold the button to enter
emergency mode; release button to come back AC power mode

Microwave Sensor:
Sensor range: 180 degree; 0.5 - 8M(adjustable)
Sensing interval: 10s to 5min max (adjustable)
Sensing interval: output 25% of nominal power

Our service:

OEM&ODM welcome, any your customized requires, we can help you to design and manufacture.

Quality Warranty

All products passed through the stringent professional testing, the life span up to 50000h. We have 2-5 years warranty.

Shipping Warranty

We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.

After-sale service Warranty

We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.

Replacement Warranty

Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
