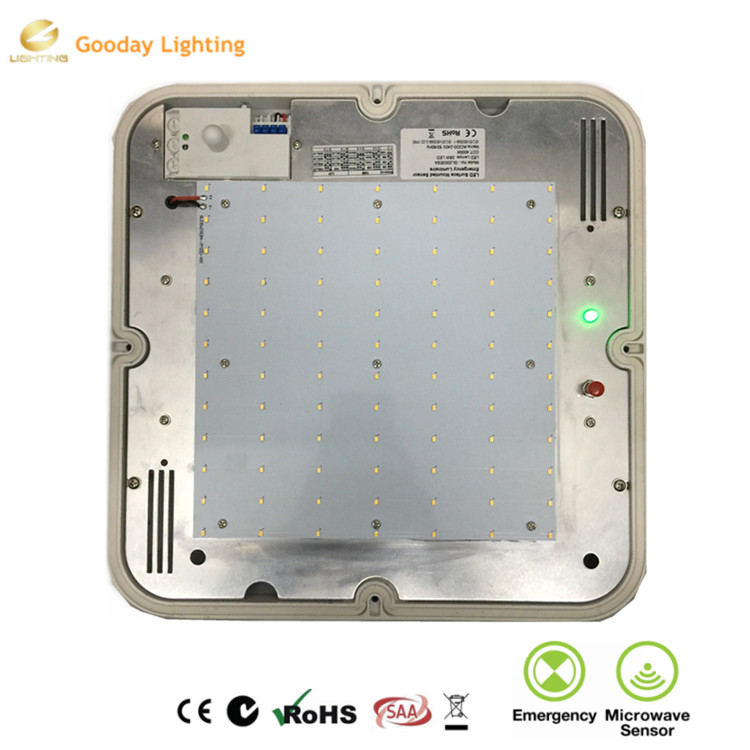

Die Casting AluminumLED IP65 led sensor square bulkhead light fitting
Click on the image to view the original image
Product： views：3Die Casting AluminumLED IP65 led sensor square bulkhead light fitting
Branch： Gooday
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:11
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
2400
CRI (Ra>):
90
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Die-cast aluminum base , PC prismatic diffuser
IP Rating:
IP65
Certification:
C-tick, CCC, CE, EMC, LVD, RoHS, SAA, VDE
Place of Origin:
Guangdong, China
Brand Name:
Gooday
Model Number:
GL2003CA/SA/EA/ESA
Application:
project light
LED Light Source:
SMD 2835
Lamp Luminous Efficiency(lm/w):
120
Color Temperature(CCT):
3000K 4000K 6000K
Warranty:
5Years
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
330x330x110mm
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 500 >500
Est. Time(days)7To be negotiated

LED IP65 led sensor square bulkhead light fitting







Features



  • LED lighting source, green and energy  saving;
  • IP65, available for outdoor use;
  • Die-casting aluminum body and PC diffuser;
  • 3 Hours emergency(option available);
  • Microwave/ Motion sensor:

              Automatic dims when detected area is unattended

              Adjustable range (1-8m)

  • c/w M20 x 1.5 IP65 Gland;
  • Anti-glare design: against dizzy light;
  • No UV, no infrared, no other hazardous substances;
  • No noise, no flicker, resistance from vibration;



Specifications



  • PF: > 0.9
  • Beam Angle: 120°

  • LED Driver output voltage: DC36V

  • LED Driver output current: 500mA ±25mA
  • Dimension: 325x100mm
  • Package: 330*330*110mm
  • Net weight: 3.05kg (approx)

           For emergency version----------------------------------------------------------------------------------------------------------------------

  • Type: Maintained
  • Battery (high temperature): 9.6V 3.2AH Ni-MH rechargeable
  • Emergency output: 30% nominal power
  • Emergency duration: > 3 hours
  • Charge time: < 12 hours
  • LED indication:

    Red: charging; Green: fully charged; Yellow: battery fault or disconnected

  • Test button:

    AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode







    For sensor version------------------------------------------------------------------------------------------------------------------------

  • Sensor range: 180 degree; 0.5 - 8M(adjustable)
  • Sensing interval: 10s to 5min max (adjustable)
  • Sensing interval output: 25% of nominal power



Detailed Images









        Mechnical structure:











        Dimensions(mm):











      Induction Process:











Application







The product can be applied as emergency and sensor corridor lighting or lobby lighting:



















5. Our Service





OEM&ODM welcome, any your customized requires, we can help you to design and manufacture.



Quality Warranty

All products passed through the stringent professional testing, the life span up to 50000h. We have 2-5 years warranty.



Shipping Warranty

We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.



After-sale service Warranty

We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.



Replacement Warranty

Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
