Features:
1. In theory, the product is suitable for refit of any vehicles. What needs to be done is fi gauge head and magnetic steel. The Odometer is of electro-magnetic induction type (Generally, front wheel can be refitted) and easy to install.
2. The Odometer adopts hall probe with magnet and friction and touch should be avoided between them.
3. Engine speed originates from ignition signals. Generally, tachometer cable connects the ignition cable of magnetor, but some others connects rectifier.
4. With fuel capacity display. Can connect the original fuel sensor.
5. Press left button and three square frames will display on the gauge. Then press two buttons simutaneously to start time adjustment and do the same to stop the adjustment.
6. If the car is refitted, please do not directly connect enon headlight to its cable, for the high voltage may burn out the high beam light and more severe to burn out the gauge. Can connect the control circuit.
Color: Black
Dimensions: about 16 8 4 cm
Material: Plastic
Other parameters:
about 2.5" LCD display screen
Rotating speed display: 0-111000r/min
Headlight, turn signal light and other working indicators.
Wiring:
Orange / sky blue line connects turn lights, dark blue line connects low beam light, blue and white line connects water temperature, yellow and white line connects gas sensors, black and yellow line connects pulse speed, the red wire connects clock, the green wire to negative pole, black wire connects switch lock wire, green and yellow wire to the handbrake parking lights, green / white magnet steel to induction line.
1 Motorcycle Odometer Speedometer
1 Induction line
1 Accessory
1. In theory, the product is suitable for refit of any vehicles. What needs to be done is fi gauge head and magnetic steel. The Odometer is of electro-magnetic induction type (Generally, front wheel can be refitted) and easy to install.
2. The Odometer adopts hall probe with magnet and friction and touch should be avoided between them.
3. Engine speed originates from ignition signals. Generally, tachometer cable connects the ignition cable of magnetor, but some others connects rectifier.
4. With fuel capacity display. Can connect the original fuel sensor.
5. Press left button and three square frames will display on the gauge. Then press two buttons simutaneously to start time adjustment and do the same to stop the adjustment.
6. If the car is refitted, please do not directly connect enon headlight to its cable, for the high voltage may burn out the high beam light and more severe to burn out the gauge. Can connect the control circuit.
Color: Black
Dimensions: about 16 8 4 cm
Material: Plastic
Other parameters:
about 2.5" LCD display screen
Rotating speed display: 0-111000r/min
Headlight, turn signal light and other working indicators.
Wiring:
Orange / sky blue line connects turn lights, dark blue line connects low beam light, blue and white line connects water temperature, yellow and white line connects gas sensors, black and yellow line connects pulse speed, the red wire connects clock, the green wire to negative pole, black wire connects switch lock wire, green and yellow wire to the handbrake parking lights, green / white magnet steel to induction line.

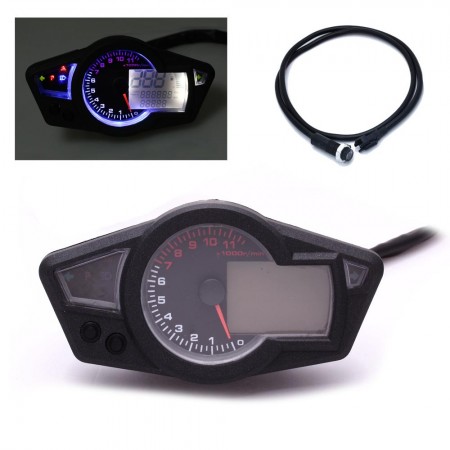

1 Motorcycle Odometer Speedometer
1 Induction line
1 Accessory
