Description:

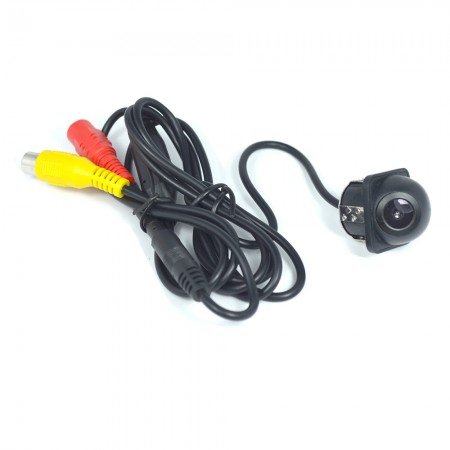

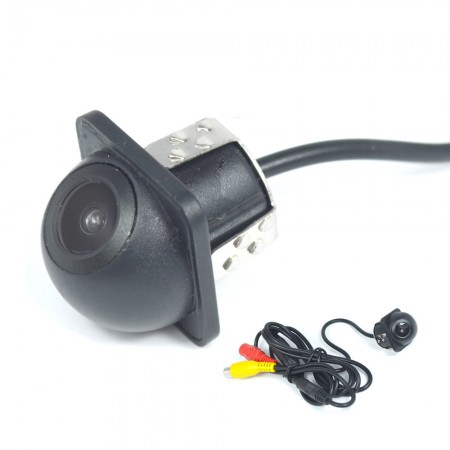

360 degree full direction Universal Car Camera can be installed as rear/front view at different position of your car.
The lens can be rotated manually to the right direction. It is waterproof and night vision functioned.
With mini size, you can easy install it at any place on your car
Features:
1. With normal and mirror view switch(The transfer between rear view and front view)
2. Special waterproof camera lens designed for car
3. Compatible with any car monitor
4. TV System: NTSC/PAL
5. Power supply : DC12V+/-10%
6. Current Consumption: Ma. 200mA
Technical Specifications:
7. TV System: NTSC/PAL
8. Effective Piel: 628×586 piels
9. Electronic Shutter: 1/50-1/100,000sec
10. Sync System: Internal
11. Resolution: 480 TV Lines
12. Lens Angle: 1.8mm/170
13. Sensor Area: 5.961mm×4.276mm
14. Video Output: 1.0Vp-p 75Ohm
15. S/N Ratio: More than 48db
16. Waterproof: Ip68
17. Minimum Illumination: 0.2Lu/F1.5(NO LED)
18. Current Consumption: No More 300mA
19. Power Supply: DC12V 10%
20. Operation Temperature: -30 ~ +60 (Rh95% MA)
21. Storage Temperature: -40 ~ +70 (Rh95% MA)
22. Other Items: Automatic white balance,Agc and BLC
Package Contains:
1 * Camera
1 * power cable
1 * Video Cable
1 * Manual
