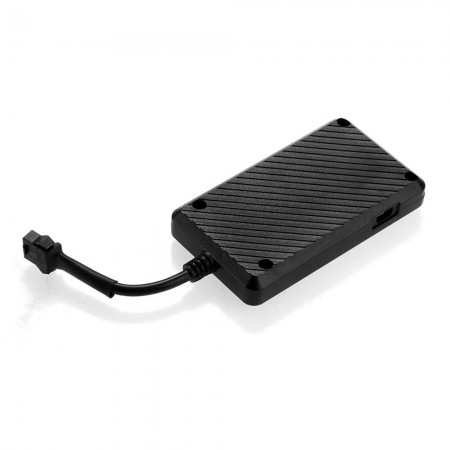

1. GSM/GPRS/GPS tracker, universal
2. Real-time tracking, remote monitoring, etc.
3. Power-off alarm: When the power is cut off, the device will send SMS alarm.
4. Motion alarm: When your vehicle moves 30 meters, the device will send SMS alarm automatically.
Color: black
Material: ABS
Package dimension: about 14.5 9 6 cm
Product dimension: about 84 47 15 mm
SIM card slot
Indicators for GPS signal, battery power, and GSM signal
Wire connection: red wire to positive pole, black wire to negative pole, yellow wire to oil and electric control cable, and green to ACC
Basic specification:
Working voltage: DC 24-80V
Network: GSM/GPRS/GPS
Network frequency: 900/1800Mhz or 850/900/1800/1900 Mhz
Chipset: UBLO
GPS module: MTK60
GPS sensitivity: -159dBm
GPS accuracy: within 50m
Locating time: cool start 45s / warm start 35s / hot start 1s
Operating temperature: -20C - +55C
Storage temperature: -40C to +85C
Humidity: 5%-95%
Functions:
1. Support number binding (up to 4 groups)
2. Support geographic location query via words
3. Remote control oil circuit and electric circuit
4. Support monitoring and electric fence. Electric fence is a range of longitude and latitude set by customer. There will be alarm when your vehicle eceeds this range.
5. Support information query, cut-off alarm, etc.
Notes:
1. Please turn off this device when installing the SIM card.
2. Please make sure that the SIM card conforms to the GSM band of device and has the service of SMS and GPRS.
3. Please place this device in an open empty area to ensure good GPS signal when positioning.
4. There may be error for positioning if GPS signal is not good or there is disturbance.
Please refer to the user guide for details.
1 GPS tracker
1 Connection wire
1 English user manual
In original package
