Features :



ALL-IN-ONE Function: Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, N Gear, Battery, Water Temperature Indicator.
LCD display: Speed, Odometer, Trip, Meter, Gear position, Fuel level and Real-time
High Temperature Resistant and Fireproof ABS Material- Safe and Environmental.
Come with wires instruction.


Size:

Length :6 7/64 " (15.5cm)

Width : 3 5/32 " (8cm)
Height : 1 37/64 : (4cm)


Display Size:(As the picture shown)
appro. 5cm(L) 3cm(W)

Color:
Black

Main Backlight:
Blue

Display:
LCD Digital

Power voltage:
DC 12V

RPM ma display:
14 1000 R/MIN

Operating temperature:
-30 ~ 80

Speed ma. Display
199km/h

Odometer distance ma display:
99999.9km

Material
ABS Housing + LCD digital display

Weight:
320g
Functions:



Speed Display( kmh/mph )
RPM Display
Fuel Level Table
Oil pressure warning light
Check engine (warning) light
Water Temperature (coolant temperature)
Show time (hours & minutes)
Metric units switch
Waterproof



Wiring instructions: (only work with 2 or 4 cylinder)



1. Orange: left turn signal light
2. Light Blue: right turn signal light
3. Dark Blue: low-high beam light
4. Blue and White: water temperature
5. Yellow and White: gasoline gauge take unit
6. Black and Yellow: speed (connected to the engine pulses)
7. Red: positive
8. Green: negative
9. Black: power switch
10. Green and Yellow: hand brake parking lights
11. Green, white magnetic induction line



Fitment :





Universal fit for all motorcycles with DC 12V

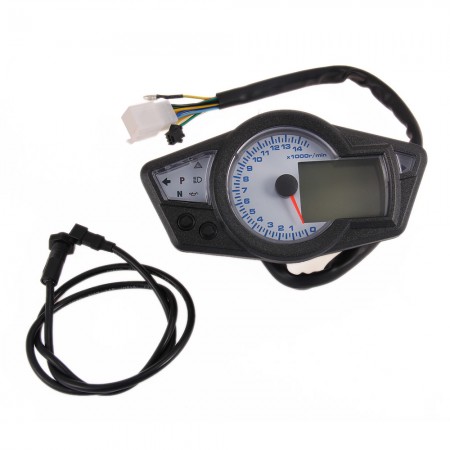

Package include:

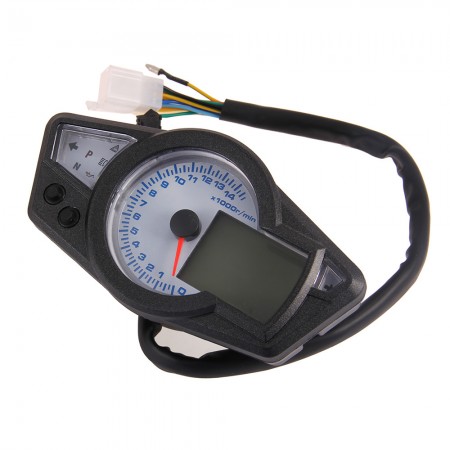

1 LCD digital Motorcycle odometer speedometer

1 sensor

1 magnetic steel







1 wiring instruction
