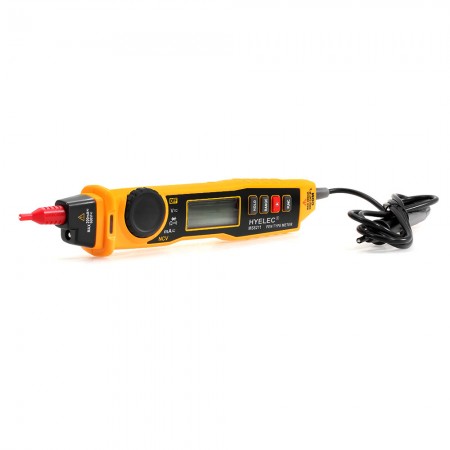

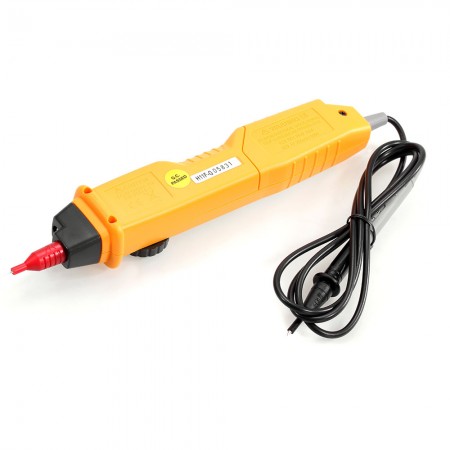

The instrument is a pen type digital multimeter. It has stable performance, high precision, low power consumption, novel structure.
Safe and reliable, it is an ideal measurement instrument for the majority of users.
The instrument can measure DC voltage, AC voltage, DC current, AC current, resistance, diode and connectivity; with non contact voltage detection function, timely remind users to pay attention to the operation safety and allow users to use more safely and assuredly.
DC Voltage
200mV/2V/20V/200V0.5%reading+3
600V0.8%reading+5
AC Voltage
2V/20V/200V0.8%reading+3
600V1%reading+5
DC Current
20mA/200mA 1.8%reading+5)
AC Current
20mA/200mA 2.0%reading+5)
Resistance
200/2K/20K/200K/2M1.0%reading+3)
20M 1.2%reading+15)
Lighting and display backlighting
Non-contact voltage sensor (NCV)
Data Hold
Automatic and manual range
Automatic shutdown
Power 21.5V AAA
CE ETL CAT. 1000V safety rating
Package Includes:
Digital Multimeters * 1
Instructions * 1
Admission package * 1
