Feature
High performance
necessity for life
Brand new and high quality.
Convenient and easy to use.

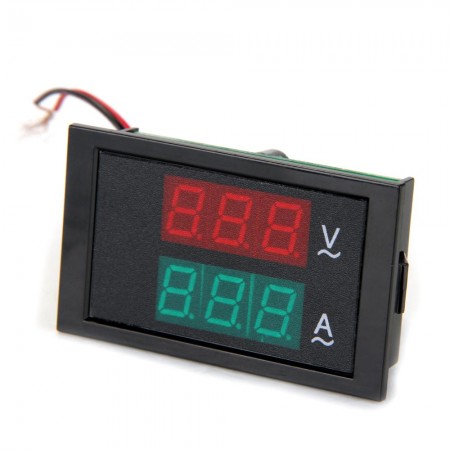

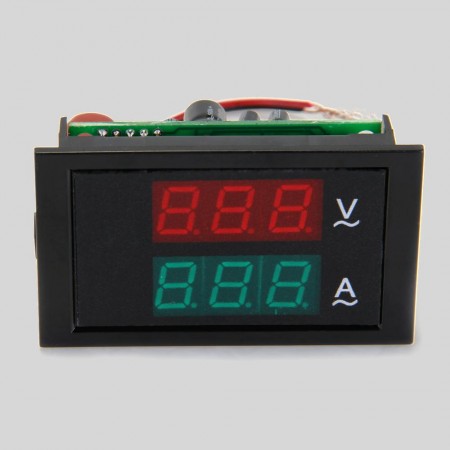

Item Description
Measurement range: AC Voltage: AC 80-300V
AC Current: AC 1-50A
Accuracy: 1%
Display: LCD screen display (Screen visual dimension: 43 25 mm)
Power consumption: < 0.2VA
Measurement speed: twice per second
Eterior dimension: 70 40 32 mm
Mounting hole dimension: 68 38 mm
The mutual inductor can be installed according to the actual measurement.
Wiring: red wire to positive, black wire to negative
Use and connection method:
1. Connect voltage to be measured to 1 and 2 cable port on lower left corner of voltmeter.
2. When measurement current is more than 99.9A, please connect eternal mutual inductor as picture 1. Connect secondary port of current mutual inductor to 3 and 4 wire port on top left of voltmeter.
4. When measurement current is from 0.2 to 99.9A, please connect built-in mutual inductor as picture 2. Thread wire to measure circuit through round hole on right. The direction is chosen acording to your need. You can thread through round hole below voltmeter or over it. And measurement results will be different.
Package Content
1 Voltmeter
