DMM + Lu Meter + Humidity Meter + Sound Level Meter + Thermometer
20%-95% RH 40-100 dB 40000 LU -4-1832F 0-200 KHz 0-100 uF
LED / Sound Warning shows you where to plug the test leads
Built-in Temperature & Humidity Sensors show you the environmental temperature and humidity
Blue LED Back-lit LCD display

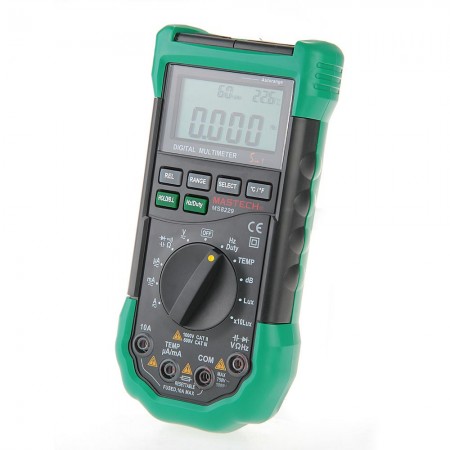

MS8229 5in1 Digital Multimeter
Features:
Secondary injection molding case
Auto range
Data hold
Relative value measurement
Audion hFE test: 0 ~ 1000
Continuity test
Diode test
Background light
Automatic shutdown
Display: 3999 - Maimum number of display, character height 14mm
Technical parameters:
DC voltage: 0.4/4/40/400/1000V 0.7%
AC voltage: 0.4/4/40/400V 0.8%; 750V 1.0%
DC current: 400/4000/40m/400mA 1.2%, 4A/10A 2.0%
AC current: 400/4000/40m/400mA 1.5%, 4A/10A 3.0%
Resistance: 400/4k/40k/400k/4M 1.0%, 40M 2.0%
Capacitance: 40n/400n/4/40/100F 3.0%
Frequency: 10/100/1k/10k/100kHz 2.0%
Duty ratio: 0.1% ~ 99.9% 3.0%
Temperature: -20 ~ 0 5.0% 0 ~ 400 1.0% 400 ~ 1000 2.0%
Humidity: 20% ~ 95% RH 5.0% RH
Illumination: 4000Lu/40000Lu 5.0%
Noise: 35 ~ 100dB 3.5% dB (94dB 1KHz sine wave)
Power: 1.5V (AAA) 3 (not included)
Dimensions: 195 92 55mm

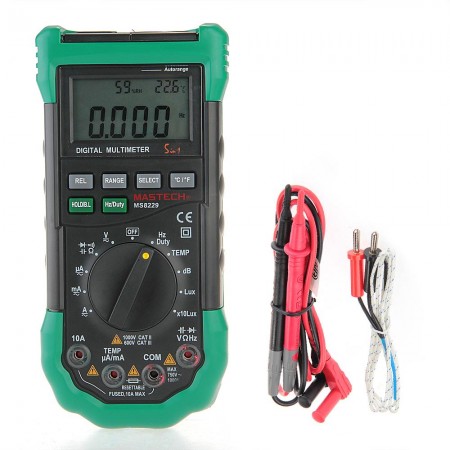

1 Multimeter
2 Test pen (Red + Black)
1 Test line
1 English user manual
In original package
20%-95% RH 40-100 dB 40000 LU -4-1832F 0-200 KHz 0-100 uF
LED / Sound Warning shows you where to plug the test leads
Built-in Temperature & Humidity Sensors show you the environmental temperature and humidity
Blue LED Back-lit LCD display
MS8229 5in1 Digital Multimeter
Features:
Secondary injection molding case
Auto range
Data hold
Relative value measurement
Audion hFE test: 0 ~ 1000
Continuity test
Diode test
Background light
Automatic shutdown
Display: 3999 - Maimum number of display, character height 14mm
Technical parameters:
DC voltage: 0.4/4/40/400/1000V 0.7%
AC voltage: 0.4/4/40/400V 0.8%; 750V 1.0%
DC current: 400/4000/40m/400mA 1.2%, 4A/10A 2.0%
AC current: 400/4000/40m/400mA 1.5%, 4A/10A 3.0%
Resistance: 400/4k/40k/400k/4M 1.0%, 40M 2.0%
Capacitance: 40n/400n/4/40/100F 3.0%
Frequency: 10/100/1k/10k/100kHz 2.0%
Duty ratio: 0.1% ~ 99.9% 3.0%
Temperature: -20 ~ 0 5.0% 0 ~ 400 1.0% 400 ~ 1000 2.0%
Humidity: 20% ~ 95% RH 5.0% RH
Illumination: 4000Lu/40000Lu 5.0%
Noise: 35 ~ 100dB 3.5% dB (94dB 1KHz sine wave)
Power: 1.5V (AAA) 3 (not included)
Dimensions: 195 92 55mm
1 Multimeter
2 Test pen (Red + Black)
1 Test line
1 English user manual
In original package
