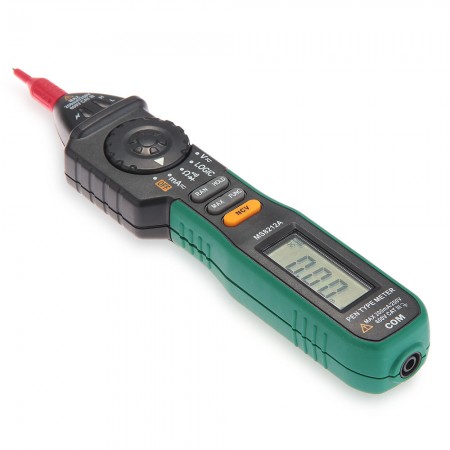

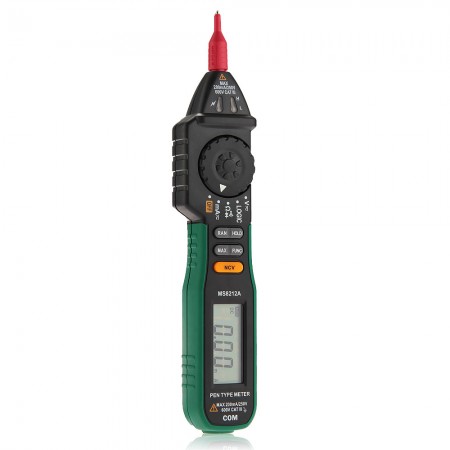

This meter is a portable professional measuring instrument with beautiful LCD digital display, easy for reading.
- Switch for one-hand operation measurement, with overload protection and low battery indication, suitable for factories, schools, fans and families.
- This instrument has auto ranging and manual ranging function.
- This instrument has an automatic shutdown feature.
- This meter has reading hold function and maimum measurement hold function.
- When in use, the display shows the measured value of the instrument and the unit symbol.
Auto range and manual range.
The maimum allowed voltage between the measuring end and the earth: 600V DC or AC
For height: Maimum 2000m
Technical parameters:
Maimum display value : 1999
DC voltage: 200m/2/20/200/600V 0.7%
AC voltage: 200m/2/20/200/600V 0.8%
Resistance: 200/2K/20k/200k/2M/20 M 1.2%
DC current: 20m/200mA 1.5%
AC current: 20m/200mA 2.0%
Operating temperature: 0 ~ 40
Storage temperature: -10 ~ 50
Power: 1.5V (AAA) × 2 ( not included )
Size: 208 × 38 × 29mm
Packaging configurations:
MS8212A host a
Pen a
One pair of English manual for a
A canvas bag
1 Multimeter
1 Test lead
1 pair Alligator clip
1 Canvas bag
1 English manual
In color bo package
- Switch for one-hand operation measurement, with overload protection and low battery indication, suitable for factories, schools, fans and families.
- This instrument has auto ranging and manual ranging function.
- This instrument has an automatic shutdown feature.
- This meter has reading hold function and maimum measurement hold function.
- When in use, the display shows the measured value of the instrument and the unit symbol.
Auto range and manual range.
The maimum allowed voltage between the measuring end and the earth: 600V DC or AC
For height: Maimum 2000m
Technical parameters:
Maimum display value : 1999
DC voltage: 200m/2/20/200/600V 0.7%
AC voltage: 200m/2/20/200/600V 0.8%
Resistance: 200/2K/20k/200k/2M/20 M 1.2%
DC current: 20m/200mA 1.5%
AC current: 20m/200mA 2.0%
Operating temperature: 0 ~ 40
Storage temperature: -10 ~ 50
Power: 1.5V (AAA) × 2 ( not included )
Size: 208 × 38 × 29mm
Packaging configurations:
MS8212A host a
Pen a
One pair of English manual for a
A canvas bag
1 Multimeter
1 Test lead
1 pair Alligator clip
1 Canvas bag
1 English manual
In color bo package
