Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
Display: 4000 counts with analog bar LCD display.
Maximum voltage between terminals and earth ground: DC 1000V or AC 750V.
Over range protection for all ranges.
Reading hold function.
Square value measuring function. (at AC A and AC V range)
Maximum & minimum value measuring function.
Converte rate: 3 times/sec.
Bar graph: 30 times/sec.
Auto power off.
Continuity test.
Diode test.
MAX. diameter for conductor: 26mm.

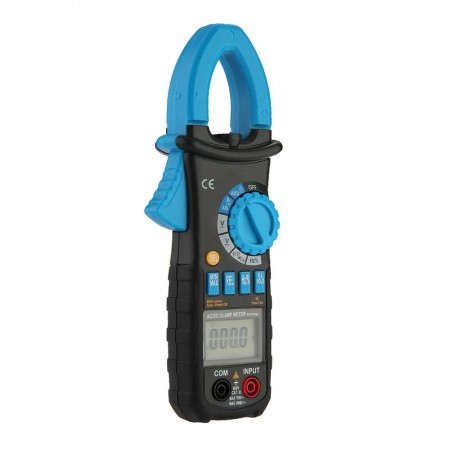

Model: ACM03
Double Insulation: Protection class CAT III 600V and pollution degree 2
Display: 4000 counts
DC Voltage Accuracy
400mV / 4V / 40V / 400V / 1000V ± 0.8%
AC Voltage Accuracy
4V / 40V / 400V / 750V ± 1.0%
DC Current Accuracy
40A / 400A ± 2%
AC Current Accuracy
40A / 400A ± 2%
Resistance Accuracy
400Ω / 4kΩ / 40kΩ / 400kΩ ± 0.8%, 4MΩ / 40MΩ ± 1.2%
Capacitance
40nF / 400nF / 4μF / 40μF / 400μF / 4000μF ± 4%
Frequency Accuracy
10Hz / 100Hz / 1KHz / 10kHz / 100kHz / 1MHz / 10MHz ± 1%, 10 ~10KHz ± 2%
Duty Cycle: 0.1% ~ 99.9% ± 3%
Operating Temperature: 0℃ ~ 40℃ (32°F ~ 104°F)
Storage Temperture: -10℃ ~ 50℃ (10°F ~ 122°F)
MAX. Diameter for Jaw: 26mm
Dimension: 208mm x 78mm x 35mm
Power: 1.5V (AAA) x 3 (not included)
Weight: 340g

1 x Clamp meter

1 x Protect case

1 x User manual
