Click on the image to view the original image
1.Display: 4000 counts
2.Auto Ranging;Sound / light warning when plug inserted incorrectly
3.REL Relative measurement. Diode 2.7V Continuity Buzzer <50
4.Data Hold;Display Backlight
5.True RMS True root mean square measurement;NCV Non-contact voltage detector;Inrush Inrush current measurement;USB interface Windows OS

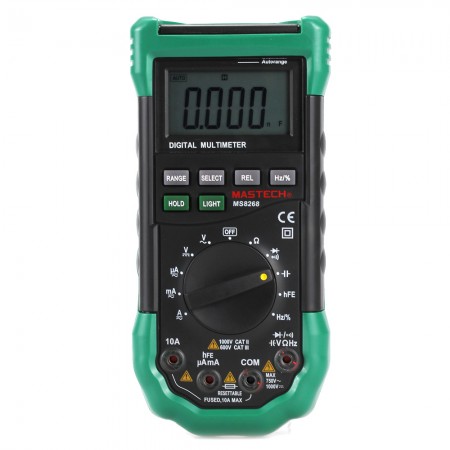

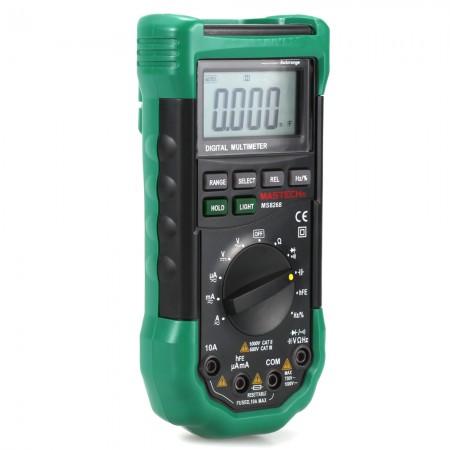

Model: MS8268
Specification:
Specification Range Accuracy
DC Voltage
400mV/4V/40V/400V/1000V (0.7% +2)
AC Voltage
400mV/4V/40V/400V/750V (0.8% +3)
DC Current
400µA/4000µA/40mA/400mA (1.2% +3)
10A (2.0 % +5)
AC Current
400µA/4000µA/40mA/400mA (1.5 % +5)
10A (3.0 % +7)
Resistance
400/4k/40K/400K/4M (1.2% +2)
40M (2.0% +5)
Capacitance
4nF/40nF/400nF/4µF/40µF/200µF (3% +3)
Frequency 0~ 200KHz (2.0% +5)
Duty Cycle 5%~ 95% (2% +2)
General:
Power Supply: 3×1.5V AAA (without batteries)
Product Size: 195×92×55mm7.7×3.6×2.2 inch
Product Weight: 380g/0.81b
Category: CAT II 1000V & CAT III 600V C E
1 Multimeter
1 pair of probe pens
1 Fitting
1 English manual
Color bo packaging
