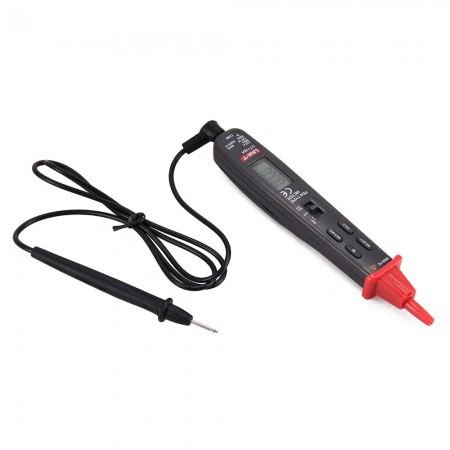

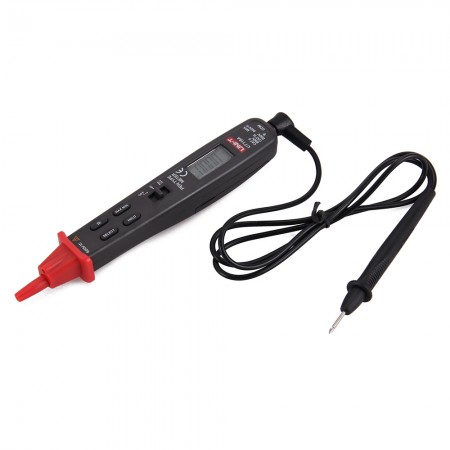

Click on the image to view the original image
UT118 series Pen multimeter with a 3000 count functions, the whole circuit design with dedicated high performance multimeter IC as the core, with intelligent, high precision and high performance of the characteristics, to complete the measurement or test; AC / DC (AC / DC) voltage, EF function (UT118B type), resistors, diodes, continuity, capacitance and other parameters.
It has double insulation protection.
Suitable for families, schools, metallurgy, communications, manufacturing, oil, defense, power, chemical and other industries, is the ideal tool for circuit / electrical equipment maintenance and repair.
Specifications
Range
Best Accuracy
Model
SCAN Mode
AUTO Mode
UT118A
DC Voltage (V)
3V/30V/300V
3V/30V/300V
(1%+3)
AC Voltage (V)
3V/30V/300V
3V/30V/300V
(1%+4)
Resistance ()
300/3k/30k/300k/3M
300/3k/30k/300k/3M/30M
(1%+3)
Capacitance (F)
3nF/30nF/300nF/3F/30F/300F
3nF/30nF/300nF/3F/30F/300F/3mF
(3%+5)
Features
Display Count
3000
Auto Range
Diode
Auto Power Off
Around 10 Minutes
Continuity Buzzer
Low Battery Indication
Data Hold
MA Mode
MIN Mode
LCD Backlight
Penlight
Input Impedance for DCV
10M
General Characteristic
Power
3V Li-MnO2 Cion Cell Battery
LCD Size
28mm×14mm
Product Color
Red and Grey
Product Net Weight
90g
Product Size
20mm×27mm×182mm
Standard Accessories
Battery, Test Lead
Standard Individual Packing
Blister, English Manual
Standard Quantity Per Carton
80 PCs
Standard Carton Measurement
570mm×300mm×415mm (0.071 CBM Per Eport Carton)
Standard Carton Gross Weight
12.5Kg
1 Pen multimeter
1 Test Lead
1 English manual
