Home > Products > PS-303DM Ma 30V3A hard power adjustable DC power supply accuracy of 0.001

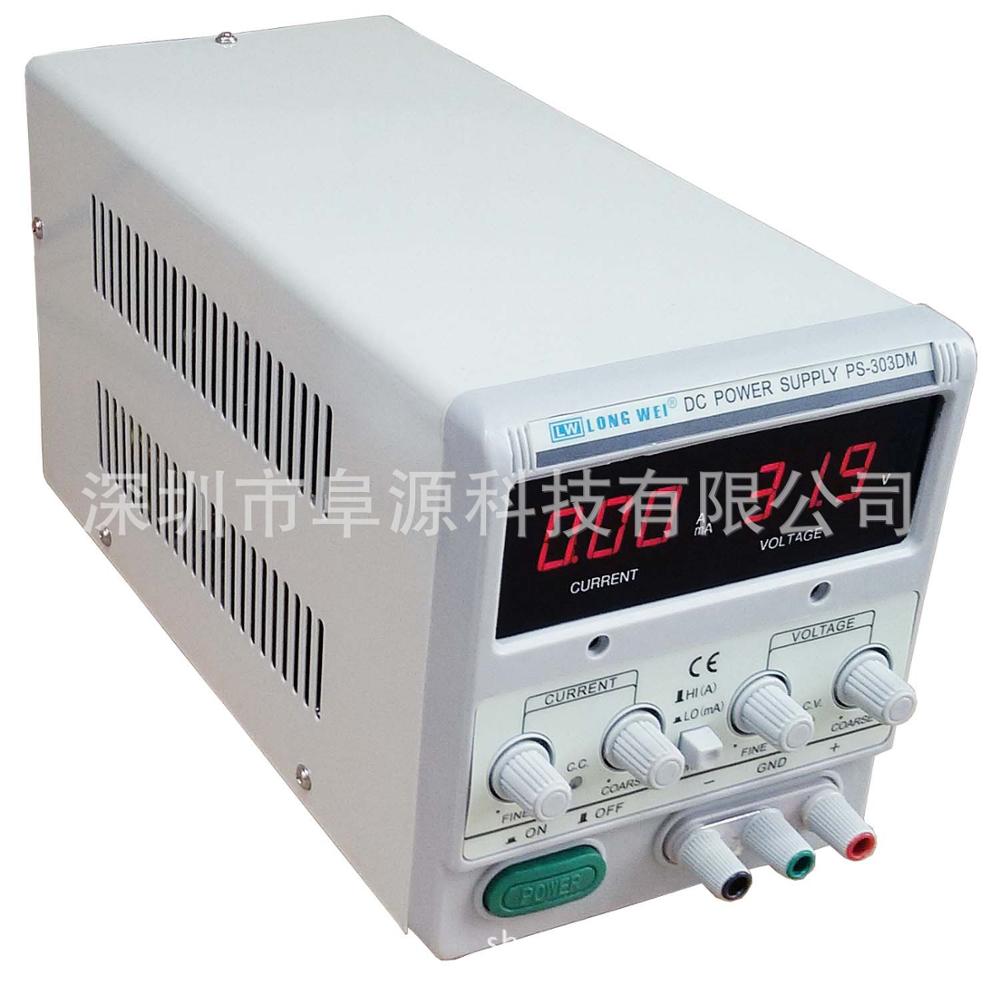

PS-303DM Ma 30V3A hard power adjustable DC power supply accuracy of 0.001
Click on the image to view the original image
Product： views：8PS-303DM Ma 30V3A hard power adjustable DC power supply accuracy of 0.001
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:49
  Negotiated
Product Details
Overview
Quick Details
Input Voltage:
220V (V)
Output Voltage:
0-30 (V)
Output Power:
360 (W)
Output Current:
0-3 (A)
brand:
Long Wei
model:
PS-303DM
type:
Continuous conduction type DC voltage regulator
frequency range:
50Hz + 2Hz
working temperature:
-10 C -40 C
Working humidity:
Less than or equal to 90%
Product certification:
CE
Nominal capacity:
90W
insulation resistance:
20 (M)
Outline dimension:
270*128*145mm
Supply Ability
Supply Ability:
999999 Piece/Pieces per Year
Phase number:single-phase
response time:0.1s
efficiency:More than 90%
Processing customization:yes

  • PS-303DM features:

    1 single output, high precision, high reliability, lowRippleAnd noise

    2 3LED digital display voltage and current values,With Ma

    3 with voltage/The current coarse adjustment and fine adjustment knob, can adjust the voltage accuracy/Current value

    4 constant voltage and constant current operation mode, can be automatically converted

    5 with current limit protection

    6 ecellent quality, affordable price

    Application range:

    1 used in teaching eperiment, scientific research

    2 used in the testing and aging of electronic production line

    3 for coMmunication equipment maintenance

    4 other areas requiring DC regulated power supply

    technical parameter

    Input voltage:AC220V/110V + 10% /60Hz 50Hz

    Working temperature:-10 C -40 Crelative humidity<90%

    Storage temperature:-10 C -70 Crelative humidity<80%

    Steady state voltage stabilityLess than 0.01%+3mV

    Load stabilityLess than 0.01%+5mV

    recovery timeLess than 100US

    ripple noiseLess than 1mVrms

    temperature coefficientC = 300PPM/

    Current status: current stabilityLess than 0.2%+3mA

    Load stabilityLess than 0.2%+3mA

    Vp-pLess than 3mArms(effective value)

  • model

    PS-302DM

    PS-303DM

    PS-305DM

    output voltage

    0-30V

    0-30V

    0-30V

    Output current(A)

    0-2A

    0-3A

    0-5A

    Output current(MA)

    0-990mA

    0-990mA

    0-990mA

    weight

    about4.5Kg

    about4.5Kg

    about5KG

    Size length*wide*(highMm)

    270*128*145Mm

    270*128*145Mm

    270*128*145Mm

  • model

    PS-6402DM

    PS-6403DM

    output voltage

    0-64V

    0-64V

    Output current(A)

    0-2A

    0-3A

    Output currentmA)

    0-990mA

    0-990mA

    weight

    about4.5Kg

    about5.5Kg

    Size length*wide*(highMm)

    270*128*145Mm

    270*128*145mm

  • The above chassis style chassis as the following figure, other models, please contact the inquiry, another factory to receive customized orders, the maimum output voltage 200V, current 250A
