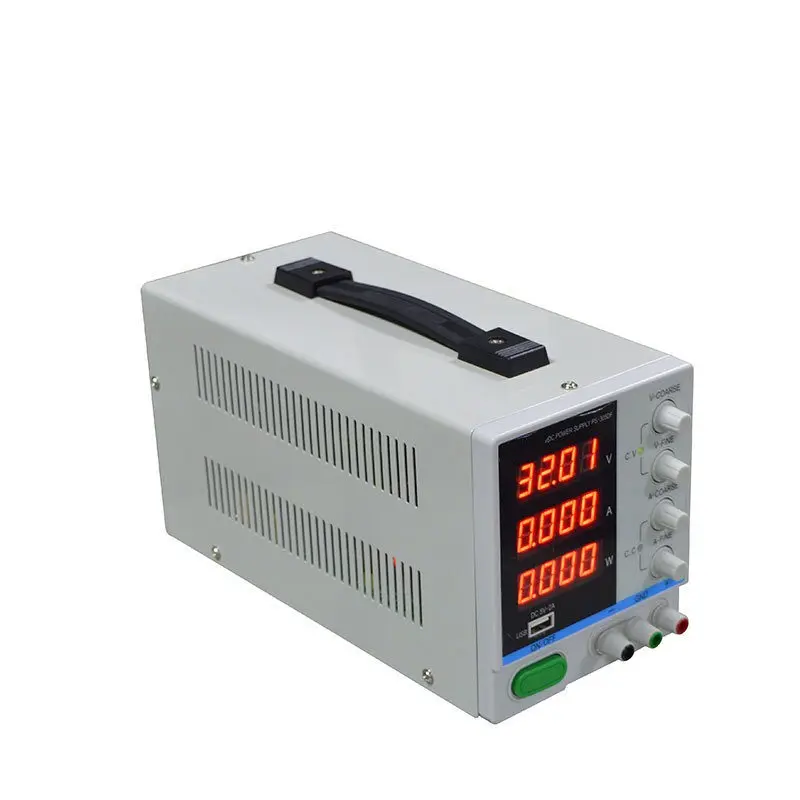

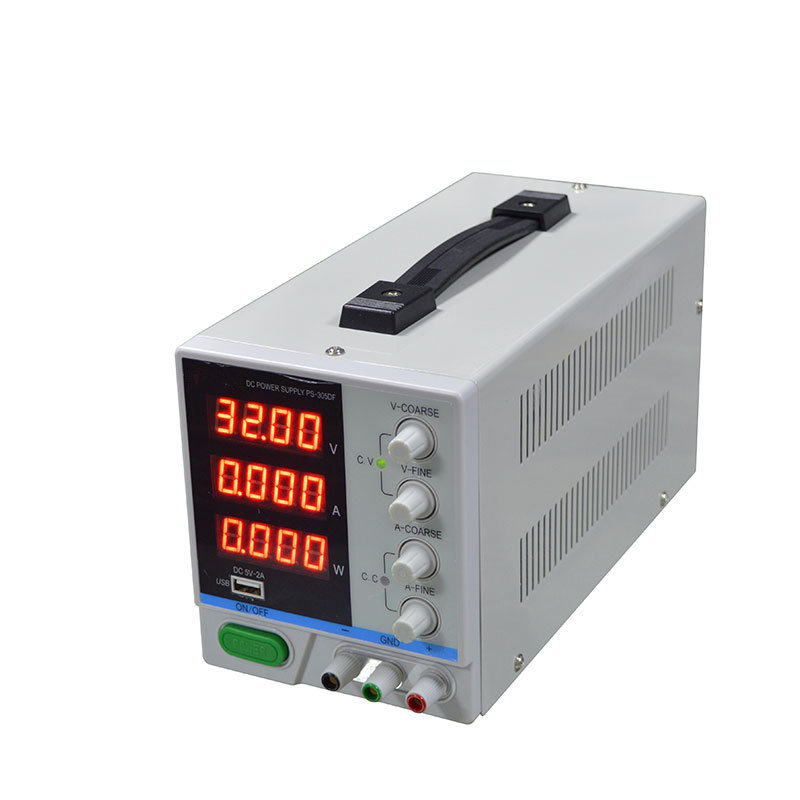

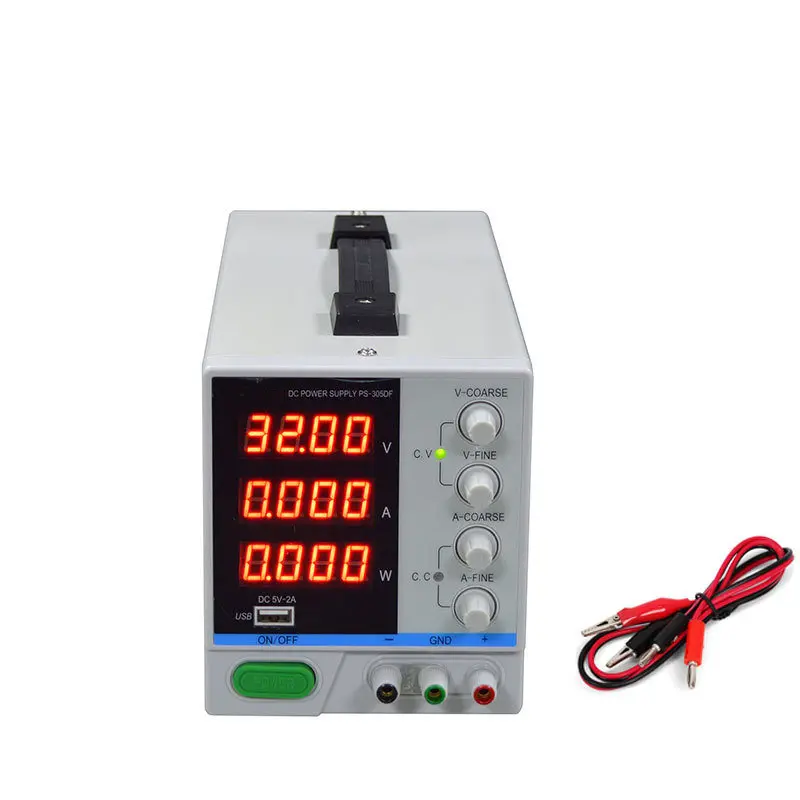

30V5A certificate PS-305DF regulated power supply testing and maintenance of plating car power supply
Click on the image to view the original image
Product： views：730V5A certificate PS-305DF regulated power supply testing and maintenance of plating car power supply
Branch： OEM
Size： 35X23X25 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:49
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
OEM
Model Number:
PS-305DF
Input Voltage:
220V (V)
Output Voltage:
0-30 (V)
Output Power:
60 (W)
Output Frequency:
1
Output Current:
0-5 (A)
brand:
Long Wei
model:
PS-305DF
type:
Continuous conduction type DC voltage regulator
frequency range:
50Hz + 2Hz
working temperature:
-10 C -40 C
Working humidity:
Less than or equal to 90%
Product certification:
CE
Nominal capacity:
150VA
insulation resistance:
20 (M)
Outline dimension:
270*128*145mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X23X25 cm
Single gross weight:
5.0 kg
Package Type:
BOX
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)7To be negotiated


Phase number:single-phase
response time:0.1s
efficiency:More than 90%
Processing customization:yes



  • PS-305DF features:0-5A0-30V adjustable



    characteristic



    1 single output, high precision, high reliability, lowRippleAnd noise

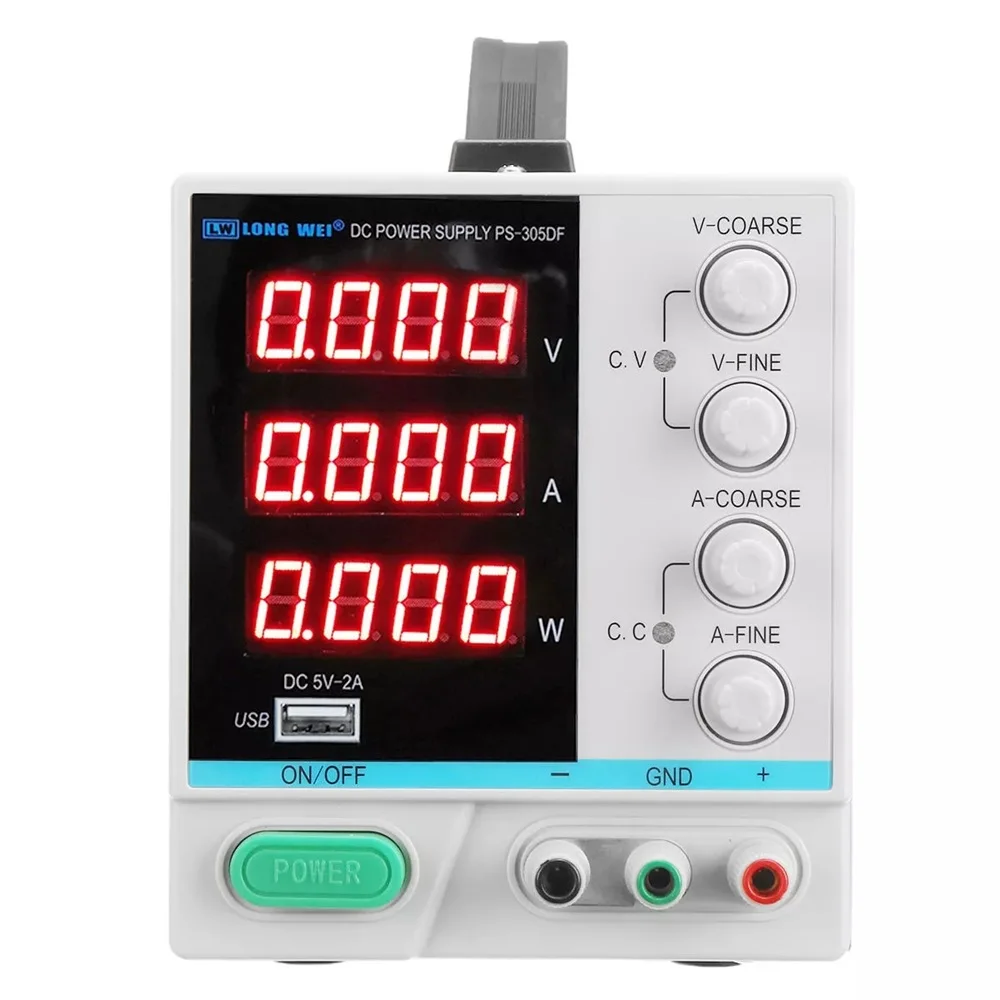

    Two4LEDnumberhigh-precisionDisplay voltage and current values

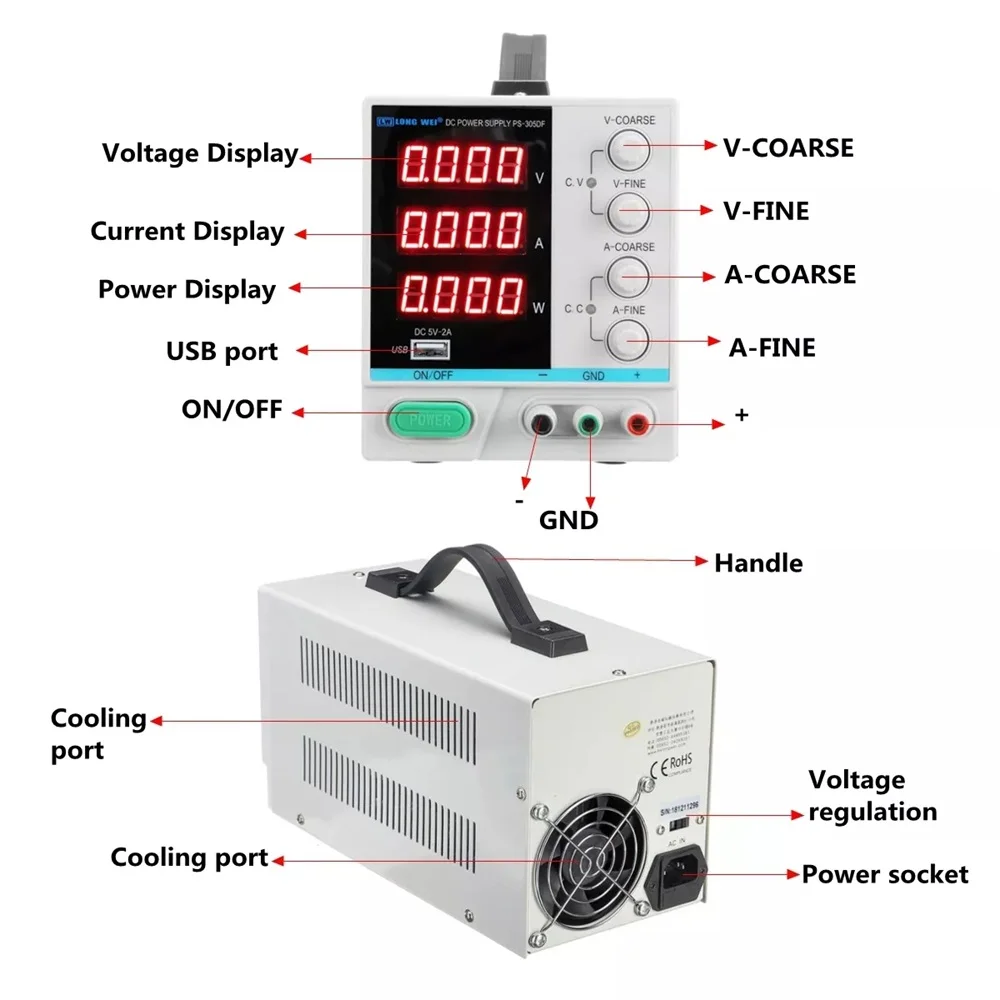

    3 with voltage/The current coarse adjustment and fine adjustment knob, can adjust the voltage accuracy/Current value



    4 constant voltage and constant current operation mode, can be automatically converted



    5 with current limit protection



    6 ecellent quality, affordable price







    Application range:



    1 used in teaching eperiment, scientific research



    2 used in the testing and aging of electronic production line



    3 for coMmunication equipment maintenance



    4 other areas requiring DC regulated power supply







    Technical parameter:

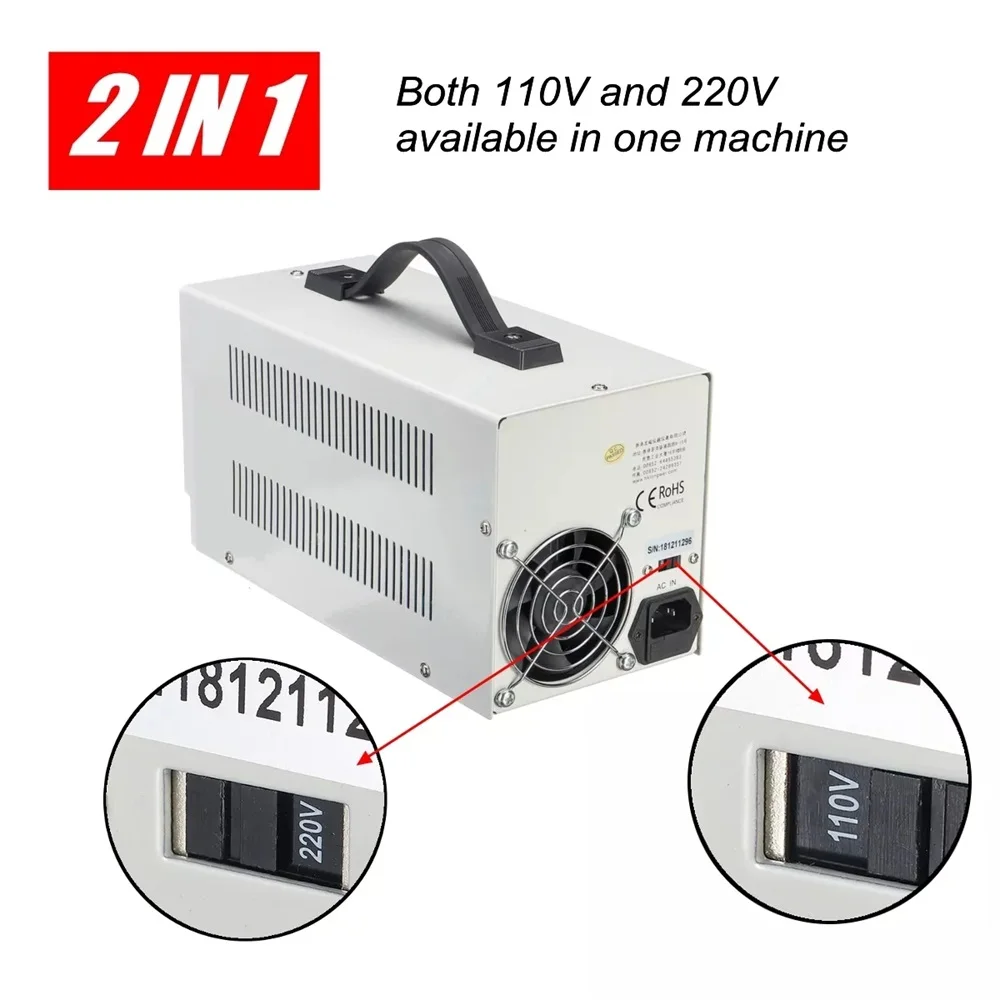

    Input voltage:AC220V/110V + 10% /60Hz 50Hz



    Working temperature:-10 C -40 Crelative humidity<90%



    Storage temperature:-10 C -70 Crelative humidity<80%



    Steady state voltage stabilityLess than or equal to 0.01%+3mV



    Load stabilityLess than 0.01%+5mV



    recovery timeLess than 100US



    ripple noiseLess than 1mVrms



    temperature coefficientC = 300PPM/



    Current status: current stabilityLess than or equal to 0.2%+3mA



    Load stabilityLess than 0.2%+3mA



    Vp-pLess than 3mArms(effective value)



    Voltage resolution:10mV



    Current resolution:1mA



    model

    PS-302DF

    PS-303DF

    PS-305DF

    output voltage

    0-30V

    0-30V

    0-30V

    Output current

    0-2A

    0-3A

    0-5A

    weight

    about4.5Kg

    about4.5Kg

    about5.5KG

    Size length*wide*(highMm)

    270*128*145Mm

    270*128*145Mm

    270*128*145Mm







    model

    PS-6402DF

    PS-6403DF

    output voltage

    0-64V

    0-64V

    Output current

    0-2A

    0-3A

    weight

    about5.5Kg

    about6Kg

    Size length*wide*(highMm)

    270*128*145Mm

    270*128*145mm
