Shenzhen Glory Line Co., Ltd.

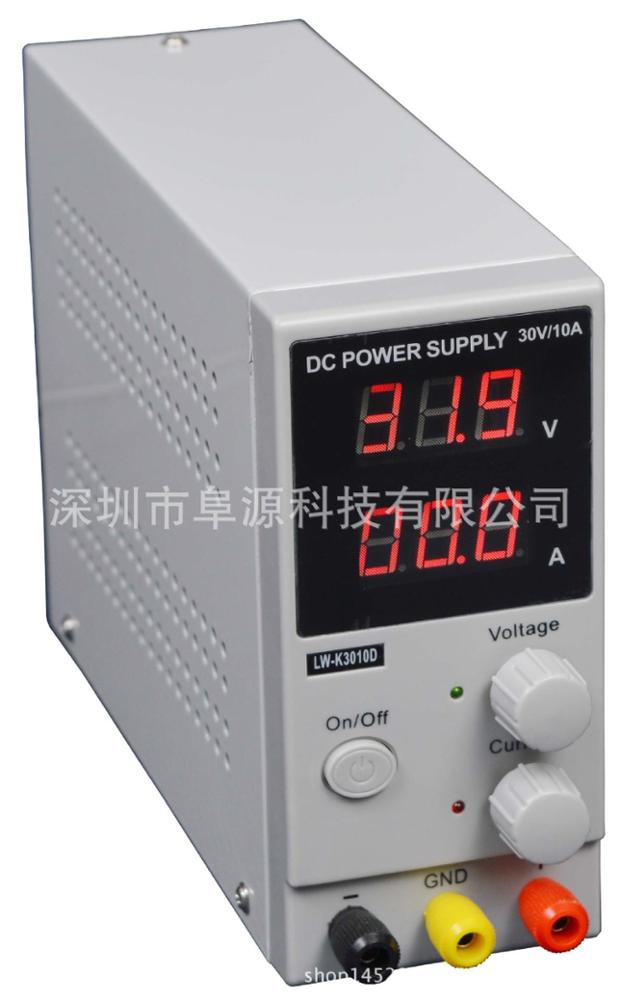

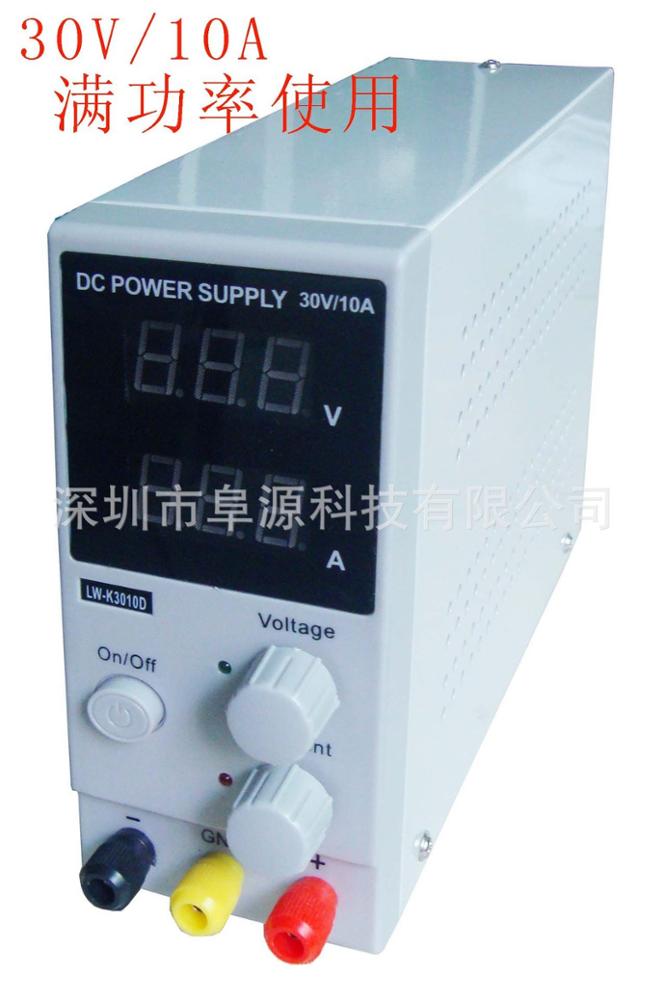

LW-K3010D:0-30V/0-10A

characteristic

1 high precision LED digital display, intuitive and clear.

2.8 cm intelligent fan, cooling effect is ecellent, effectively etend the life of the fan, reduce noise.

3 the use of advanced technology to effectively reduce the weight of the power supply, easy to move.

4 multiple protection functions, current limit protection (OCP), over temperature protection (OTP), over power protection (OPP).

5 plastic panels, more beautiful, the voltage and current setting coarse and fine adjustment knob to set more precise.

Application domain:

1 battery charging.

2 car DVD, car audio.

3 product aging, such as resistors, capacitors, relays, DC motors, LED, etc..

4 laboratories, factories, power supply for maintenance.

5 other things that need DC power supply.

Technical parameter:

Line voltage: 200-240VAC, 50Hz-60Hz

Input current (in 220VAC, full load):0.6A

Output voltage range: 0-30V

Output current range: 0-10A

Voltage display accuracy: + 0.5%

Current display accuracy: + 0.5%

Efficiency: > 85%

Voltage regulation

Load regulation degree (10-100%):50mV

Line voltage regulation (200-240VAC):20mV

Ripple and noise (P-P):50mV

Current regulation

Load regulation degree (10-100%):20mA

Line voltage regulation (200-240VAC):20mA

Ripple and noise (P-P):20mA

other

Operating environment: -10 C to + 60 C / to 30%RH 90% RH

Body size: 7 (W) 16 (high) 22 (deep) cm

Package size: 12 (W) 21 (high) 28 (deep) cm

Weight: 1.6kg (including packaging)

Only the bare metal: 1.3KG, lightweight, beautiful appearance, strong carrying capacity
