Shenzhen Glory Line Co., Ltd.

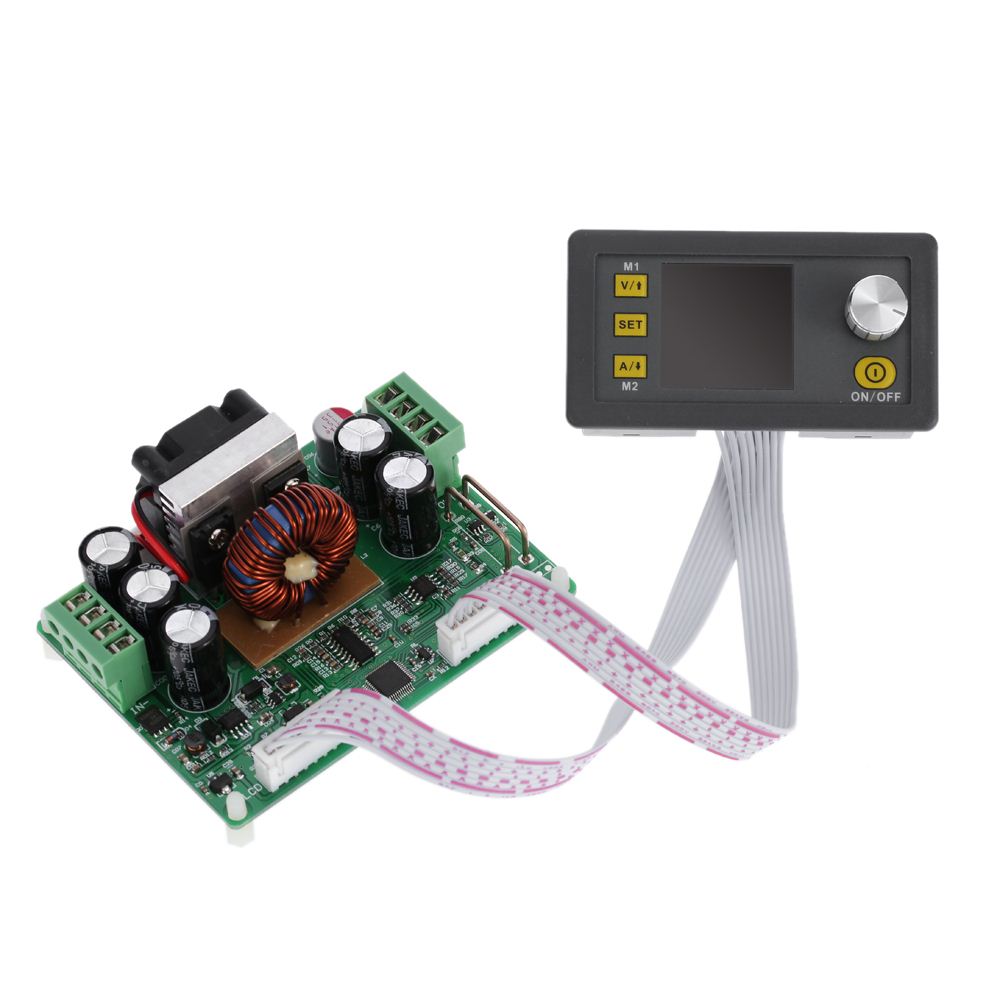

LCD Digital Programmable Constant Voltage Current Step-down Power Supply Module DC 0-32.00V/0-12.00A

This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one. This module has power-down stored function that it can store 10 groups of preset values and extract 2 groups of stored values. With LCD display, user can view the preset voltage/current, output voltage/current, output power, input voltage, etc. This product, with small size, advanced functions, good visual effect, high operability, and high precision, can not only be used independently, but also inset into the device for wide application range.

Features:
Fast operation for voltage and current settings.
Make analog integration and digital control functions combined in one.
Adjustable output voltage range from 0V-32V, adjustable output current range from 0-12.00A.
Set default boot open or close the output.
The module can storage 10 groups of preset values and it can quickly extract 2 groups of preset values.
LCD display and voltage/current meter function, you can view the preset voltage/current, input voltage, output voltage/current, output power, etc.
In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.
With advanced functions, high accuracy, wide application, the item is really practical for use.

Note:
1. It is better to make the input voltage lower than the Max. value, otherwise the item maybe be damaged.
2. Please ensure that the input voltage is higher than output voltage above 1.1 times. Notice heat dissipation under high current operation.
3. Please connect the connecting wire(between display module and power module) correctly, or it can not work normally.

Specifications:
Model Type: DPS3012
Input Voltage: DC6-40V
Output Voltage: 0-32.00V
Output Current: 0-12.00A
Output Power: 0-384W
Voltage Resolution: 0.01V
Voltage Resolution: 0.01A
IN+: Input Positive
IN-: Input Negative
OUT+: Output Positive
OUT-: Output Negative
Connecting Wire Length: 200mm / 7.87in
Display Module Size: 80 * 42 * 45mm / 3.1 * 1.7 * 1.8in
Display Module Weight: 65-88g / 2.32-3.1oz
Power Module Size: 93 * 71 * 41mm / 3.66 * 2.8 * 1.6in
Power Module Weight: 118g / 4.16oz
Package Size: 15 * 12 * 6cm / 5.9 * 4.72 * 2.36in
Package Weight: 232g / 8.19oz

Package List:
1 * Display Module
1 * Power Module
1 * User Manual (English)
