- Model Number:
- Capacitor
- Material:
- Plastic + Copper
- Color:
- Yellow + Grey
- Place of Origin:
- China (Mainland)
- is_customized:
- Yes
- Display:
- 1.5" LCD Screen
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

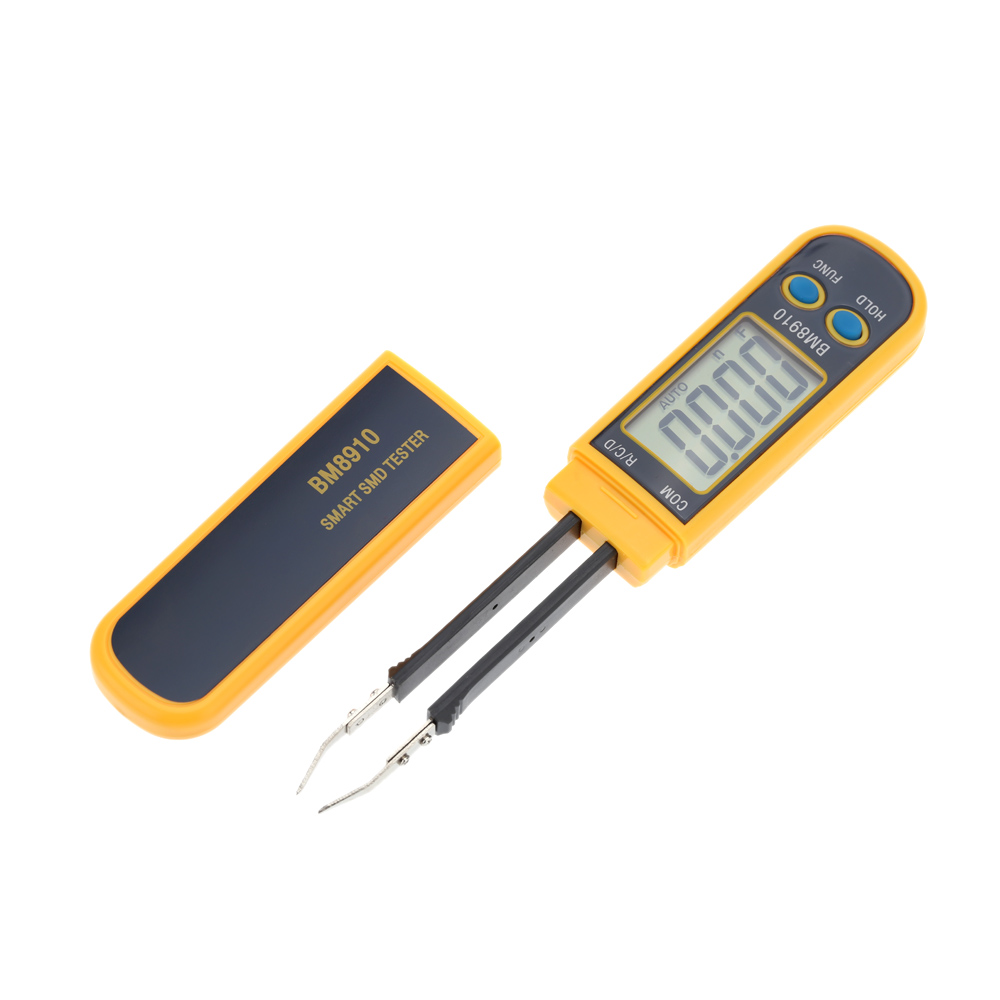

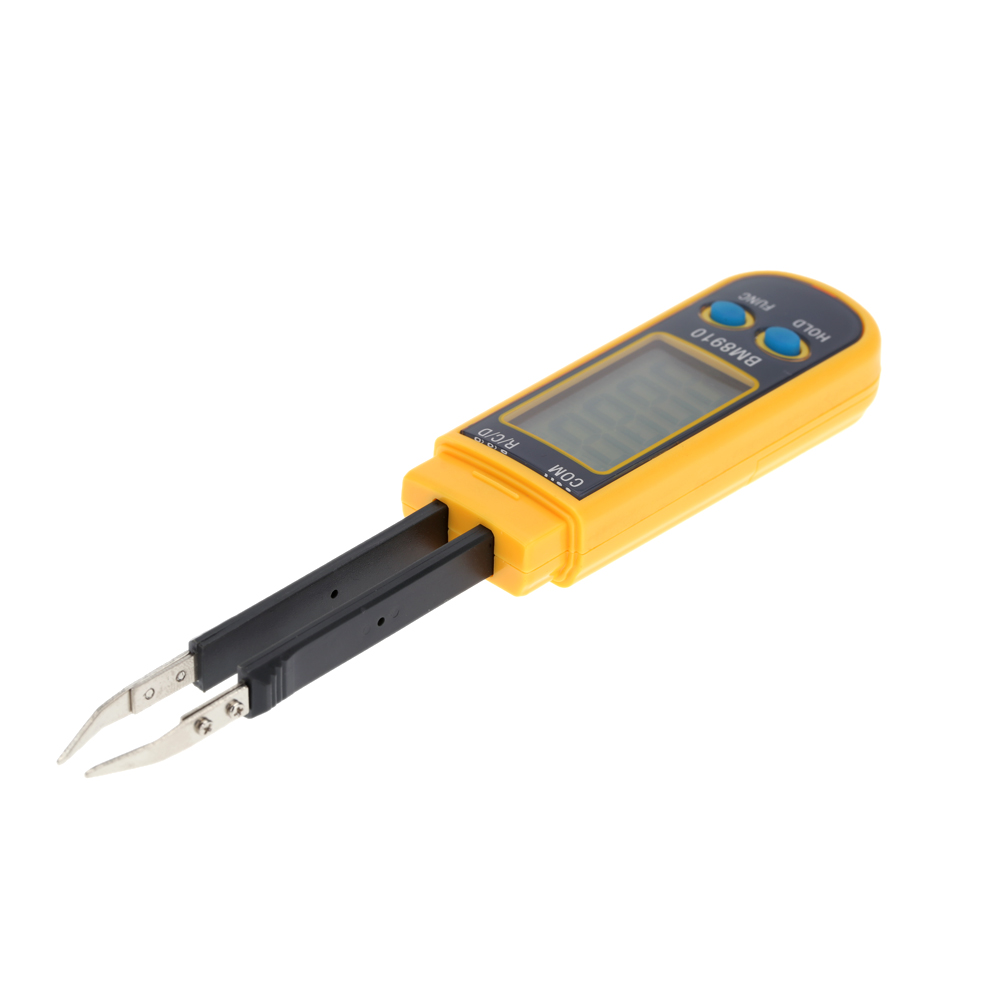

Handheld Smart SMD Tester Tweezers Resistor Capacitor Diode Intelligent Testing Clips
The meter is a handheld and battery-powered small tool, which is specially applied to identify resistor, capacitor and diode. Besides, it is displayed by large LCD and it will be off automatically after 10 minutes if no button is pushed during this period.
Features:
1.5" large LCD screen, displays up to 2999.
Automatic resistor/capacitor/diode scanning.
"FUNC" button is used to select the testing mode manually.
Data holding and overload indication functions.
Battery under-voltage indication.
Automatically turn off: turn off automatically 10 minutes.
Specifications:
Color: Yellow + Grey
Material: Plastic + Copper
Display: 1.5" LCD Screen
Resistor: 300/3k/30k/300k (1%rdg+5dgt); 3M/30M (2%rdg+5dgt)
Capacitor: 3nF/30nF/300nF/3uF/30uF/300uF (3%rdg+5dgt); 3mF/30mF (5%rdg+5dgt)
Diode: Open Circuit Voltage: 2.8V, Testing Current: 1mA
Power Supply: 1 * 3V CR2032 Battery (NOT included)
Working Temperature and Humidity: 0-40C(32-104F) <80%RH
Storage Temperature and Humidity: 0-50C(32-122F) <85%RH
Dimension: 172 * 32 * 17mm / 6.77 * 1.26 * 0.67in (L * W * H)
Product Weight: 64g / 2.27oz
Package Size: 20.7 * 14.8 * 2cm / 8.15 * 5.83 * 0.79in (L * W * H)
Package Weight: 109g / 3.84oz
Package List:
1 * SMD Tester
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
5. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
