Shenzhen Glory Line Co., Ltd.

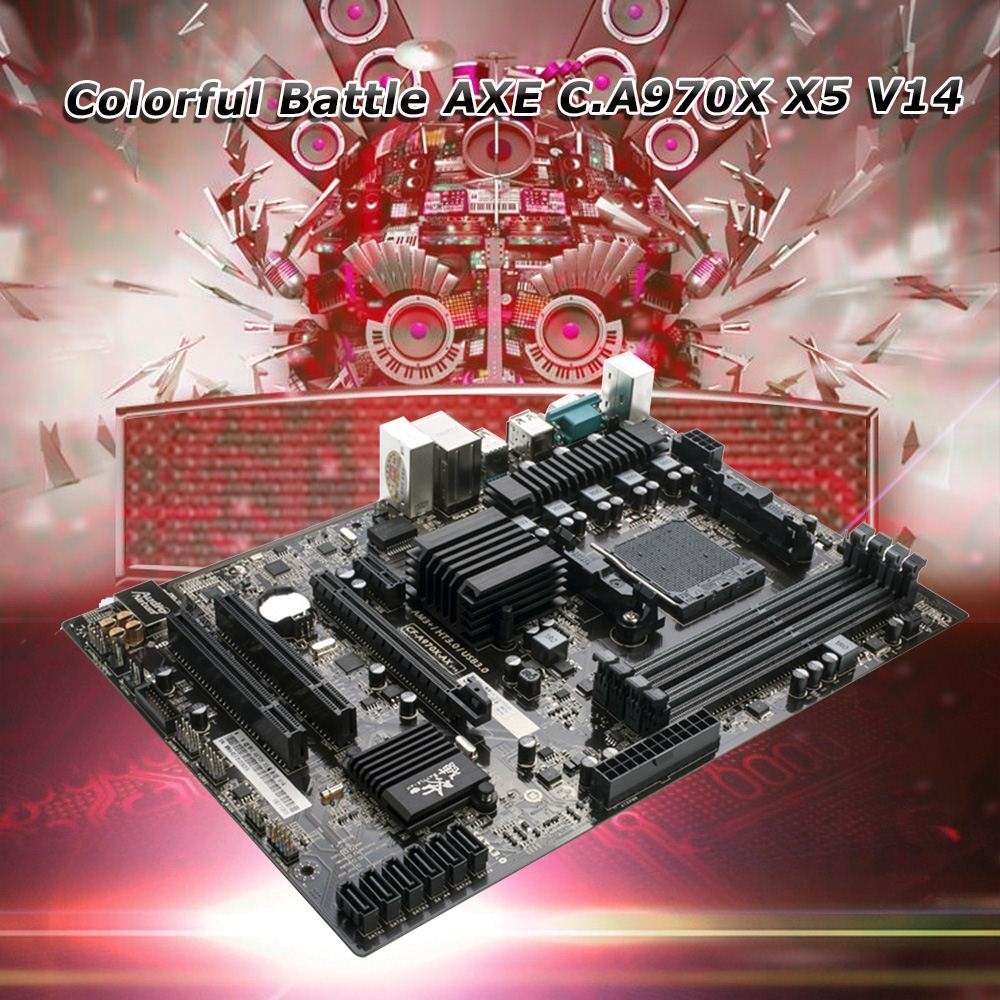

Colorful Battle AXE C.A970X X5 V14 Motherboard Computer Mainboard Systemboard for AMD AM3(+) DDR3 SATA3.0 USB3.0 ATX for Desktop

The Battle AXE C.A970X X5 V14 is designed to offer the greatest quality sound resolution and sound expansion via Audio Nature Technology. It is equipped with two memory slots and support dual channel DDR3 memory, and support for AMD AM3/AM3+ series processors based on for AMD RX970 + SB950 chipset, delivering the great performance enchantment to system and ultimate scalability hardware expending.

Features:
Supports for AMD AM3+/ AM3 Processor
Based on for AMD RX970 + SB950 chipset and support for AMD AM3/AM3+ series processors (TDP: 125W), delivering better overclocking capabilities with less power consumption.

Audio Nature
High quality audio capacity with LED trace path lighting deliver the greatest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Dual Channel DDR3
Two memory slots, support dual channel DDR3 1866(OC)/1600/1333/1066MHz memory.

Super Speed USB3.0
High speed USB 3.0 ports with theoretical transfer speed up to 5.0 Gbps, backwards compatibility with USB2.0.

SATA3.0 6Gb/s
High-speed SATA Revision 3.0 compatible, delivering super fast 6Gbps link speeds which twice the data transfer rates to SATA 2.0 (3Gbps).

Anti-static IC chip
Equipped with high quality anti-static IC chip to provide better protection and lower the electrostatic threat.

LAN Port
Onboard RTL8111F 1000M LAN deliver better network responsiveness.

FCC Ferrite Core Chokes
Equipped with ferrite core chokes which offer superior performance and prolong usage life.

Strict Selected
Be texted in extreme temperature for 7 * 24 hours and selected through a strict filtering process.

Specifications:
Brand: Colorful
Model: Battle AXE C.A970X X5 V14
Chipset: for AMD RX970 + SB950 chipset
Processor: support for AMD AM3/AM3+ series processors(TDP: 125W)
Memory: 4 * memory slots, support DDR3 dual channel 1866(OC)/1600/1333/1066MHz memory
Board I/O: 1 * COM, 8 * USB2.0 (4 at back panel, 4 at mid-board), 4 * USB3.0 ports (2 at back panel, 2 at mid-board), 2 * PS/2 ports, 3 audio ports (6-CH audio support); 6 * SATA 3 ports, support RAID 0,1,10,5, RJ45 LAN
Expansion slots: 1 * PCI Express 2.0 x16 slot, 1 * PCI Express 2.0 x1 slot, 2 * PCI slots
SATA ports: 6 * SATA3.0 6Gb/s, support AHCI/RAID0,1,5,10
BIOS: 32M UEFI
Power management: 5 phase power supply,TDP<=125W processors supported
Hardware monitor: CPU fan speed controlled, SYSTEM fan speed monitoring, CPU temperature monitoring, system temperature monitoring, voltage monitoring
LAN: onboard RTL8111F 1000M LAN
Audio: ALC662-VD
Configuration: 205 * 295mm ATX / 80.7 * 116.14in ATX
Other Features: Colorful Netlive4.0,PXE
Package size: 27 * 26 * 5.7cm / 10.62 * 10.23 * 2.24in (L * W * H)
Package weight: 650g / 1.43lb

Package List:
1 * motherboard
2 * SATA cables
1 * CD driver
1 * IO shield
1 * User manual (Chinese)
